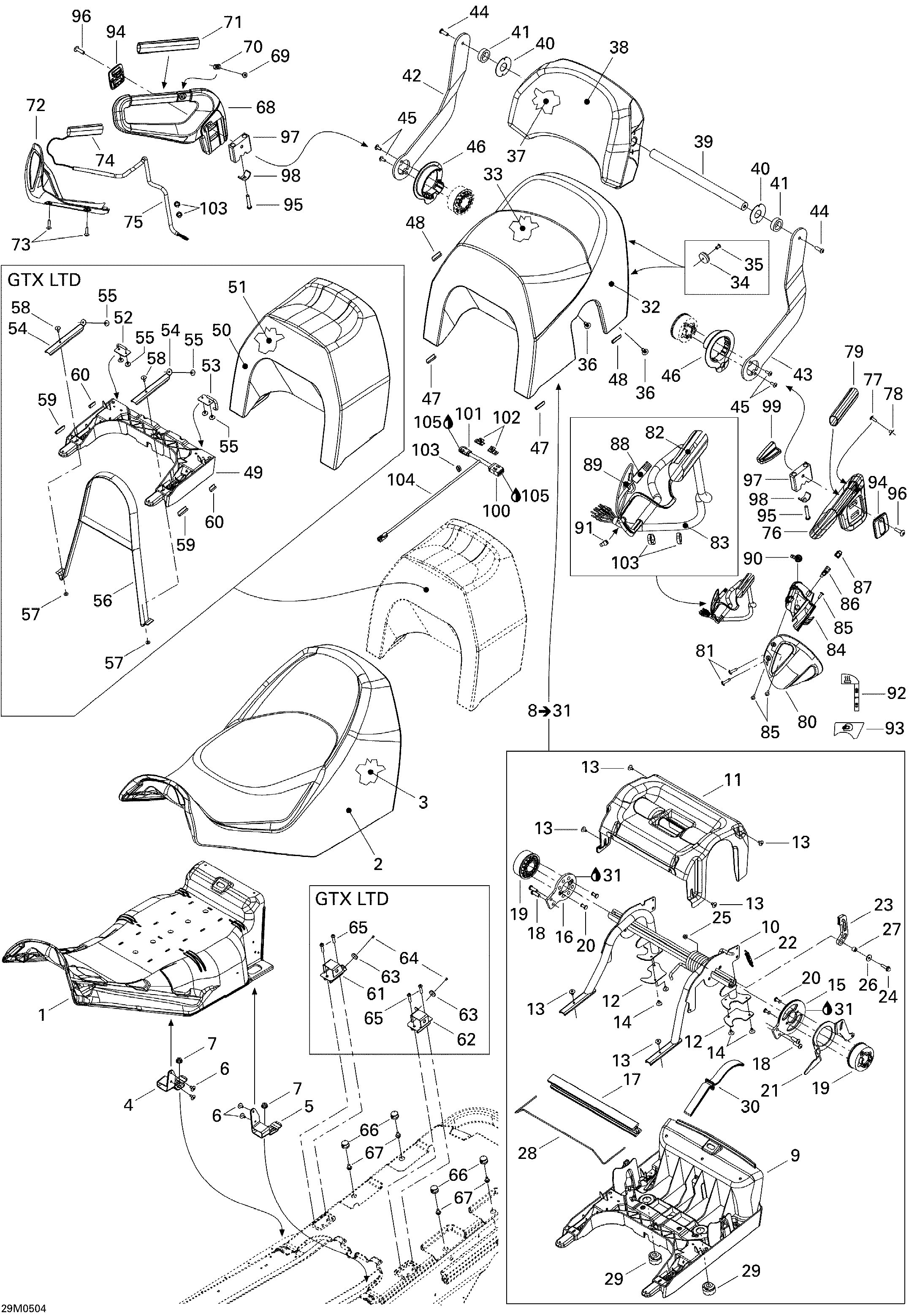

09- Seat 800HO для BRP Ski-Doo GTX 800 HO - 2005
-
№АртикулНазвание
-
1510004353 Front Seat BaseFront Seat Base
-
2510004354 Front Seat Cover, Earth Grey B-207. GTX LTD, Earth Grey B-207Front Seat Cover, Earth Grey B-207. GTX LTD, Earth Grey B-207
-
2510004545 Front Seat Cover, Slate Grey B-242. GTX LTD, Slate Grey B-242Front Seat Cover, Slate Grey B-242. GTX LTD, Slate Grey B-242
-
3510004355 Front Seat FoamFront Seat Foam
-
4510004463 RH Fixation Plate, BlackRH Fixation Plate, Black
-
5510004464 LH Fixation Plate, BlackLH Fixation Plate, Black
-
6293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
7233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
9510004433 Rear Seat BaseRear Seat Base
-
10510004381 SupportSupport
-
11510004423 Foam SupportFoam Support
-
12510004500 Wear PlateWear Plate
-
13293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
14293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
15510004391 SprocketSprocket
-
16510004393 Link PlateLink Plate
-
17510004394 Link TubeLink Tube
-
18205982586 Socket Head Screw S.grip, M8x1.25x25Socket Head Screw S.grip, M8x1.25x25
-
19510004390 SpacerSpacer
-
20293150129 Steel RivetSteel Rivet
-
21510004385 Handle, BlackHandle, Black
-
22510004395 Handle SpringHandle Spring
-
23510004392 Adjustement PivotAdjustement Pivot
-
24207662544 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
25233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
26224061201 Flat WasherFlat Washer
-
27510004425 BushingBushing
-
28510004421 Anchor SpringAnchor Spring
-
29708000323 Rubber BumperRubber Bumper
-
30510004495 Release BeltRelease Belt
-
31293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
32510004357 Rear Seat Cover, Earth Grey B-207. GTX LTD, Earth Grey B-207Rear Seat Cover, Earth Grey B-207. GTX LTD, Earth Grey B-207
-
32510004552 Rear Seat Cover, Slate Grey B-242. GTX LTD, Slate Grey B-242Rear Seat Cover, Slate Grey B-242. GTX LTD, Slate Grey B-242
-
33510004358 Rear Seat FoamRear Seat Foam
-
34415018100 Rubber StopperRubber Stopper
-
35390400700 Pop Rivet 1/8'', BlackPop Rivet 1/8'', Black
-
36293730010 Dart, BlackDart, Black
-
37510004365 Backrest FoamBackrest Foam
-
38510004366 Backrest Cover, Earth Grey B-207. GTX LTD, Earth Grey B-207Backrest Cover, Earth Grey B-207. GTX LTD, Earth Grey B-207
-
38510004553 Backrest Cover, Slate Grey B-242. GTX LTD, Slate Grey B-242Backrest Cover, Slate Grey B-242. GTX LTD, Slate Grey B-242
-
39510004377 Upper Backrest AxleUpper Backrest Axle
-
40510004379 WasherWasher
-
41510004378 Rubber ShimRubber Shim
-
42510004373 RH Arm, BlackRH Arm, Black
-
43510004375 LH Arm, BlackLH Arm, Black
-
44205982586 Socket Head Screw S.grip, M8x1.25x25Socket Head Screw S.grip, M8x1.25x25
-
45250000198 Torx Truss Screw M8 X 16Torx Truss Screw M8 X 16
-
46510004384 SpacerSpacer
-
47510004610 Front Seat CornerFront Seat Corner
-
48510004611 Rear Seat CornerRear Seat Corner
-
49510004435 Seat Base. GTX LTDSeat Base. GTX LTD
-
50510004360 Central Seat Cover, Earth Grey B-207. GTX LTD, Earth Grey B-207Central Seat Cover, Earth Grey B-207. GTX LTD, Earth Grey B-207
-
50510004561 Central Seat Cover, Slate Grey B-242. GTX LTD, Slate Grey B-242Central Seat Cover, Slate Grey B-242. GTX LTD, Slate Grey B-242
-
51510004361 Central Seat Foam. GTX LTDCentral Seat Foam. GTX LTD
-
52510004458 RH Rod, Black. GTX LTDRH Rod, Black. GTX LTD
-
53510004459 LH Rod, Black. GTX LTDLH Rod, Black. GTX LTD
-
54510004527 Reinforcement, Black. GTX LTDReinforcement, Black. GTX LTD
-
55293150104 Pop Rivet 3/16''. GTX LTDPop Rivet 3/16''. GTX LTD
-
56510004438 Seat Belt. GTX LTDSeat Belt. GTX LTD
-
57517225900 Flat Washer. GTX LTDFlat Washer. GTX LTD
-
58390409600 Pop Rivet 3/16''. GTX LTDPop Rivet 3/16''. GTX LTD
-
59510004610 Front Seat Corner. GTX LTDFront Seat Corner. GTX LTD
-
60510004611 Rear Seat Corner. GTX LTDRear Seat Corner. GTX LTD
-
61510004439 RH Fixation Plate, Black. GTX LTDRH Fixation Plate, Black. GTX LTD
-
62510004460 LH Fixation Plate, Black. GTX LTDLH Fixation Plate, Black. GTX LTD
-
63415018100 Rubber Stopper. GTX LTDRubber Stopper. GTX LTD
-
64390400700 Pop Rivet 1/8'', Black. GTX LTDPop Rivet 1/8'', Black. GTX LTD
-
65250000128 Torx Screw M6 X 20. GTX LTDTorx Screw M6 X 20. GTX LTD
-
66510004417 Seat Stud. GTX LTDSeat Stud. GTX LTD
-
67207561044 Hex. Flanged Screw S.grip M6 X 10. GTX LTDHex. Flanged Screw S.grip M6 X 10. GTX LTD
-
68510004367 RH HandleRH Handle
-
69250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
70293100003 Nut M6Nut M6
-
71510004449 Handle GripHandle Grip
-
72510004415 RH DeflectorRH Deflector
-
73250000199 Screw 25mmScrew 25mm
-
74515176240 HeaterHeater
-
75515175506 TubingTubing
-
76510004368 LH HandleLH Handle
-
77250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
78293100003 Nut M6Nut M6
-
79510004449 Handle GripHandle Grip
-
80510004416 LH DeflectorLH Deflector
-
81250000199 Screw 25mmScrew 25mm
-
82515176240 HeaterHeater
-
83515175506 TubingTubing
-
84510004457 Switch Housing. GTX LTDSwitch Housing. GTX LTD
-
85250000146 Torx Screw K50 X 16Torx Screw K50 X 16
-
86510004413 Rocker SwitchRocker Switch
-
87510004414 Protector SwitchProtector Switch
-
88515176241 LH Handle HarnessLH Handle Harness
-
89515176261 Visor Plug Harness. GTX LTDVisor Plug Harness. GTX LTD
-
90572103300 Cap. GTX LTDCap. GTX LTD
-
91414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
92516002835 Handle Heater DecalHandle Heater Decal
-
93516002836 Visor Decal. GTX LTDVisor Decal. GTX LTD
-
94510004405 MouldingMoulding
-
95250000220 Socket Head Screw M8x45Socket Head Screw M8x45
-
96250000197 Torx Truss Screw M8 X 30Torx Truss Screw M8 X 30
-
97510004530 Handle LinkHandle Link
-
98510004565 Handle ClampHandle Clamp
-
99510004419 GripGrip
-
100515175817 Male Terminal Housing, 8 CircuitsMale Terminal Housing, 8 Circuits
-
101515175494 Male Terminal Housing, 3 CircuitsMale Terminal Housing, 3 Circuits
-
102515175283 Housing SupportHousing Support
-
103414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
104515176170 Seat HarnessSeat Harness
-
105293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
