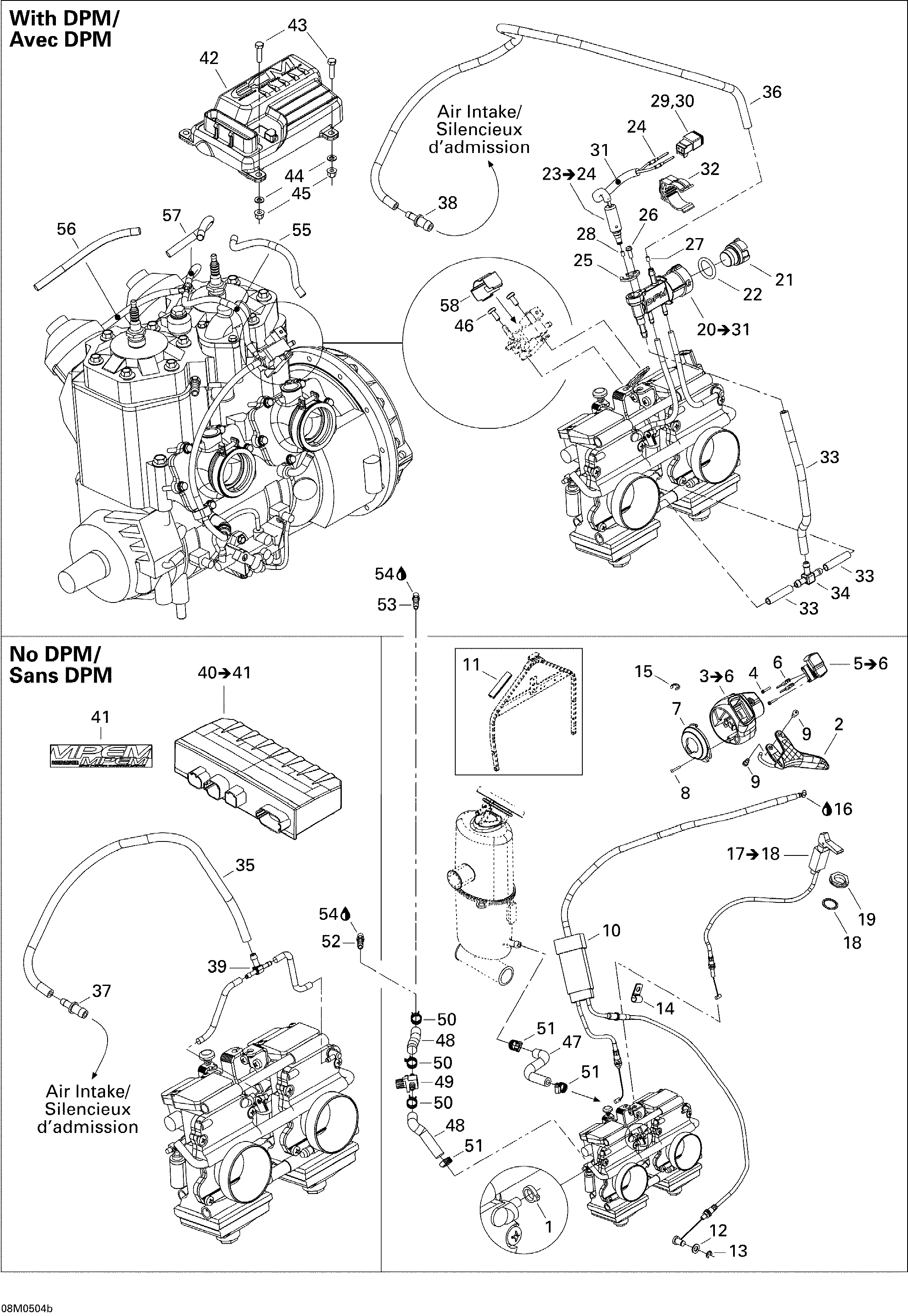

01- Engine 2, 800HO для BRP Ski-Doo GTX 800 HO - 2005

  • №
    Артикул
    Название
  • 1
    293750001 Tie-Rap 94 mm
    Tie-Rap 94 mm
  • 2
    512059891 Handle Ass'Y
    Handle Ass'Y
  • 3
    512060001 Housing Throttle Ass'y. Includes 3 to 6
    Housing Throttle Ass'y. Includes 3 to 6
  • 4
    250000098 Phillips Screw M2.9 X 16
    Phillips Screw M2.9 X 16
  • 5
    415128901 Kill Switch. Includes 5 to 6
    Kill Switch. Includes 5 to 6
  • 6
    515175232 Male Terminal
    Male Terminal
  • 7
    512059698 Cover
    Cover
  • 8
    250000098 Phillips Screw M2.9 X 16
    Phillips Screw M2.9 X 16
  • 9
    732601143 Flanged Screw
    Flanged Screw
  • 10
    512059879 Throttle Cable
    Throttle Cable
  • 11
    512059750 Protector
    Protector
  • 12
    234081100 Flat Washer 8 mm
    Flat Washer 8 mm
  • 13
    414753500 Circlip
    Circlip
  • 14
    414176000 Clip, Cable
    Clip, Cable
  • 15
    414274500 Circlip
    Circlip
  • 16
    293550004 Dielectric Grease, 150 g
    Dielectric Grease, 150 g
  • 17
    512059266 Choke Cable. Includes 17 to 18
    Choke Cable. Includes 17 to 18
  • 18
    394103300 Lock Washer, Interior Teeth
    Lock Washer, Interior Teeth
  • 19
    512059094 Plastic Nut
    Plastic Nut
  • 20
    512060002 Pressure Manifold Ass'y. Includes 20 to 31 / With DPM
    Pressure Manifold Ass'y. Includes 20 to 31 / With DPM
  • 21
    270600009 Cap. With DPM
    Cap. With DPM
  • 22
    293300042 O-Ring. With DPM
    O-Ring. With DPM
  • 23
    515175701 Solenoid Valve. Includes 23 to 24 / With DPM
    Solenoid Valve. Includes 23 to 24 / With DPM
  • 24
    278001665 Female Terminal. With DPM
    Female Terminal. With DPM
  • 25
    415061600 Solenoid Lock. With DPM
    Solenoid Lock. With DPM
  • 26
    241140060 Screw K40 X 10. With DPM
    Screw K40 X 10. With DPM
  • 27
    404161819 Starter Jet. With DPM
    Starter Jet. With DPM
  • 28
    404161825 Starter Jet. With DPM
    Starter Jet. With DPM
  • 29
    515175670 Female Terminal Housing, 2 Circuits. With DPM
    Female Terminal Housing, 2 Circuits. With DPM
  • 30
    515175675 Female Lock, 2 Circuits. With DPM
    Female Lock, 2 Circuits. With DPM
  • 31
    515175332 Low Temperature Tubing, Vinyl. With DPM
    Low Temperature Tubing, Vinyl. With DPM
  • 32
    512058919 Support. With DPM
    Support. With DPM
  • 33
    415080200 Line. With DPM
    Line. With DPM
  • 34
    414729300 T-Fitting. With DPM
    T-Fitting. With DPM
  • 36
    415080200 Line. With DPM
    Line. With DPM
  • 38
    293710035 Straight Fitting. With DPM
    Straight Fitting. With DPM
  • 41
    516000245 Electrical Box Decal
    Electrical Box Decal
  • 42
    512059980 Calibrated Module. 800 H.O. with DPM
    Calibrated Module. 800 H.O. with DPM
  • 43
    207152044 Hex Screw M5 X 20. 800 H.O. with DPM
    Hex Screw M5 X 20. 800 H.O. with DPM
  • 44
    234051410 Flat Washer. 800 H.O. with DPM
    Flat Washer. 800 H.O. with DPM
  • 45
    233251414 Elastic Flanged Nut M5. 800 H.O. with DPM
    Elastic Flanged Nut M5. 800 H.O. with DPM
  • 46
    208651241 Phillips Screw M5 X 12. 800 H.O. with DPM
    Phillips Screw M5 X 12. 800 H.O. with DPM
  • 47
    509000171 Hose
    Hose
  • 48
    509000093 Hose 8 mm
    Hose 8 mm
  • 49
    512059324 Valve 5/16''
    Valve 5/16''
  • 50
    414655700 Spring Clamp
    Spring Clamp
  • 51
    293650170 Tridon Hose Clamp
    Tridon Hose Clamp
  • 53
    512059970 Male Connector 1/8''-27 Npt. With DPM
    Male Connector 1/8''-27 Npt. With DPM
  • 54
    293800018 Loctite 592, Pipe Sealant, 50 ml
    Loctite 592, Pipe Sealant, 50 ml
  • 55
    409901700 Tubing, 9 mm. 800 H.O. with DPM
    Tubing, 9 mm. 800 H.O. with DPM
  • 56
    409901700 Tubing, 9 mm. 800 H.O. with DPM
    Tubing, 9 mm. 800 H.O. with DPM
  • 57
    409901700 Tubing, 9 mm. 800 H.O. with DPM
    Tubing, 9 mm. 800 H.O. with DPM
  • 58
    512059809 Heating Element Bracket. 800 H.O. with DPM
    Heating Element Bracket. 800 H.O. with DPM
