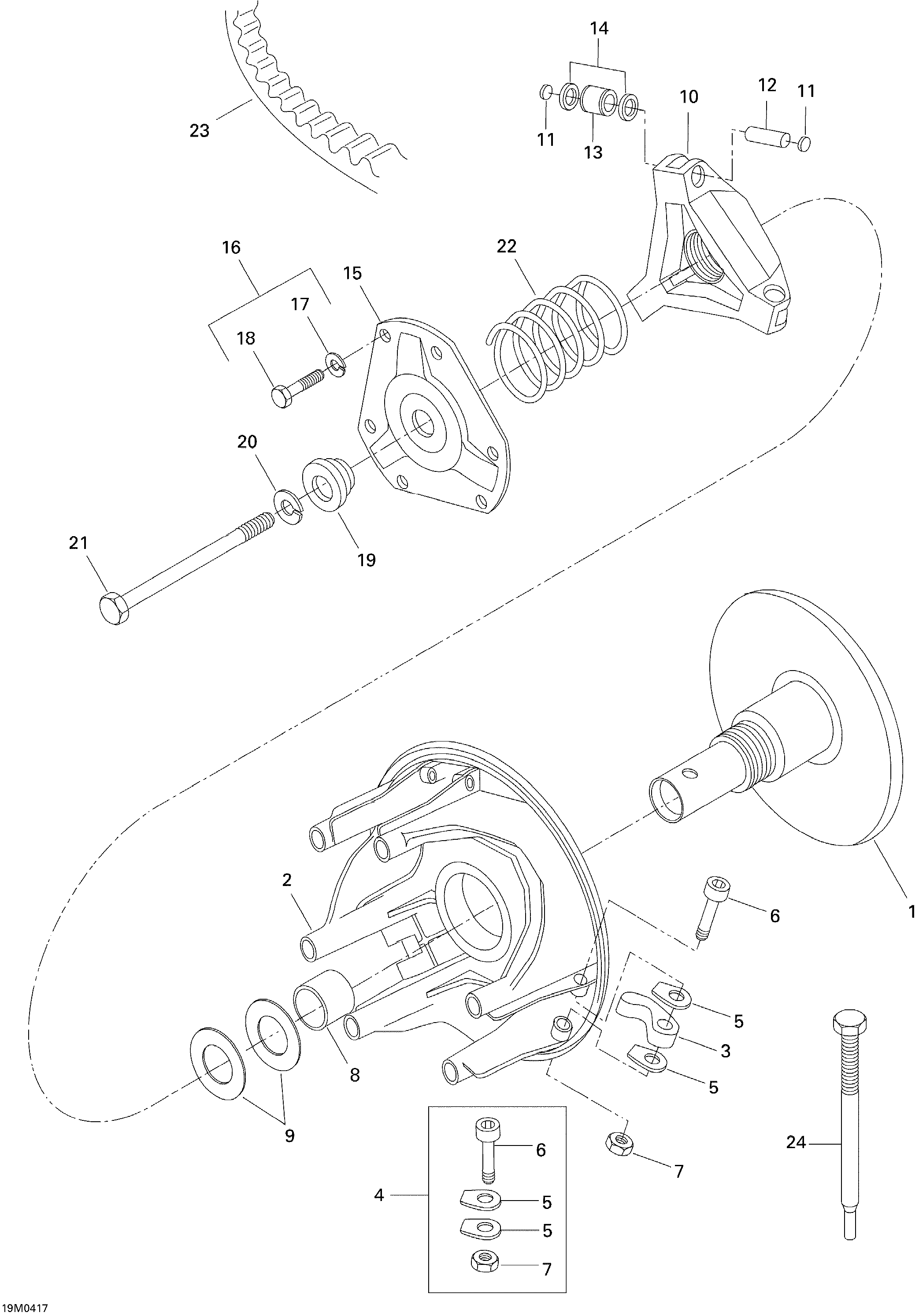

05- Drive Pulley для BRP Ski-Doo Skandic LT 440F - 2004
-
№АртикулНазвание
-
1M140028 Inner FlangeInner Flange
-
4M140042 Pin Arm Kit. Includes Items 4 to 7Pin Arm Kit. Includes Items 4 to 7
-
9M140022 Spider ShimSpider Shim
-
10M140017 Spider Ass'Y. Includes Items 10 to 14Spider Ass'Y. Includes Items 10 to 14
-
12M140020 PinPin
-
14M140019 Stopper WasherStopper Washer
-
16M140043 Washer And Bolt Kit. Includes Items 16 to 18Washer And Bolt Kit. Includes Items 16 to 18
-
19M140013 Pivot WasherPivot Washer
-
20M20090 Conical Spring WasherConical Spring Washer
-
21417113800 BoltBolt
-
23414633800 Drive BeltDrive Belt
-
24529025000 Driver PullerDriver Puller
