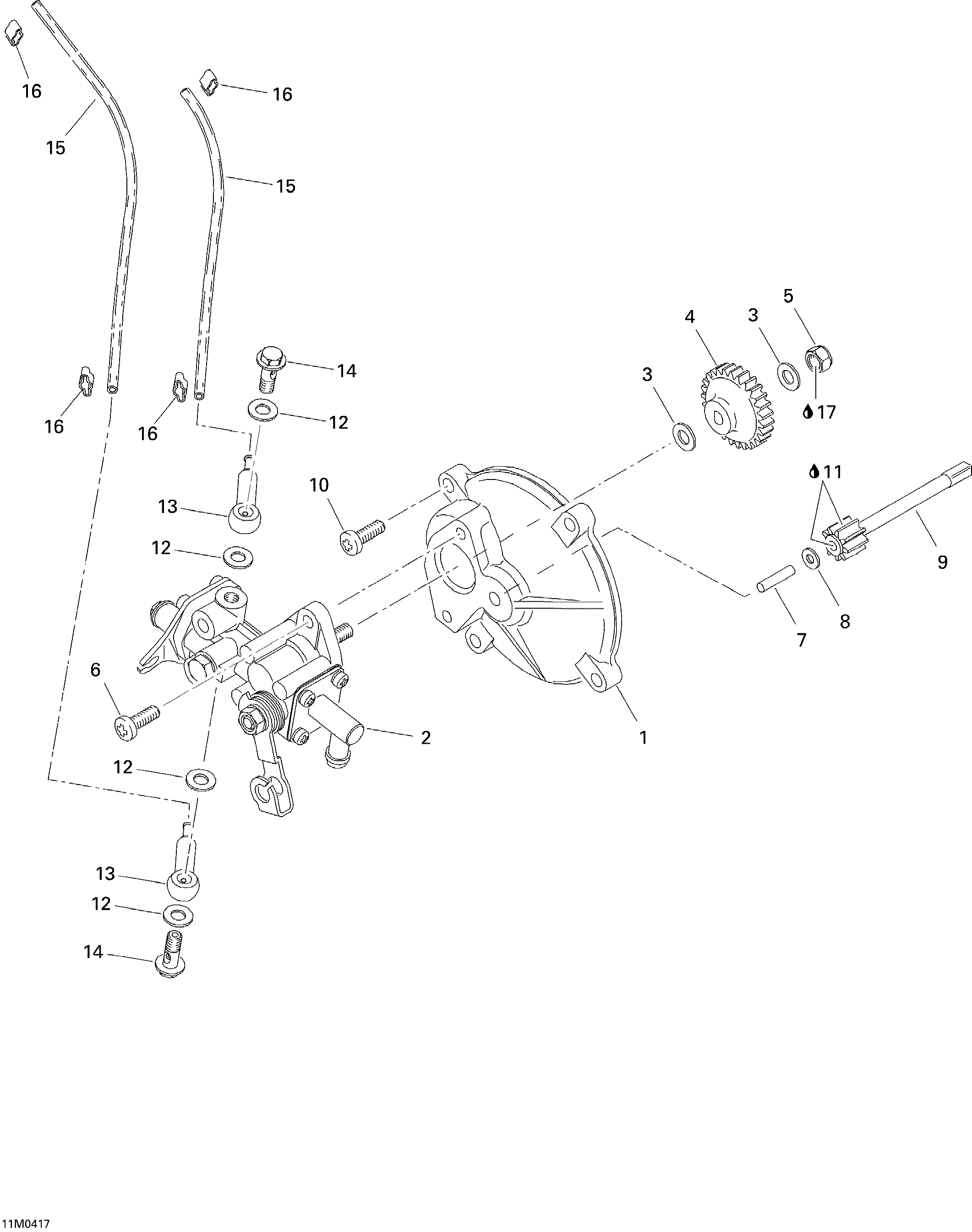

02- Oil Injection System для BRP Ski-Doo Skandic LT 440F - 2004
-
№АртикулНазвание
-
1420910160 Pump Mounting FlangePump Mounting Flange
-
2420887996 Oil Pump Ass'YOil Pump Ass'Y
-
3420927945 Flat WasherFlat Washer
-
4420935930 Oil Pump Gear (27 Teeth)Oil Pump Gear (27 Teeth)
-
5232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
6420841971 ScrewScrew
-
7420832260 Needle PinNeedle Pin
-
8420244073 Washer 4.3 mmWasher 4.3 mm
-
9420935970 Gear (9 Teeth)Gear (9 Teeth)
-
10420841976 ScrewScrew
-
11413707000 Molykote 111Molykote 111
-
12404146600 Sealing WasherSealing Washer
-
13420956010 Valve Ass'YValve Ass'Y
-
14404146800 Banjo Bolt M6 X 16Banjo Bolt M6 X 16
-
15414413800 Oil LineOil Line
-
16420853840 ClampClamp
-
17293800060 Loctite 243, 10 mlLoctite 243, 10 ml
