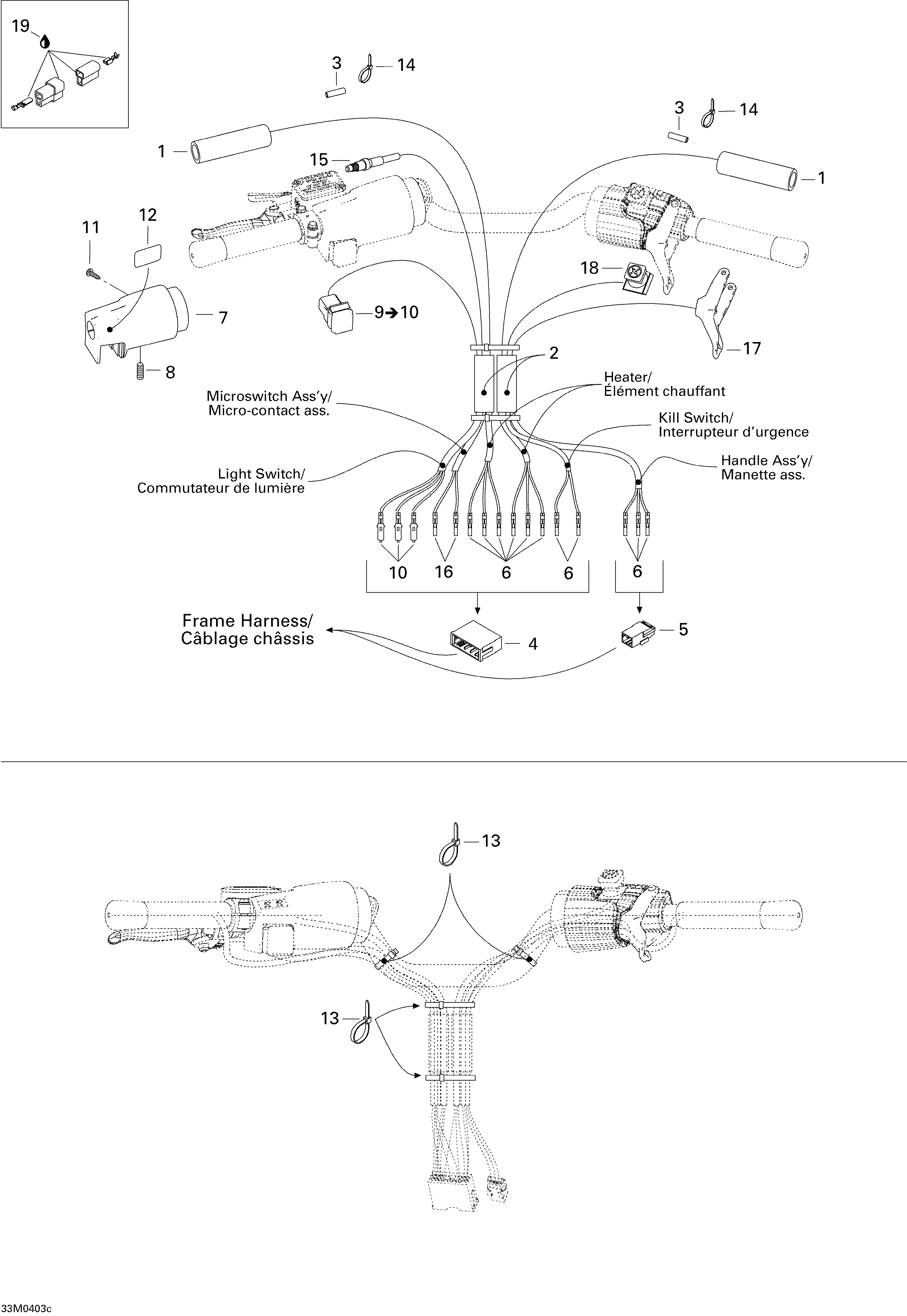

10- Steering Harness SKANDIC 550F для BRP Ski-Doo Skandic 550F - 2004
-
№АртикулНазвание
-
1515175997 HeaterHeater
-
2515175314 TubingTubing
-
3515175332 TubingTubing
-
4515175352 Male Terminal Housing (13 Circuits)Male Terminal Housing (13 Circuits)
-
5515175494 Male Terminal Housing (3 Circuits)Male Terminal Housing (3 Circuits)
-
6515175232 Male TerminalMale Terminal
-
7515175696 Brake HousingBrake Housing
-
8414440800 Set Screw M8 X 10Set Screw M8 X 10
-
9515175814 Light Switch. INCLUDES 9 TO 10Light Switch. INCLUDES 9 TO 10
-
10515175273 Male TerminalMale Terminal
-
11250000022 Phillips ScrewPhillips Screw
-
12415025500 Switch DecalSwitch Decal
-
13414115200 Tie Rap 180 mmTie Rap 180 mm
-
14293750001 Tie Rap 94 mmTie Rap 94 mm
-
15507032366 MicroswitchMicroswitch
-
16515175232 Male TerminalMale Terminal
-
17512059623 Heat Throttle Handle 34 mmHeat Throttle Handle 34 mm
-
18515175410 Kill SwitchKill Switch
-
19293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
