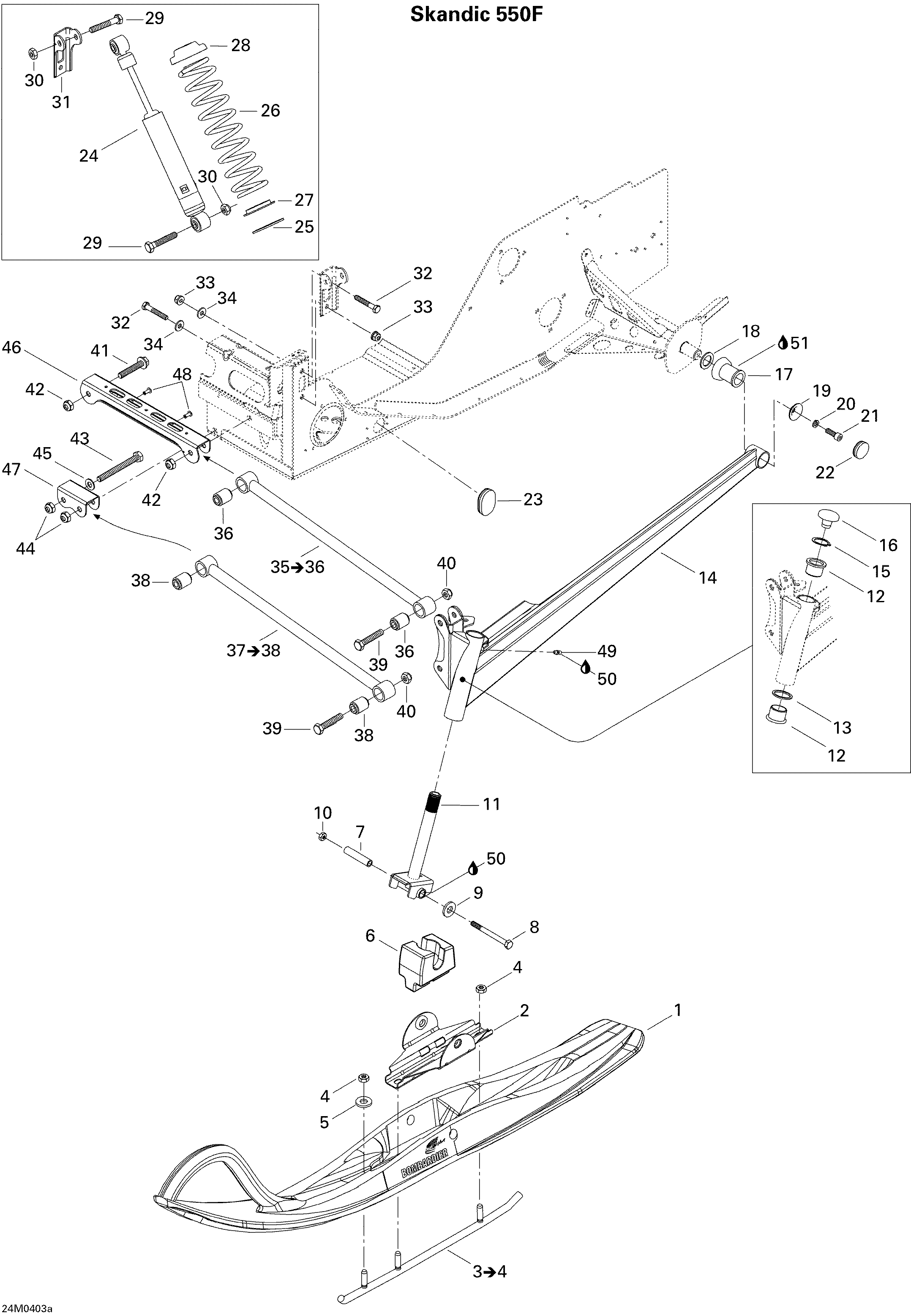

07- Front Suspension SKANDIC 550F для BRP Ski-Doo Skandic 550F - 2004
-
№АртикулНазвание
-
1505070975 Ski LinerSki Liner
-
2505070980 Bridge Ass'YBridge Ass'Y
-
3860507900 Carbide Runner. INCLUDES 3 TO 4Carbide Runner. INCLUDES 3 TO 4
-
4233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
5234082410 Flat Washer 8 mmFlat Washer 8 mm
-
6505070978 Ski StopperSki Stopper
-
7506133300 SpacerSpacer
-
8230003044 Hex Screw M10 X 130Hex Screw M10 X 130
-
9234001410 Flat Washer 10 mmFlat Washer 10 mm
-
10233201414 Elastic Flanged Stop Nut M10Elastic Flanged Stop Nut M10
-
11506151234 Ski LegSki Leg
-
12505070003 CushionCushion
-
13505070004 WasherWasher
-
14505070645 RH Swing ArmRH Swing Arm
-
505070646 LH Swing ArmLH Swing Arm
-
15371910400 CirclipCirclip
-
16572091300 CapCap
-
17570062200 DamperDamper
-
18503146700 WasherWasher
-
19506115800 CupCup
-
20234181401 Lock Washer 8 mmLock Washer 8 mm
-
21205582544 Socket Head Screw M8 X 25Socket Head Screw M8 X 25
-
22572045900 CapCap
-
23414916600 Nylon CapNylon Cap
-
24505071198 Front ShockFront Shock
-
25505070401 WasherWasher
-
26505070393 SpringSpring
-
27503187500 Spring GuideSpring Guide
-
28503140600 Spring StopperSpring Stopper
-
29207005544 Hex Screw M10 X 55Hex Screw M10 X 55
-
30233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
31518317518 RH Shock BracketRH Shock Bracket
-
518317519 LH Shock BracketLH Shock Bracket
-
32207085044 Hex Screw M8 X 50Hex Screw M8 X 50
-
33233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
34506151245 WasherWasher
-
35505070580 Upper Arm Ass'Y. INCLUDES 35 TO 36Upper Arm Ass'Y. INCLUDES 35 TO 36
-
36505070025 BushingBushing
-
37505070402 Lower Arm Ass'Y. INCLUDES 37 TO 38Lower Arm Ass'Y. INCLUDES 37 TO 38
-
38505070025 BushingBushing
-
39207005544 Hex Screw M10 X 55Hex Screw M10 X 55
-
40233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
41207605544 Hex Flanged Screw M10 X 55Hex Flanged Screw M10 X 55
-
42233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
43207009544 Hex Screw M10 X 95Hex Screw M10 X 95
-
44233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
45234001410 Flat Washer 10 mmFlat Washer 10 mm
-
46505070010 Upper Arm BracketUpper Arm Bracket
-
47505070011 Lower Arm BracketLower Arm Bracket
-
48390402200 Rivet 3/16''Rivet 3/16''
-
49408200700 Grease FittingGrease Fitting
-
50219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
51293550030 Grease, Super LubeGrease, Super Lube
