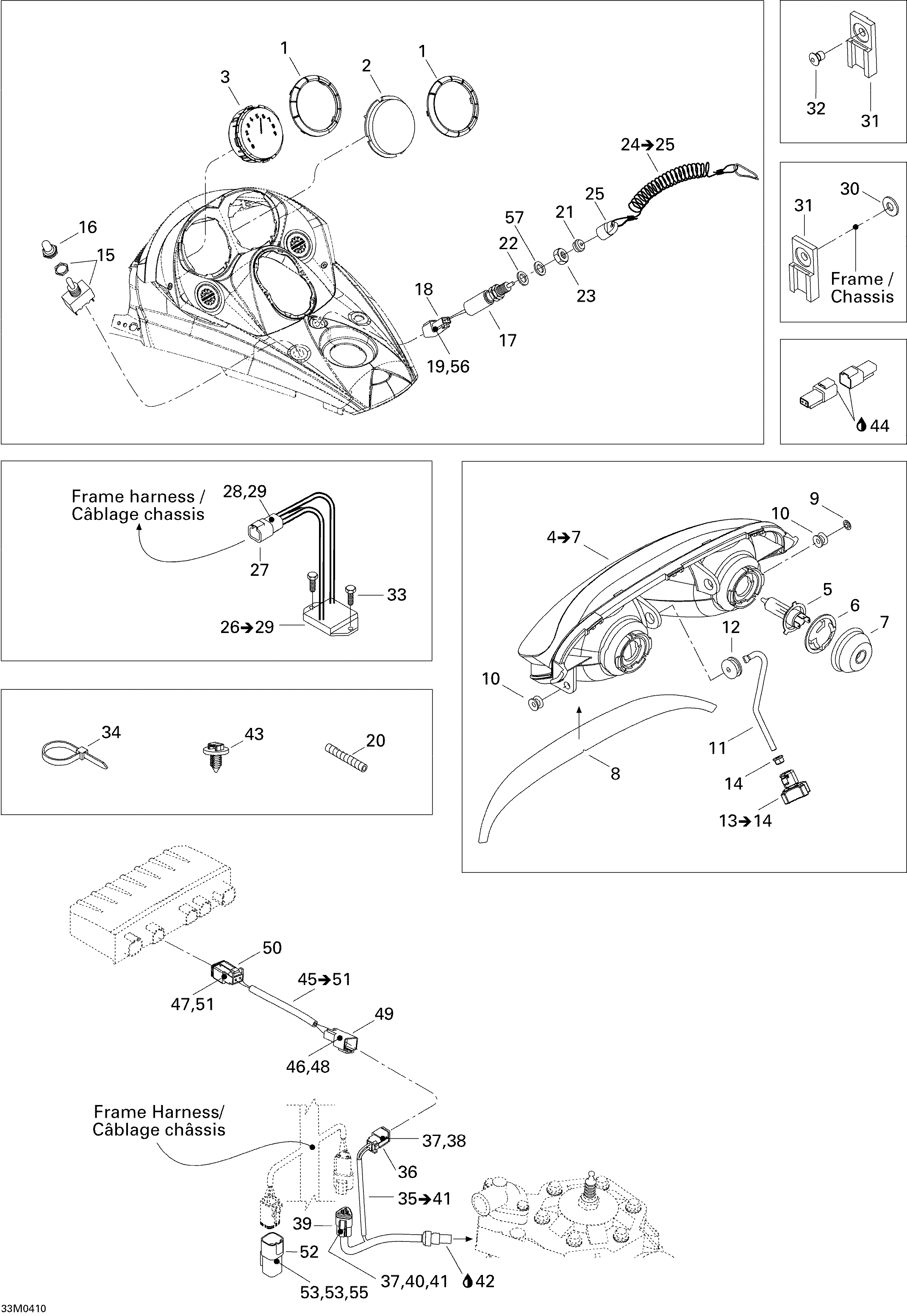

10- Electrical System для BRP Ski-Doo MX Z X 440 Racing - 2004

  • №
    Артикул
    Название
  • 1
    515175651 Gauge Ring
    Gauge Ring
  • 2
    515175901 Bottom Ring
    Bottom Ring
  • 3
    515176073 Tachometer
    Tachometer
  • 4
    515175909 Halogen Headlamp. Includes Items 4 to 7
    Halogen Headlamp. Includes Items 4 to 7
  • 5
    410504401 Halogen Bulb (60/55 W, 12 V)
    Halogen Bulb (60/55 W, 12 V)
  • 6
    515175910 Bulb Holder
    Bulb Holder
  • 7
    515175911 Cover
    Cover
  • 8
    516001328 Headlamp Decal
    Headlamp Decal
  • 9
    732610072 Push Nut
    Push Nut
  • 10
    515175760 Headlamp Bushing
    Headlamp Bushing
  • 11
    515175521 Adjuster Rod
    Adjuster Rod
  • 12
    415100800 Grommet
    Grommet
  • 13
    515175975 Handle. Includes Items 13 to 14
    Handle. Includes Items 13 to 14
  • 14
    233261414 Elastic Flanged Nut M6
    Elastic Flanged Nut M6
  • 15
    410107300 Switch (Heating Grip)
    Switch (Heating Grip)
  • 16
    515175281 Switch Cover
    Switch Cover
  • 17
    515175653 Brake Switch
    Brake Switch
  • 18
    515175665 Male Terminal Housing (2 Circuits)
    Male Terminal Housing (2 Circuits)
  • 19
    409207500 Male Lock (2 Circuits)
    Male Lock (2 Circuits)
  • 20
    515175332 Tubing
    Tubing
  • 21
    570151100 Plunger Cap
    Plunger Cap
  • 22
    234001410 Flat Washer 10 mm
    Flat Washer 10 mm
  • 23
    415073500 Switch Nut
    Switch Nut
  • 24
    515167900 Cap Assy.. Includes Items 24 to 25
    Cap Assy.. Includes Items 24 to 25
  • 25
    572012200 Switch Cap
    Switch Cap
  • 26
    515175655 Voltage Regulator
    Voltage Regulator
  • 27
    278001477 Male Terminal Housing (4 Circuits)
    Male Terminal Housing (4 Circuits)
  • 28
    515175568 Male Terminal
    Male Terminal
  • 29
    278001478 (Female) Secondary Lock (4 Circuits) (Deutsch)
    (Female) Secondary Lock (4 Circuits) (Deutsch)
  • 30
    517225900 Flat Washer
    Flat Washer
  • 31
    515175917 Clip (Black)
    Clip (Black)
  • 32
    293150037 Rivet Avdel 3/16''
    Rivet Avdel 3/16''
  • 33
    210261680 Hex Screw M6 X 16
    Hex Screw M6 X 16
  • 34
    293750008 Tie Rap 350 mm
    Tie Rap 350 mm
  • 35
    515176041 Temperature Sensor. Includes Items 35 to 41
    Temperature Sensor. Includes Items 35 to 41
  • 36
    515175670 Female Terminal Housing (2 Circuits)
    Female Terminal Housing (2 Circuits)
  • 37
    278000632 Female Terminal
    Female Terminal
  • 38
    515175675 Female Lock (2 Circuits)
    Female Lock (2 Circuits)
  • 39
    515175671 Female Terminal Housing (3 Circuits)
    Female Terminal Housing (3 Circuits)
  • 40
    278000632 Female Terminal
    Female Terminal
  • 41
    515175676 Female Lock (3 Circuits)
    Female Lock (3 Circuits)
  • 42
    293800018 Loctite 592, Pipe Sealant, 50 ml
    Loctite 592, Pipe Sealant, 50 ml
  • 43
    293730018 Dart Mount
    Dart Mount
  • 44
    293550004 Dielectric Grease, 150 g
    Dielectric Grease, 150 g
  • 45
    515175963 Temperature Harness. Includes Items 45 to 51
    Temperature Harness. Includes Items 45 to 51
  • 46
    278000631 Male Terminal
    Male Terminal
  • 47
    278000632 Female Terminal
    Female Terminal
  • 48
    409207500 Male Lock (2 Circuits)
    Male Lock (2 Circuits)
  • 49
    515175665 Male Terminal Housing (2 Circuits)
    Male Terminal Housing (2 Circuits)
  • 50
    515175670 Female Terminal Housing (2 Circuits)
    Female Terminal Housing (2 Circuits)
  • 51
    515175706 Female Lock (2 Circuits)
    Female Lock (2 Circuits)
  • 52
    515175668 Male Terminal Housing (6 Circuits)
    Male Terminal Housing (6 Circuits)
  • 53
    293000052 Plug
    Plug
  • 54
    278000631 Male Terminal
    Male Terminal
  • 55
    515175823 Male Terminal
    Male Terminal
  • 56
    515175768 Male Terminal
    Male Terminal
  • 57
    510004418 Washer
    Washer
