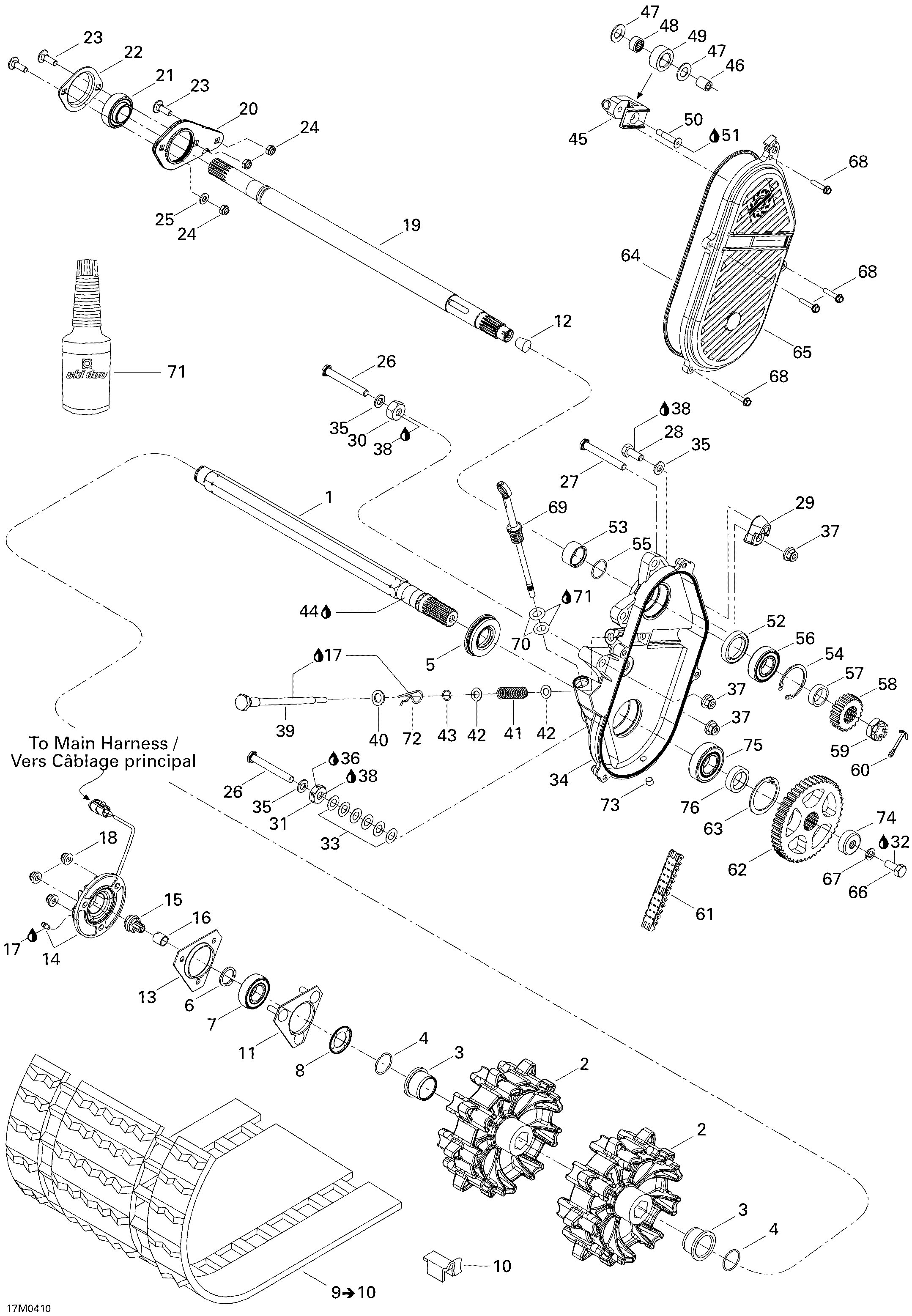

05- Drive System для BRP Ski-Doo MX Z X 440 Racing - 2004
-
№АртикулНазвание
-
1504152359 Drive AxleDrive Axle
-
2504152356 9 Teeth Double Sprocket9 Teeth Double Sprocket
-
3504152382 Retainer RingRetainer Ring
-
4504152194 CirclipCirclip
-
5504151918 Oil Seal Ass'YOil Seal Ass'Y
-
6371910200 CirclipCirclip
-
7504152009 Ball BearingBall Bearing
-
8501017400 Ball Bearing ProtectorBall Bearing Protector
-
9504152361 Track. Includes 9 to 10Track. Includes 9 to 10
-
10504152410 GuideGuide
-
11504151860 Bearing HousingBearing Housing
-
12414784800 CorkCork
-
13501025000 FlangeFlange
-
14504152345 SensorSensor
-
15504152040 Magnetic AdaptatorMagnetic Adaptator
-
16572097500 AdaptorAdaptor
-
17219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
18233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
19504152020 Counter-ShaftCounter-Shaft
-
20504151968 SpacerSpacer
-
21504152026 Ball BearingBall Bearing
-
22501026900 FlangeFlange
-
23207782544 Carriage Bolt M8 X 25Carriage Bolt M8 X 25
-
24232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
25234081410 Flat Washer 8 mmFlat Washer 8 mm
-
26207107544 Hex Screw M10 X 75Hex Screw M10 X 75
-
27207006044 Hex Screw M10 X 60Hex Screw M10 X 60
-
28207102544 Hex Screw M10 X 25Hex Screw M10 X 25
-
29504152252 SpacerSpacer
-
30504083800 SpacerSpacer
-
31504152237 SpacerSpacer
-
32293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
33504073700 WasherWasher
-
34504152407 ChaincaseChaincase
-
35503183800 WasherWasher
-
36293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
37233201414 Elastic Flanged Stop Nut M10Elastic Flanged Stop Nut M10
-
38293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
39504151946 Adjusting ScrewAdjusting Screw
-
40503189148 WasherWasher
-
41504151945 SpringSpring
-
42503125900 Hardened WasherHardened Washer
-
43504151954 O-RingO-Ring
-
44219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
45504152083 Chain TensionnerChain Tensionner
-
46504080200 SpacerSpacer
-
47504080300 WasherWasher
-
48405403000 Needle BearingNeedle Bearing
-
49414531300 RollerRoller
-
50732601144 ScrewScrew
-
51293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
52415049300 SealSeal
-
53507031500 SpacerSpacer
-
54371901700 Circlip (Interior)Circlip (Interior)
-
55414876700 O-RingO-Ring
-
56504152006 Ball BearingBall Bearing
-
57504093400 ShimShim
-
58504152044 Sprocket 21 TeethSprocket 21 Teeth
-
59250000012 Hex Castellated Nut M20Hex Castellated Nut M20
-
60371006300 Cotter PinCotter Pin
-
61504151932 Drive Chain Large (74 Links)Drive Chain Large (74 Links)
-
62504152379 Sprocket 45 TeethSprocket 45 Teeth
-
63415064300 Circlip (Interior)Circlip (Interior)
-
64415046400 O-RingO-Ring
-
65504152027 Chaincase CoverChaincase Cover
-
66207102544 Hex Screw M10 X 25Hex Screw M10 X 25
-
67234100602 Lock Spring Washer 10 mmLock Spring Washer 10 mm
-
68210263080 Hex Forming Screw M6 X 30Hex Forming Screw M6 X 30
-
69504151703 Filler Cap Ass'YFiller Cap Ass'Y
-
70414969400 O-RingO-Ring
-
71413803300 Synthetic Chaincase Oil, 12 x 355 mlSynthetic Chaincase Oil, 12 x 355 ml
-
72414575600 Hair PinHair Pin
-
73504151921 Plug 1/8''-27Plug 1/8''-27
-
74504152104 CapCap
-
75504152411 Ball BearingBall Bearing
-
76504152058 ShimShim
