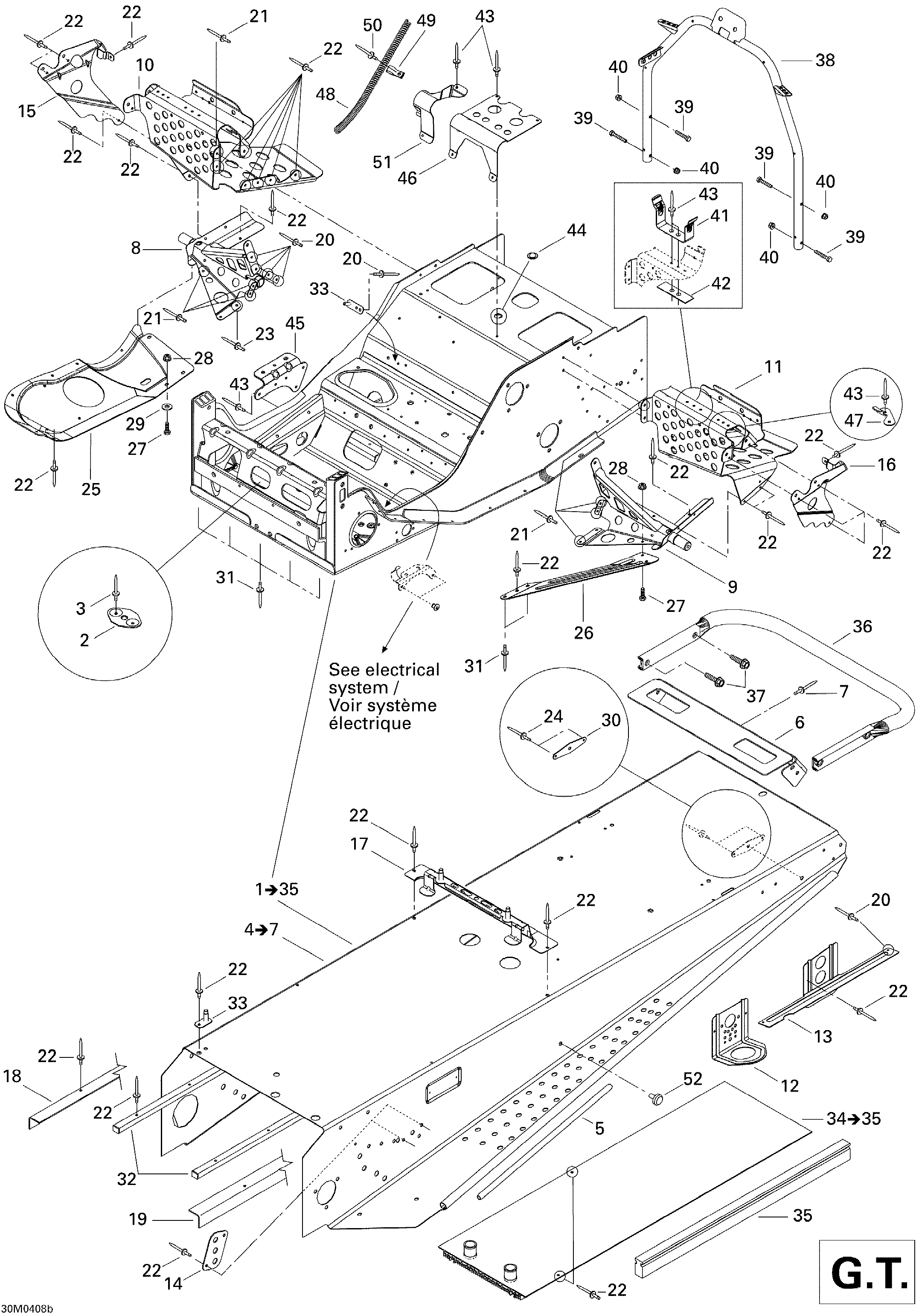

09- Frame (GT) для BRP Ski-Doo Legend 800 SDI - 2004
-
№АртикулНазвание
-
1415128554 Frame. Includes items 1 to 35Frame. Includes items 1 to 35
-
2518201307 Plate BracketPlate Bracket
-
3390402200 Rivet 3/16''Rivet 3/16''
-
4415128615 Forming Frame. Includes items 7 to 7Forming Frame. Includes items 7 to 7
-
5518304746 Footrest ReinforcementFootrest Reinforcement
-
6518322734 Rear CapRear Cap
-
7390402200 Rivet 3/16''Rivet 3/16''
-
8518320506 RH Footrest SupportRH Footrest Support
-
9518320507 LH Footrest SupportLH Footrest Support
-
10518323563 RH FootrestRH Footrest
-
11518323564 LH FootrestLH Footrest
-
12518321495 Front BracketFront Bracket
-
13518323051 RH Rear BracketRH Rear Bracket
-
518323055 LH Rear BracketLH Rear Bracket
-
14518201321 Reinforcement PlateReinforcement Plate
-
15518321305 RH Footrest ReinforcementRH Footrest Reinforcement
-
16518321307 LH Footrest ReinforcementLH Footrest Reinforcement
-
17518321510 Fuel Tank BracketFuel Tank Bracket
-
18518323190 RH ReinforcementRH Reinforcement
-
19518323191 LH ReinforcementLH Reinforcement
-
20390909200 Rivet AvexRivet Avex
-
21390909100 Rivet AvexRivet Avex
-
22390402200 Rivet 3/16''Rivet 3/16''
-
23390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
24390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
25518322636 RH Bottom Pan PlateRH Bottom Pan Plate
-
26518322119 LH Reinforcement PlateLH Reinforcement Plate
-
27207152044 Hex Screw M5 X 20Hex Screw M5 X 20
-
28233251414 Elastic Flanged Stop Nut M5Elastic Flanged Stop Nut M5
-
29391301700 WasherWasher
-
30518316767 Rear ReinforcementRear Reinforcement
-
31390910300 Henrob RivetHenrob Rivet
-
32518321543 Frame ProtectorFrame Protector
-
33518323173 Double BracketDouble Bracket
-
34518322905 Rear Radiator. Includes items 34 to 35Rear Radiator. Includes items 34 to 35
-
35518321656 Radiator ProtectorRadiator Protector
-
36517272510 Rear BumperRear Bumper
-
37207682044 Hex Flanged Screw M8 X 20Hex Flanged Screw M8 X 20
-
38518322755 Handle SupportHandle Support
-
39207663544 Hex Flanged Screw M6 X 35Hex Flanged Screw M6 X 35
-
40233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
41518202100 Pulley Guard BracketPulley Guard Bracket
-
42518207500 ReinforcementReinforcement
-
43390402200 Rivet 3/16''Rivet 3/16''
-
44414859400 CapCap
-
45518322635 Muffler SupportMuffler Support
-
46518310400 Air Intake SupportAir Intake Support
-
47518322031 Tool Kit BracketTool Kit Bracket
-
48518321569 Rope GuideRope Guide
-
49518321570 Open ClampOpen Clamp
-
50293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
51518322699 Hose SupportHose Support
-
52518321954 Panel FastenerPanel Fastener
