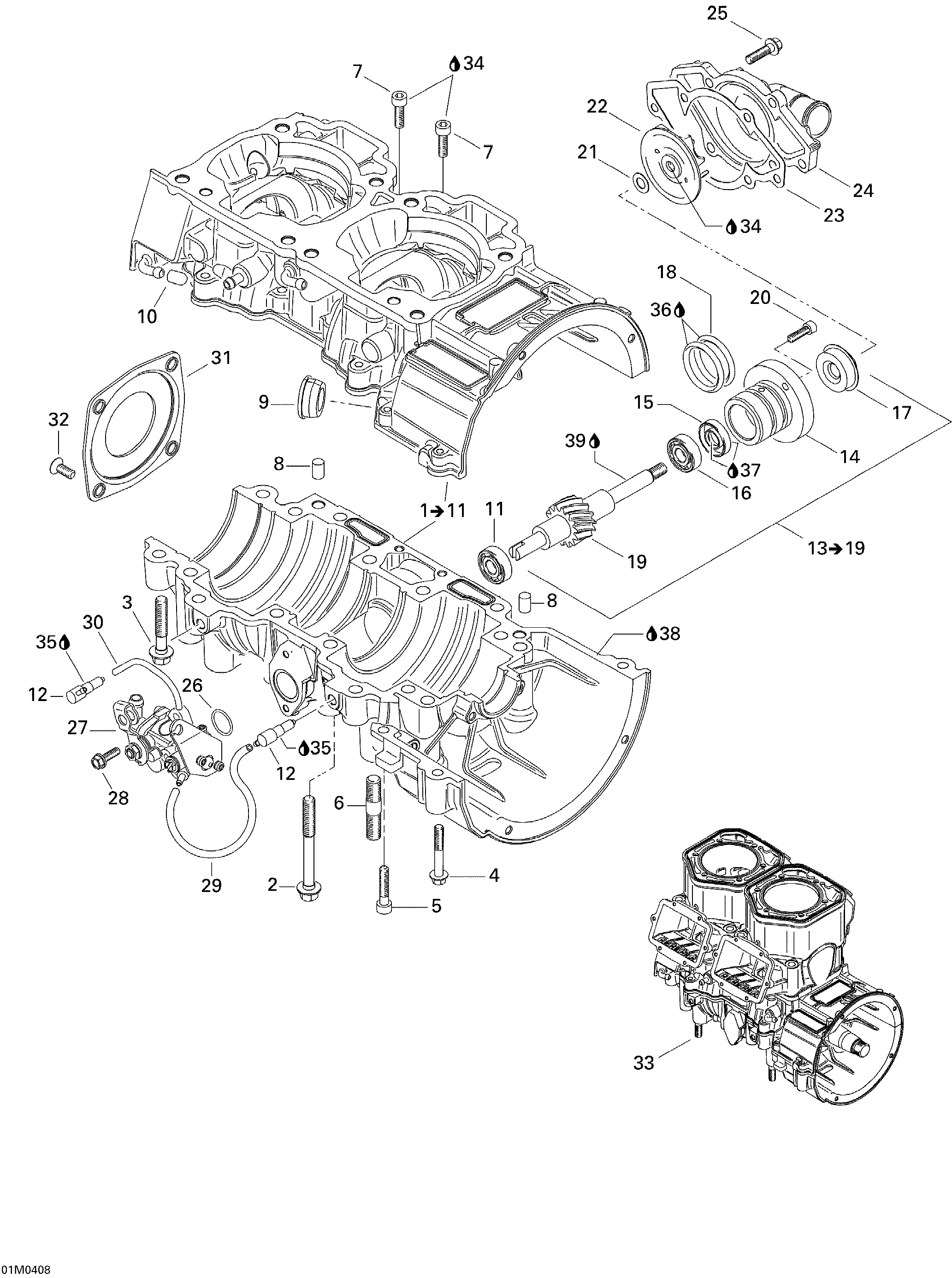

01- Crankcase, Water Pump And Oil Pump для BRP Ski-Doo Legend 800 SDI - 2004

№

Артикул

Название
1

420889611 Crankcase Ass'Y. Includes items 1 to 11 / 600 HO SDI

Crankcase Ass'Y. Includes items 1 to 11 / 600 HO SDI

0 ₽
420889616 Crankcase Ass'Y. Includes items 1 to 11 / 800 SDI

Crankcase Ass'Y. Includes items 1 to 11 / 800 SDI

103 850 ₽
2

420640836 Hex Collar Screw M8 X 75

Hex Collar Screw M8 X 75

990 ₽
3

420640431 Hex Collar Screw M8 X 45

Hex Collar Screw M8 X 45

0 ₽
4

420640311 Hex Collar Screw M6 X 45

Hex Collar Screw M6 X 45

370 ₽
5

205063044 Socket Head Screw M6 X 30

Socket Head Screw M6 X 30

550 ₽
6

420641834 Stud M10 X 29

Stud M10 X 29

800 ₽
7

420840401 Socket Head Screw M6 X 22

Socket Head Screw M6 X 22

140 ₽
8

420632010 Dowel Pin

Dowel Pin

1 450 ₽
9

420860965 Cable Grommet

Cable Grommet

1 150 ₽
10

420960770 Cap

Cap

380 ₽
11

420232100 Ball Bearing

Ball Bearing

10 030 ₽
12

420956510 Check Valve

Check Valve

3 130 ₽
13

420837421 Water Pump/Oil Pump Ass'Y. Includes items 13 to 19

Water Pump/Oil Pump Ass'Y. Includes items 13 to 19

112 000 ₽
15

420230195 Oil Seal

Oil Seal

5 600 ₽
16

420232100 Ball Bearing

Ball Bearing

10 030 ₽
17

420650370 Rotary Seal

Rotary Seal

25 480 ₽
18

420950890 O-Ring

O-Ring

1 540 ₽
20

420840511 Socket Head Screw M5 X 16

Socket Head Screw M5 X 16

670 ₽
21

420227945 Washer

Washer

1 450 ₽
22

420222505 Water Impeller

Water Impeller

6 480 ₽
23

420931810 Gasket

Gasket

4 520 ₽
24

420922630 Water Pump Housing

Water Pump Housing

5 020 ₽
25

420240031 Hex Screw M6 X 25

Hex Screw M6 X 25

280 ₽
26

420230400 O-Ring

O-Ring

0 ₽
27

420888780 Oil Pump Ass'Y. 600 HO SDI

Oil Pump Ass'Y. 600 HO SDI

124 250 ₽
420888770 Oil Pump Ass'Y. 800 SDI

Oil Pump Ass'Y. 800 SDI

31 630 ₽
28

420941925 Tapping Screw M5 X 16

Tapping Screw M5 X 16

180 ₽
29

414413800 Oil Line

Oil Line

300 ₽
30

414413800 Oil Line

Oil Line

300 ₽
31

420812420 Cover

Cover

590 ₽
32

420941430 Socket Head Screw M6 X 20

Socket Head Screw M6 X 20

0 ₽
33

420059370 Short Block «593 Sdi». 600 HO SDI

Short Block «593 Sdi». 600 HO SDI

0 ₽
420079371 Short Block «693 Sdi». 800 SDI

Short Block «693 Sdi». 800 SDI

0 ₽
34

293800060 Loctite 243, 10 ml

Loctite 243, 10 ml

2 760 ₽
35

413711400 Loctite 648, 10 ml

Loctite 648, 10 ml

3 420 ₽
36

413707000 Molykote 111

Molykote 111

7 550 ₽
37

420899271 Petamo Grease, Ghy133N, 400 G

Petamo Grease, Ghy133N, 400 G

8 190 ₽
38

420297906 Sealing Compound, 30 ml

Sealing Compound, 30 ml

3 950 ₽
39

413802900 Injection Oil (12 X 1 Liter)

Injection Oil (12 X 1 Liter)

1 050 ₽
