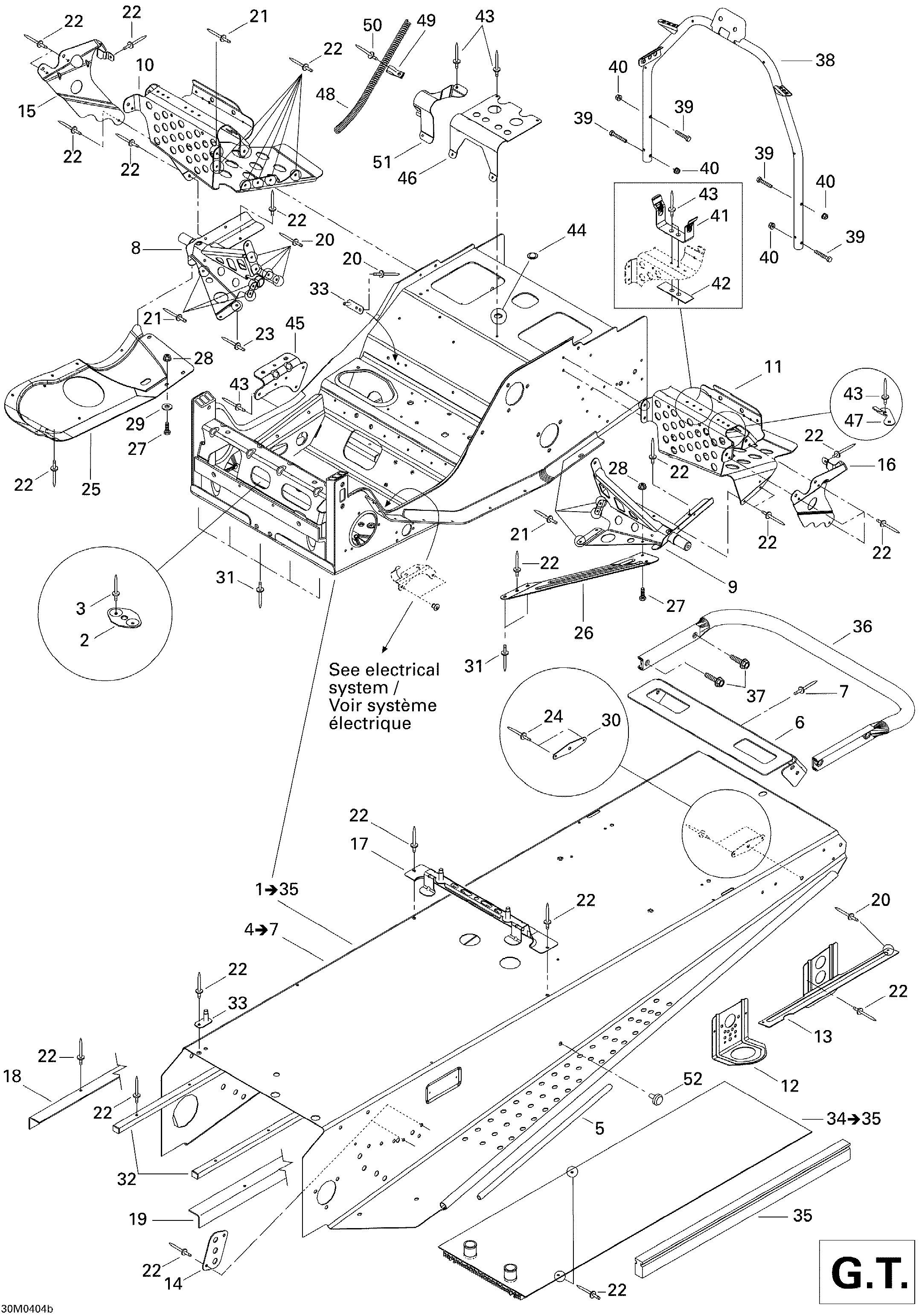

09- Frame (GT) для BRP Ski-Doo Legend 700 - 2004

  • №
    Артикул
    Название
  • 1
    415128554 Frame. 700 / INCLUDES ITEMS 1 TO 35
    Frame. 700 / INCLUDES ITEMS 1 TO 35
  • 415128555 Frame. 600 / INCLUDES ITEMS 1 TO 35
    Frame. 600 / INCLUDES ITEMS 1 TO 35
  • 2
    518201307 Bracket Plate
    Bracket Plate
  • 3
    390402200 Pop Rivet
    Pop Rivet
  • 4
    415128615 Forming Frame. INCLUDES ITEMS 4 TO 7
    Forming Frame. INCLUDES ITEMS 4 TO 7
  • 5
    518304746 Foot Reinforcement
    Foot Reinforcement
  • 6
    518322734 Rear Cap
    Rear Cap
  • 7
    390402200 Pop Rivet
    Pop Rivet
  • 8
    518320506 RH Footrest Support (Black)
    RH Footrest Support (Black)
  • 9
    518320507 LH Footrest Support (Black)
    LH Footrest Support (Black)
  • 10
    518323563 RH Footrest
    RH Footrest
  • 11
    518323564 LH Footrest
    LH Footrest
  • 12
    518321495 Front Bracket (Black)
    Front Bracket (Black)
  • 13
    518323051 RH Rear Bracket
    RH Rear Bracket
  • 518323055 LH Rear Bracket (Black)
    LH Rear Bracket (Black)
  • 14
    518201321 Reinforcement Plate
    Reinforcement Plate
  • 15
    518321305 RH Footrest Reinforcement
    RH Footrest Reinforcement
  • 16
    518321307 LH Footrest Reinforcement
    LH Footrest Reinforcement
  • 17
    518321510 Tank Bracket
    Tank Bracket
  • 18
    518323190 RH Forming Frame Reinforcement
    RH Forming Frame Reinforcement
  • 19
    518323191 LH Forming Frame Reinforcement
    LH Forming Frame Reinforcement
  • 20
    390909200 Avex Rivet
    Avex Rivet
  • 21
    390909100 Avex Rivet
    Avex Rivet
  • 22
    390402200 Pop Rivet
    Pop Rivet
  • 23
    390402300 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 24
    390402400 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 25
    518322636 RH Pan Bottom Plate. 700
    RH Pan Bottom Plate. 700
  • 518319760 RH Pan Bottom Plate. 600
    RH Pan Bottom Plate. 600
  • 26
    518322119 LH Reinforcement Plate (Black)
    LH Reinforcement Plate (Black)
  • 27
    207152044 Hex Screw M5 X 20
    Hex Screw M5 X 20
  • 28
    233251414 Elastic Flanged Nut M5
    Elastic Flanged Nut M5
  • 29
    391301700 Washer
    Washer
  • 30
    518316767 Rear Reinforcement
    Rear Reinforcement
  • 31
    390910300 Henrob Rivet
    Henrob Rivet
  • 32
    518321543 Frame Protection
    Frame Protection
  • 33
    518323173 Double Bracket
    Double Bracket
  • 34
    518322905 Rear Radiator. INCLUDES ITEMS 34 TO 35
    Rear Radiator. INCLUDES ITEMS 34 TO 35
  • 35
    518321656 Radiator Protector
    Radiator Protector
  • 36
    517272510 Rear Bumper (Black)
    Rear Bumper (Black)
  • 37
    207682044 Hex Flanged Screw M8 X 20
    Hex Flanged Screw M8 X 20
  • 38
    518322755 Handle Support (Black)
    Handle Support (Black)
  • 39
    207663544 Hex Flanged Screw M6 X 35
    Hex Flanged Screw M6 X 35
  • 40
    233261414 Elastic Flanged Nut M6
    Elastic Flanged Nut M6
  • 41
    518202100 Belt Guard Bracket
    Belt Guard Bracket
  • 42
    518207500 Reinforcement
    Reinforcement
  • 43
    390402200 Pop Rivet
    Pop Rivet
  • 44
    414859400 Cap
    Cap
  • 45
    518322635 Muffler Support
    Muffler Support
  • 46
    518310400 Air Intake Support
    Air Intake Support
  • 47
    518322031 Tool Kit Bracket
    Tool Kit Bracket
  • 48
    518321569 Rope Guide
    Rope Guide
  • 49
    518321570 Open Clamp
    Open Clamp
  • 50
    293150103 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 51
    518322699 Hose Support
    Hose Support
  • 52
    518321954 Panel Fastener
    Panel Fastener
