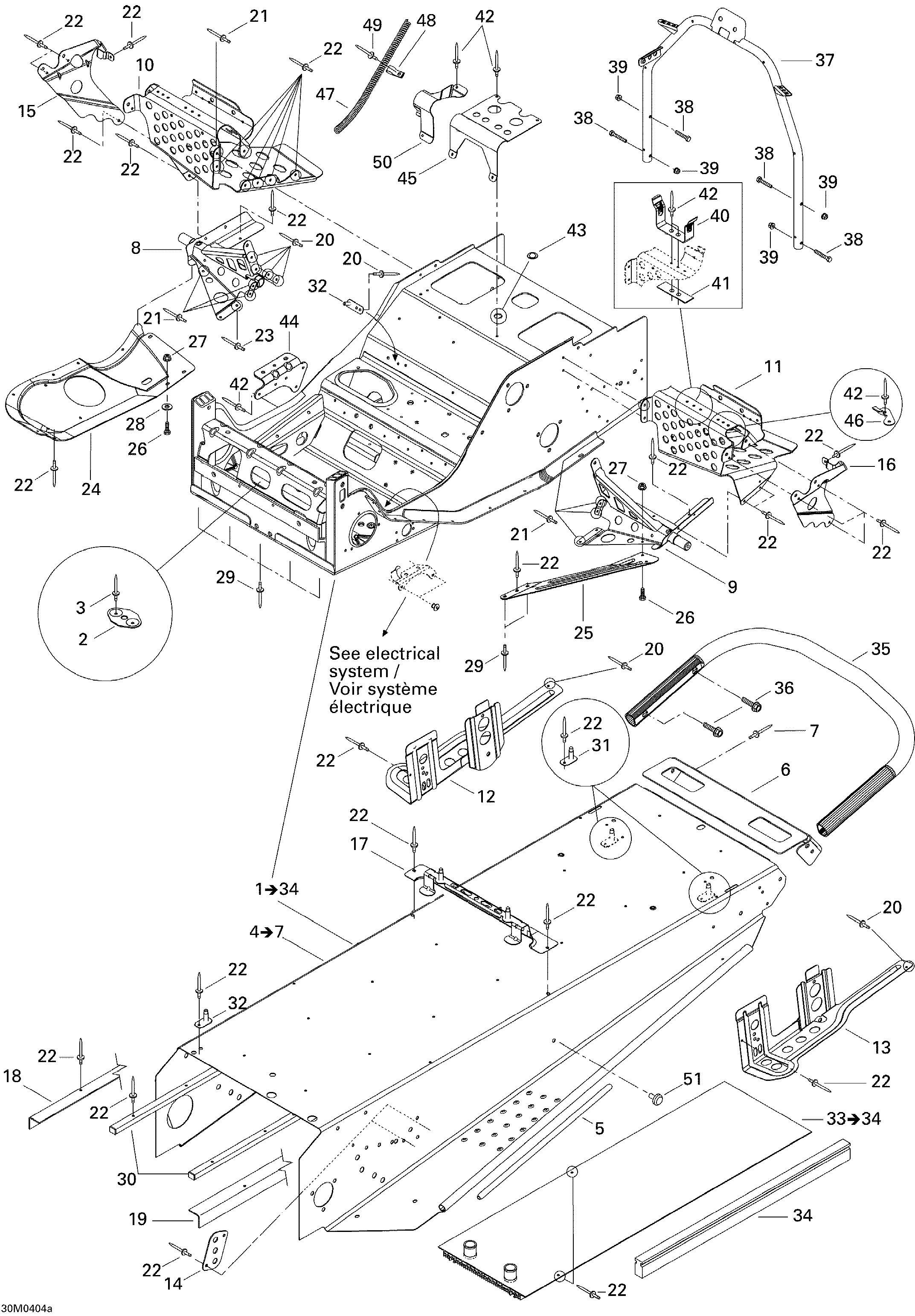

09- Frame для BRP Ski-Doo Legend 700 - 2004

  • №
    Артикул
    Название
  • 1
    415128761 Frame. 700 / INCLUDES ITEMS 1 TO 34
    Frame. 700 / INCLUDES ITEMS 1 TO 34
  • 415128762 Frame. 600 / INCLUDES ITEMS 1 TO 34
    Frame. 600 / INCLUDES ITEMS 1 TO 34
  • 2
    518201307 Bracket Plate
    Bracket Plate
  • 3
    390402200 Pop Rivet
    Pop Rivet
  • 4
    415128763 Forming Frame. INCLUDES ITEMS 4 TO 7
    Forming Frame. INCLUDES ITEMS 4 TO 7
  • 5
    518304746 Foot Reinforcement
    Foot Reinforcement
  • 6
    518321303 Rear Cap
    Rear Cap
  • 7
    390402200 Pop Rivet
    Pop Rivet
  • 8
    518320506 RH Footrest Support (Black)
    RH Footrest Support (Black)
  • 9
    518320507 LH Footrest Support (Black)
    LH Footrest Support (Black)
  • 10
    518323563 RH Footrest
    RH Footrest
  • 11
    518323564 LH Footrest
    LH Footrest
  • 12
    518323315 RH Slide Bracket
    RH Slide Bracket
  • 13
    518323318 LH Slide Bracket
    LH Slide Bracket
  • 14
    518201321 Reinforcement Plate
    Reinforcement Plate
  • 15
    518321305 RH Footrest Reinforcement
    RH Footrest Reinforcement
  • 16
    518321307 LH Footrest Reinforcement
    LH Footrest Reinforcement
  • 17
    518321510 Tank Bracket
    Tank Bracket
  • 18
    518323193 RH Forming Frame Reinforcement
    RH Forming Frame Reinforcement
  • 19
    518323195 LH Forming Frame Reinforcement
    LH Forming Frame Reinforcement
  • 20
    390909200 Avex Rivet
    Avex Rivet
  • 21
    390909100 Avex Rivet
    Avex Rivet
  • 22
    390402200 Pop Rivet
    Pop Rivet
  • 23
    390402300 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 24
    518322636 RH Pan Bottom Plate. 700
    RH Pan Bottom Plate. 700
  • 518319760 RH Pan Bottom Plate. 600
    RH Pan Bottom Plate. 600
  • 25
    518322119 LH Reinforcement Plate (Black)
    LH Reinforcement Plate (Black)
  • 26
    207152044 Hex Screw M5 X 20
    Hex Screw M5 X 20
  • 27
    233251414 Elastic Flanged Nut M5
    Elastic Flanged Nut M5
  • 28
    391301700 Washer
    Washer
  • 29
    390910300 Henrob Rivet
    Henrob Rivet
  • 30
    518321543 Frame Protection
    Frame Protection
  • 31
    518323321 Seat Bracket
    Seat Bracket
  • 32
    518323173 Double Bracket
    Double Bracket
  • 33
    518322901 Rear Radiator. INCLUDES ITEMS 33 TO 34
    Rear Radiator. INCLUDES ITEMS 33 TO 34
  • 34
    518321655 Radiator Protector
    Radiator Protector
  • 35
    518322708 Rear Bumper
    Rear Bumper
  • 36
    207682044 Hex Flanged Screw M8 X 20
    Hex Flanged Screw M8 X 20
  • 37
    518322755 Handle Support (Black)
    Handle Support (Black)
  • 38
    207663544 Hex Flanged Screw M6 X 35
    Hex Flanged Screw M6 X 35
  • 39
    233261414 Elastic Flanged Nut M6
    Elastic Flanged Nut M6
  • 40
    518202100 Belt Guard Bracket
    Belt Guard Bracket
  • 41
    518207500 Reinforcement
    Reinforcement
  • 42
    390402200 Pop Rivet
    Pop Rivet
  • 43
    414859400 Cap
    Cap
  • 44
    518322635 Muffler Support
    Muffler Support
  • 45
    518310400 Air Intake Support
    Air Intake Support
  • 46
    518322031 Tool Kit Bracket
    Tool Kit Bracket
  • 47
    518321569 Rope Guide
    Rope Guide
  • 48
    518321570 Open Clamp
    Open Clamp
  • 49
    293150103 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 50
    518322699 Hose Support
    Hose Support
  • 51
    518321954 Panel Fastener
    Panel Fastener
