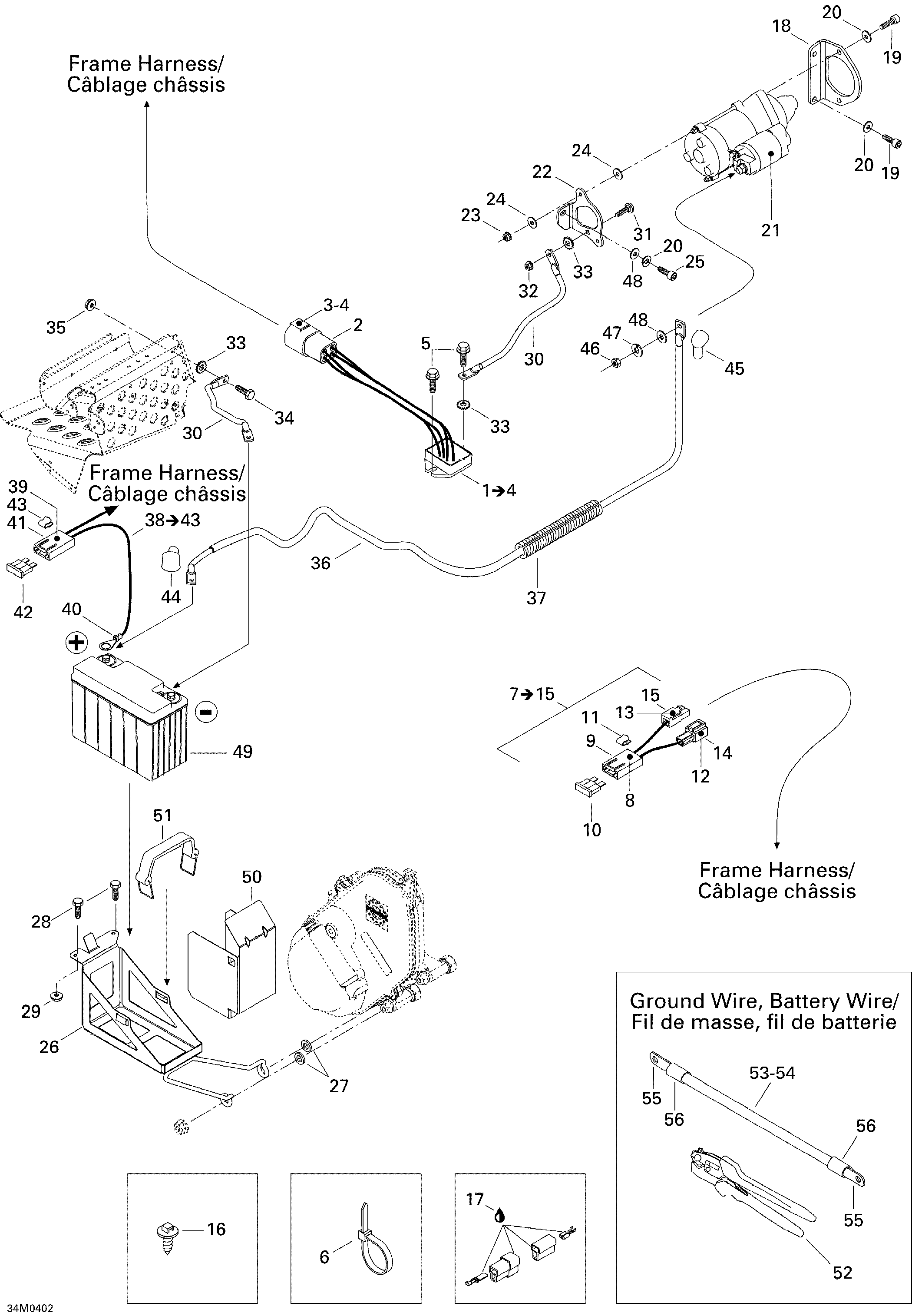

10- Battery, Starter (Legend 550F) для BRP Ski-Doo Legend 550F - 2004

№

Артикул

Название
1

515175939 Voltage Regulator. Includes Items 1 to 4

Voltage Regulator. Includes Items 1 to 4
2

278001477 Male Terminal Housing (4 Circuits)

Male Terminal Housing (4 Circuits)
3

515175568 Male Terminal

Male Terminal
4

278001478 (Female) Secondary Lock (4 Circuits) (Deutsch)

(Female) Secondary Lock (4 Circuits) (Deutsch)
5

210261680 Hex. Forming Screw M6 x 16

Hex. Forming Screw M6 x 16
6

293750001 Tie Rap 94 mm

Tie Rap 94 mm
6

293750009 Tie Rap 160 mm

Tie Rap 160 mm
6

414115200 Tie Rap 180 mm

Tie Rap 180 mm
8

409011600 Female Terminal

Female Terminal
9

409004000 Fuse Holder

Fuse Holder
10

409003900 Fuse (20 Amperes)

Fuse (20 Amperes)
11

409014200 Backward Clip

Backward Clip
12

515175273 Male Terminal

Male Terminal
13

515175282 Female Terminal

Female Terminal
14

515175509 Male Terminal Housing (1 Circuit)

Male Terminal Housing (1 Circuit)
15

515175510 Female Terminal Housing (1 Circuit)

Female Terminal Housing (1 Circuit)
16

293730018 Dart Mount

Dart Mount
17

293550004 Dielectric Grease, 150 g

Dielectric Grease, 150 g
18

515175652 Starter Bracket (PTO). 550F

Starter Bracket (PTO). 550F
19

205082044 Socket Head Screw M8 x 20

Socket Head Screw M8 x 20
20

234181401 Lock Washer 8 mm

Lock Washer 8 mm
21

515175795 Starter

Starter
22

515175633 Starter Bracket (MAG). 550F

Starter Bracket (MAG). 550F
23

232551414 Elastic Stop Nut M5

Elastic Stop Nut M5
24

391301700 Washer

Washer
25

205082044 Socket Head Screw M8 x 20

Socket Head Screw M8 x 20
26

515175718 Battery Support

Battery Support
27

503175800 Washer

Washer
28

207151444 Hex. Screw M5 x 14

Hex. Screw M5 x 14
29

233251414 Elastic Flanged Nut M5

Elastic Flanged Nut M5
31

207762044 Carriage Bolt M6 x 20

Carriage Bolt M6 x 20
32

233261414 Elastic Flanged Nut M6

Elastic Flanged Nut M6
33

250200041 Serrated Lock Washer 6 mm

Serrated Lock Washer 6 mm
34

207161644 Hex. Screw M6 x 16

Hex. Screw M6 x 16
35

233261414 Elastic Flanged Nut M6

Elastic Flanged Nut M6
37

409901700 Tubing

Tubing
38

515175489 Battery Fuse Wire. Includes Items 38 to 43

Battery Fuse Wire. Includes Items 38 to 43
39

409004489 Female Terminal

Female Terminal
40

278000992 Ring Terminal

Ring Terminal
41

409004000 Fuse Holder

Fuse Holder
42

410917200 Fuse (30 Amperes)

Fuse (30 Amperes)
43

409014200 Backward Clip

Backward Clip
44

570151000 Protector Cap

Protector Cap
45

278001771 Protector Cap

Protector Cap
46

232081414 Hex. Nut M8

Hex. Nut M8
47

234181401 Lock Washer 8 mm

Lock Washer 8 mm
48

234081410 Flat Washer 8 mm

Flat Washer 8 mm
49

410301203 Battery (18 Amperes)

Battery (18 Amperes)
50

515175643 Deflector

Deflector
51

515175475 Battery Strap

Battery Strap
52

529035730 Crimp Plier

Crimp Plier
53

278001680 Ground Cable Battery (no.6) (Meter)

Ground Cable Battery (no.6) (Meter)
53

278001681 Ground Cable Battery (no.4) (Meter)

Ground Cable Battery (no.4) (Meter)
54

278001690 Red Cable Battery (no.6) (Meter)

Red Cable Battery (no.6) (Meter)
55

278001682 Flat Terminal (Small Hole)

Flat Terminal (Small Hole)
55

278001683 Terminal 45° (Small Hole)

Terminal 45° (Small Hole)
55

278001684 Terminal 90° (Small Hole)

Terminal 90° (Small Hole)
55

278001685 Flat Terminal (Big Hole)

Flat Terminal (Big Hole)
55

278001686 Terminal 45° (Big Hole)

Terminal 45° (Big Hole)
55

278001687 Terminal 90° (Big Hole)

Terminal 90° (Big Hole)
55

278001688 Flat Terminal

Flat Terminal
56

278001692 Heat Shrink

Heat Shrink
