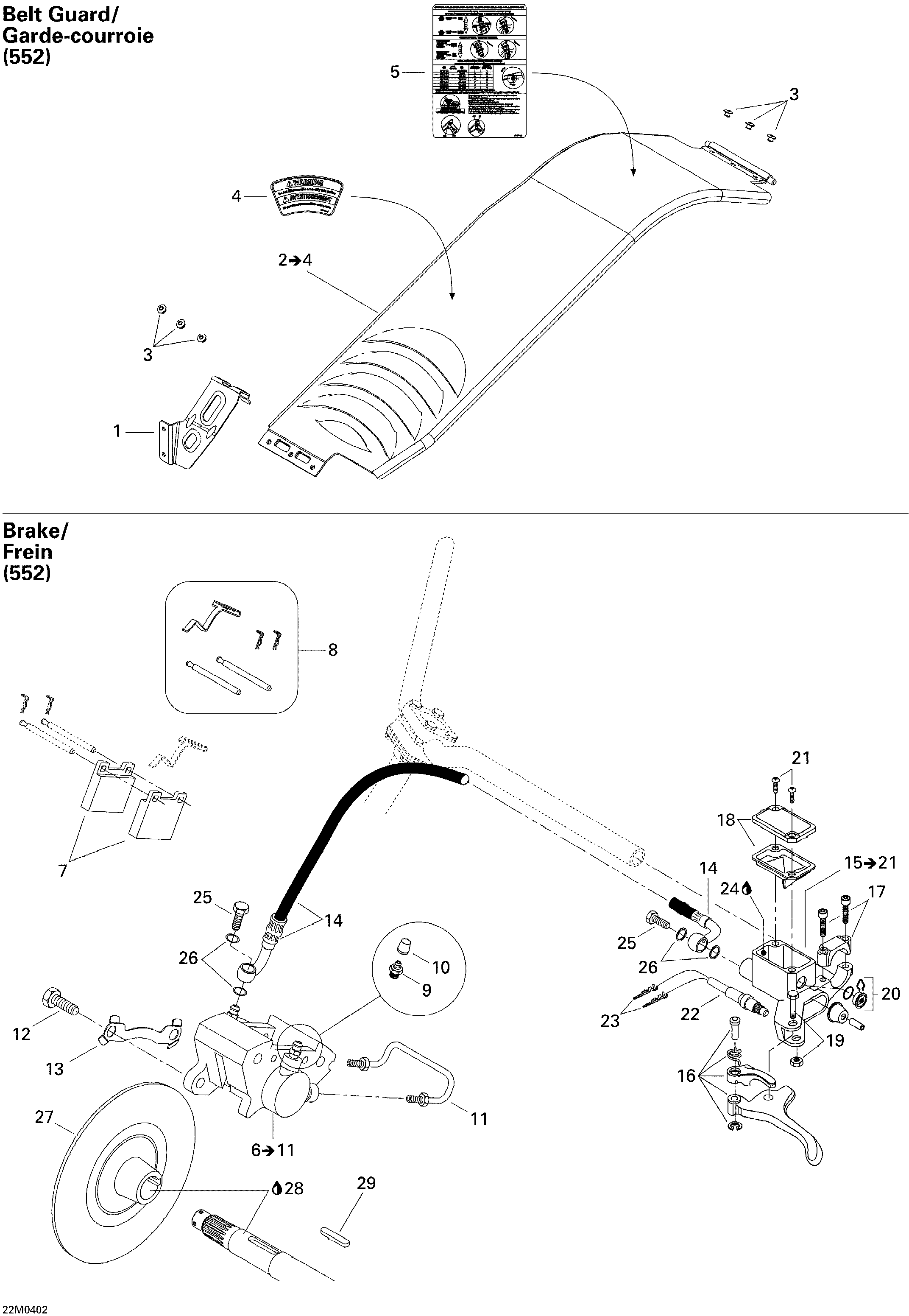

06- Brake (550F) для BRP Ski-Doo Legend 550F - 2004

  • №
    Артикул
    Название
  • 1
    417300172 Pulley Guard Bracket
    Pulley Guard Bracket
  • 2
    417300173 Belt Guard Ass'y. Includes Items 2 to 4
    Belt Guard Ass'y. Includes Items 2 to 4
  • 3
    390402200 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 4
    516001190 Label Security (Belt Guard)
    Label Security (Belt Guard)
  • 5
    516001639 Suspension Adjustment Decal
    Suspension Adjustment Decal
  • 6
    507032349 Caliper. Includes Items 6 to 11
    Caliper. Includes Items 6 to 11
  • 7
    415053600 Brake Lining Kit
    Brake Lining Kit
  • 8
    414990700 Kit (Pins, Retainers, Spring)
    Kit (Pins, Retainers, Spring)
  • 9
    414989800 Screw-Bleeder
    Screw-Bleeder
  • 10
    414989700 Boot
    Boot
  • 11
    414989900 Rigid Tubing
    Rigid Tubing
  • 12
    207103544 Hex. Screw M10 x 35
    Hex. Screw M10 x 35
  • 13
    507032316 Locking Tab
    Locking Tab
  • 14
    507032394 Hose
    Hose
  • 15
    507032293 Master Cylinder. Includes Items 15 to 21
    Master Cylinder. Includes Items 15 to 21
  • 16
    507032268 Brake Short Lever Ass'y
    Brake Short Lever Ass'y
  • 17
    415029800 Clamp Ass'y
    Clamp Ass'y
  • 18
    415029900 Cap
    Cap
  • 19
    415030000 Pin Ass'y
    Pin Ass'y
  • 20
    414990600 Window
    Window
  • 21
    216141260 Screw M4 x 12
    Screw M4 x 12
  • 22
    507032366 Microswitch
    Microswitch
  • 23
    515175232 Male Terminal
    Male Terminal
  • 24
    293600063 Brake Fluid, SRF (Dot 4)
    Brake Fluid, SRF (Dot 4)
  • 24
    293600062 Brake Fluid, GTLMA (Dot 4), 12 x 354 ml
    Brake Fluid, GTLMA (Dot 4), 12 x 354 ml
  • 25
    414920500 Banjo Bolt
    Banjo Bolt
  • 26
    414920600 Washer
    Washer
  • 27
    507032203 Brake Disk
    Brake Disk
  • 28
    293800070 Loctite 767, Antiseize Lubricant, 8 oz
    Loctite 767, Antiseize Lubricant, 8 oz
  • 29
    507021300 Key
    Key
