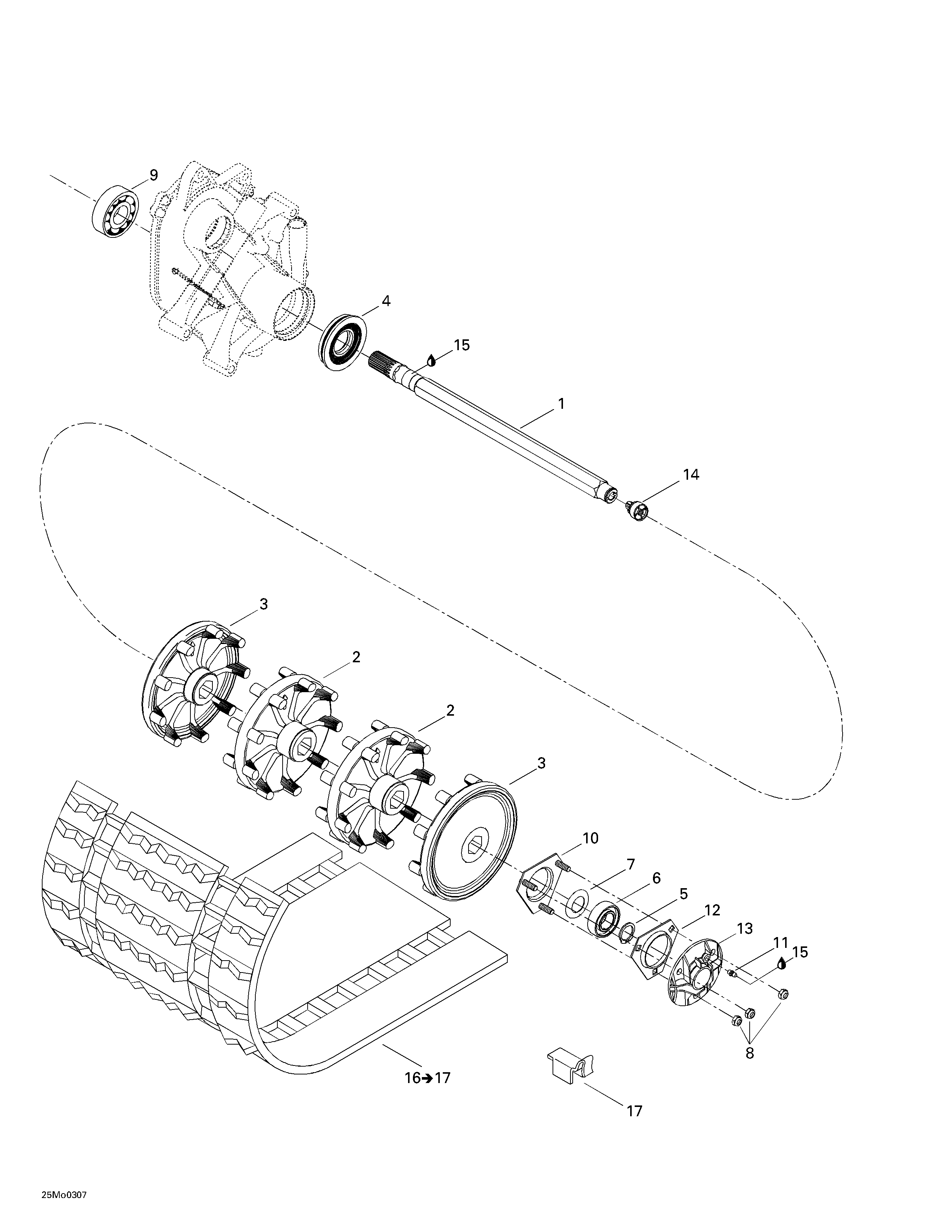

05- Drive Axle And Track для BRP Ski-Doo Legend 500/600/700 - 2003
-
№АртикулНазвание
-
1501027400 Drive AxleDrive Axle
-
2504151781 Sprocket 9-TeethSprocket 9-Teeth
-
3504151782 Half Sprocket 9-TeethHalf Sprocket 9-Teeth
-
4504151918 Oil SealOil Seal
-
5371910200 CirclipCirclip
-
6504152009 Ball BearingBall Bearing
-
7501017400 Ball Bearing ProtectorBall Bearing Protector
-
8233281414 Elastic Stop Nut M8Elastic Stop Nut M8
-
9504152005 Ball BearingBall Bearing
-
10504151860 Bearing HousingBearing Housing
-
11408200700 Grease FittingGrease Fitting
-
12501025000 FlangeFlange
-
13504152173 Flange (Speed Drive Insert)Flange (Speed Drive Insert)
-
14504152040 Magnetic AdaptatorMagnetic Adaptator
-
15219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
16570212600 Track Ass'y (15'' x 121'' x .875''). Includes 16 - 17.Track Ass'y (15'' x 121'' x .875''). Includes 16 - 17.
-
17500003400 Guide CleatGuide Cleat
