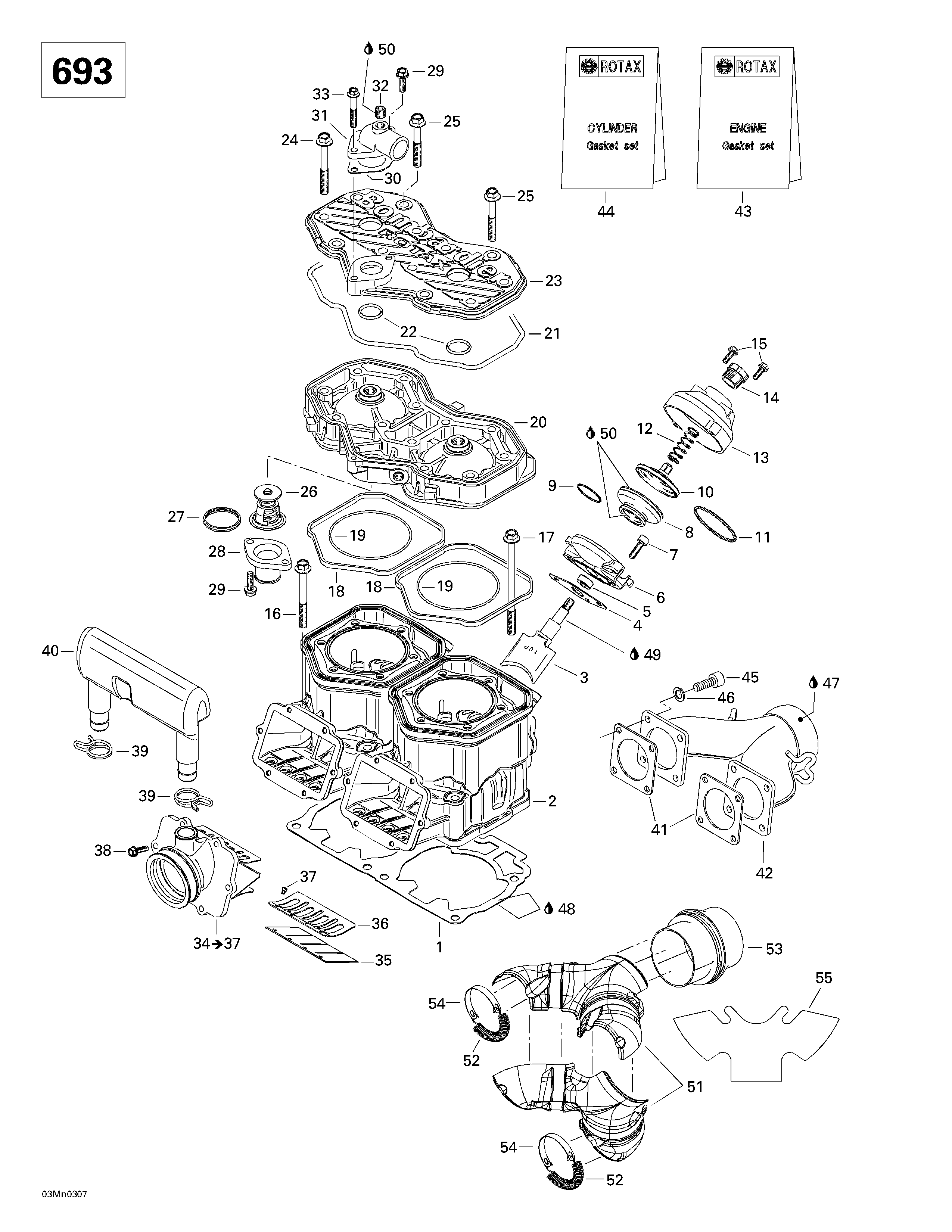

01- Cylinder, Exhaust Manifold, Reed Valve (693) для BRP Ski-Doo Legend 500/600/700 - 2003
-
№АртикулНазвание
-
1420931895 Double Gasket 0.8 mm. Legend 700.Double Gasket 0.8 mm. Legend 700.
-
420931894 Double Gasket 0.7 mm. Legend 700.Double Gasket 0.7 mm. Legend 700.
-
420931892 Double Gasket 0.6 mm. Legend 700.Double Gasket 0.6 mm. Legend 700.
-
420931893 Double Gasket 0.5 mm. Legend 700.Double Gasket 0.5 mm. Legend 700.
-
2420923695 Cylinder with Sleeve (Nicasil). Legend 700.Cylinder with Sleeve (Nicasil). Legend 700.
-
3420854332 Exhaust Valve. Legend 700.Exhaust Valve. Legend 700.
-
4420250239 Gasket. Legend 700.Gasket. Legend 700.
-
5420950730 Oil Seal. Legend 700.Oil Seal. Legend 700.
-
6420854266 Valve Housing. Legend 700.Valve Housing. Legend 700.
-
7205062044 Socket Head Screw M6 x 20. Legend 700.Socket Head Screw M6 x 20. Legend 700.
-
8290260723 Bellows. Legend 700.Bellows. Legend 700.
-
9420838253 Spring Clamp. Legend 700.Spring Clamp. Legend 700.
-
10420854449 Exhaust Valve. Legend 700.Exhaust Valve. Legend 700.
-
11290239048 Hose Spring. Legend 700.Hose Spring. Legend 700.
-
12420239944 Spring. Legend 700.Spring. Legend 700.
-
13420911552 Valve Cover. Legend 700.Valve Cover. Legend 700.
-
14420241221 Adjuster Screw. Legend 700.Adjuster Screw. Legend 700.
-
15420841555 Tapping Screw M5 x 20. Legend 700.Tapping Screw M5 x 20. Legend 700.
-
16420640524 Hex. Screw M10 x 80. Legend 700.Hex. Screw M10 x 80. Legend 700.
-
17420640534 Hex. Screw M10 x 120. Legend 700.Hex. Screw M10 x 120. Legend 700.
-
18420931590 Rubber Ring. Legend 700.Rubber Ring. Legend 700.
-
19420931840 O-Ring. Legend 700.O-Ring. Legend 700.
-
20420613840 Cylinder Head (Silver). Legend 700.Cylinder Head (Silver). Legend 700.
-
21290950320 O-Ring. Legend 700.O-Ring. Legend 700.
-
22420430782 O-Ring. Legend 700.O-Ring. Legend 700.
-
23420923460 Cylinder Head Cover (Silver). Legend 700.Cylinder Head Cover (Silver). Legend 700.
-
24420841306 Hex. Collar Screw M8 x 65. Legend 700.Hex. Collar Screw M8 x 65. Legend 700.
-
25420941621 Hex. Collar Screw M8 x 56.5. Legend 700.Hex. Collar Screw M8 x 56.5. Legend 700.
-
26420922517 Thermostat. Legend 700.Thermostat. Legend 700.
-
27420931272 Sealing Ring. Legend 700.Sealing Ring. Legend 700.
-
28420922025 Bent Outlet Socket. Legend 700.Bent Outlet Socket. Legend 700.
-
29420941250 Screw M6 x 20. Legend 700.Screw M6 x 20. Legend 700.
-
30420850338 Gasket. Legend 700.Gasket. Legend 700.
-
31420922062 Bent Outlet Socket. Legend 700.Bent Outlet Socket. Legend 700.
-
32420240480 Plug Screw 1/8-27 NPT. Legend 700.Plug Screw 1/8-27 NPT. Legend 700.
-
33420941451 Hex. Collar Screw M6 x 40. Legend 700.Hex. Collar Screw M6 x 40. Legend 700.
-
34420867873 Carburetor Socket. Includes 34 - 37. Legend 700.Carburetor Socket. Includes 34 - 37. Legend 700.
-
35420924680 Reed Pedal. Legend 700.Reed Pedal. Legend 700.
-
36420924695 Reed Pedal Stop. Legend 700.Reed Pedal Stop. Legend 700.
-
37420941215 Screw M3 x 5. Legend 700.Screw M3 x 5. Legend 700.
-
38420941925 Screw M5 x 16. Legend 700.Screw M5 x 16. Legend 700.
-
39420851440 Clamp. Legend 700.Clamp. Legend 700.
-
40420867817 Intake Resonator. Legend 700.Intake Resonator. Legend 700.
-
41420850552 Gasket. Legend 700.Gasket. Legend 700.
-
42420973593 Exhaust Manifold. Legend 700.Exhaust Manifold. Legend 700.
-
43420888604 Engine Gasket Set. Legend 700.Engine Gasket Set. Legend 700.
-
44420888608 Cylinder Gasket Set. Legend 700.Cylinder Gasket Set. Legend 700.
-
45205062044 Socket Head Screw M6 x 20. Legend 700.Socket Head Screw M6 x 20. Legend 700.
-
46234161471 Lock Washer 6 mm. Legend 700.Lock Washer 6 mm. Legend 700.
-
47413710300 Sealant, Loctite 17914, 80 ml. Legend 700.Sealant, Loctite 17914, 80 ml. Legend 700.
-
48293800038 Loctite 518, 50 ml. Legend 700.Loctite 518, 50 ml. Legend 700.
-
49711297433 Molykote G-n Paste, Dow Corning, 50 g. Legend 700.Molykote G-n Paste, Dow Corning, 50 g. Legend 700.
-
50420297906 Sealing Compound, 30 ml. Legend 700.Sealing Compound, 30 ml. Legend 700.
-
51514053593 Manifold Exhaust Enveloppe. Legend 700.Manifold Exhaust Enveloppe. Legend 700.
-
52514053643 Spring. Legend 700.Spring. Legend 700.
-
53514053487 Exhaust Gasket. Legend 700.Exhaust Gasket. Legend 700.
-
54514053603 Retaining Strap. Legend 700.Retaining Strap. Legend 700.
-
55514053588 Insulating Wool. Legend 700.Insulating Wool. Legend 700.
