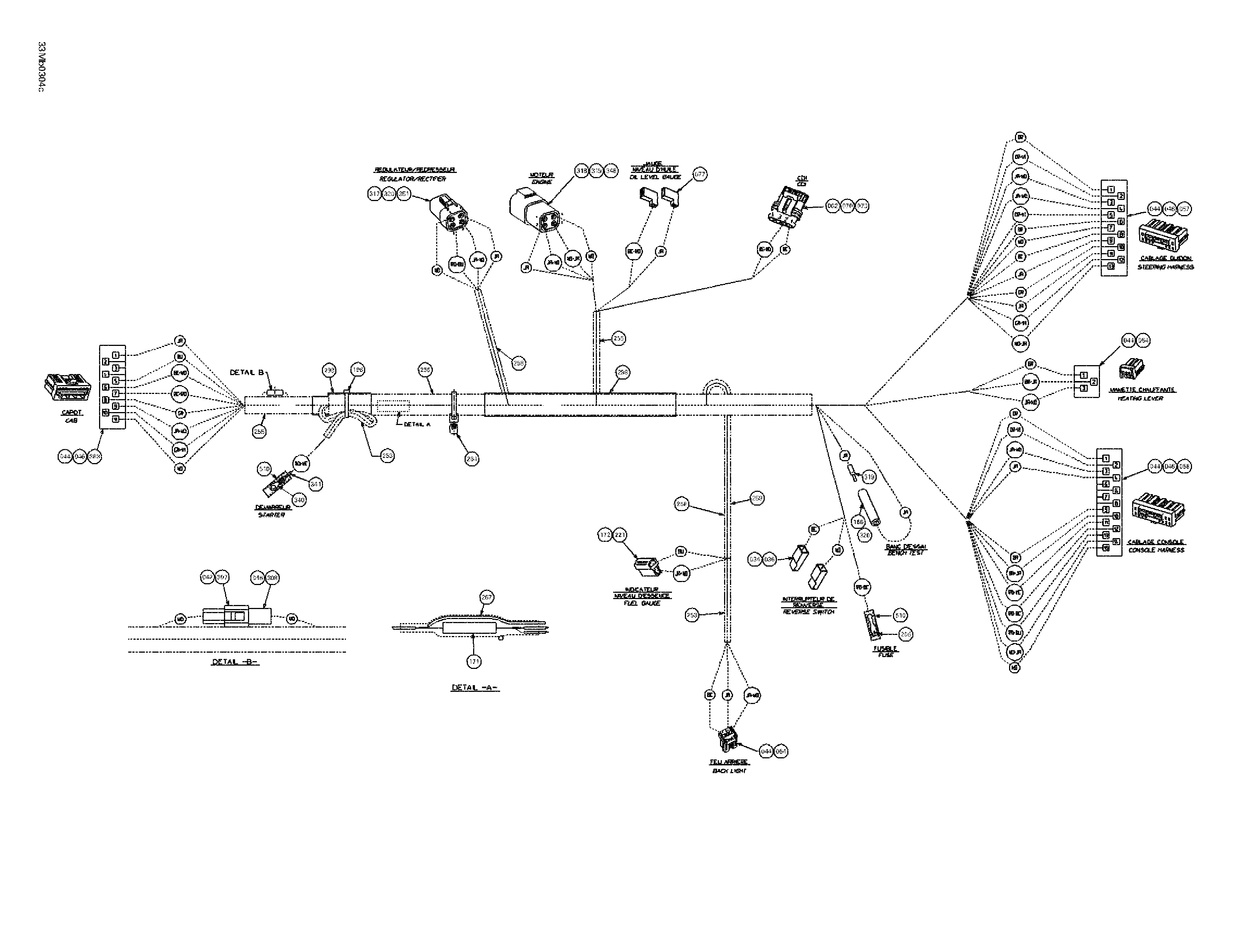

10- Frame Harness для BRP Ski-Doo Legend 380F/550F - 2003

  • №
    Артикул
    Название
  • 34
    515175841 Frame Harness. Includes 34 - 510.
    Frame Harness. Includes 34 - 510.
  • 34
    409010100 Female Terminal
    Female Terminal
  • 36
    409010400 Female Terminal Housing (1 Circuit)
    Female Terminal Housing (1 Circuit)
  • 42
    515175273 Male Terminal
    Male Terminal
  • 44
    515175231 Female Terminal
    Female Terminal
  • 46
    515175282 Female Terminal
    Female Terminal
  • 54
    515175495 Female Terminal Housing (3 Circuits)
    Female Terminal Housing (3 Circuits)
  • 57
    515175350 Female Terminal Housing (13 Circuits)
    Female Terminal Housing (13 Circuits)
  • 58
    515175349 Female Terminal Housing (15 Circuits)
    Female Terminal Housing (15 Circuits)
  • 62
    278001014 Female Terminal
    Female Terminal
  • 70
    409209700 Female Terminal Housing (4 Circuits)
    Female Terminal Housing (4 Circuits)
  • 73
    278001013 Wire Seal
    Wire Seal
  • 77
    409010300 Female Terminal
    Female Terminal
  • 168
    515175259 Joint Housing
    Joint Housing
  • 171
    515175241 Resistance
    Resistance
  • 172
    561503100 Female Terminal
    Female Terminal
  • 196
    293750002 Tie-Rap 130 mm
    Tie-Rap 130 mm
  • 221
    409204600 Female Terminal Housing (2 Circuits)
    Female Terminal Housing (2 Circuits)
  • 253
    409902100 Tubing (6 mm)
    Tubing (6 mm)
  • 255
    409901800 Tubing (13 mm)
    Tubing (13 mm)
  • 256
    415080000 Tubing (16 mm)
    Tubing (16 mm)
  • 258
    415079900 Tubing (10 mm)
    Tubing (10 mm)
  • 264
    515175220 Tie-Rap
    Tie-Rap
  • 298
    293740005 Vinyl Tape 3/4''
    Vinyl Tape 3/4''
  • 302
    293750001 Tie-Rap 94 mm
    Tie-Rap 94 mm
  • 304
    515175504 Ring Terminal
    Ring Terminal
  • 307
    515175509 Male Terminal Housing (1 Circuit)
    Male Terminal Housing (1 Circuit)
  • 308
    515175510 Female Terminal Housing (1 Circuit)
    Female Terminal Housing (1 Circuit)
  • 317
    278001473 Female Terminal Housing (4 Circuits)
    Female Terminal Housing (4 Circuits)
  • 318
    278001477 Male Terminal Housing (4 Circuits)
    Male Terminal Housing (4 Circuits)
  • 319
    515175568 Male Terminal
    Male Terminal
  • 320
    515175567 Female Terminal
    Female Terminal
  • 346
    278001478 (Female) Secondary Lock (4 Circuits) (Deutsch)
    (Female) Secondary Lock (4 Circuits) (Deutsch)
  • 351
    278001474 Male Lock (4 Circuits)
    Male Lock (4 Circuits)
  • 383
    515175719 Female Terminal Housing (11 Circuits)
    Female Terminal Housing (11 Circuits)
  • 510
    415079200 Hose
    Hose
