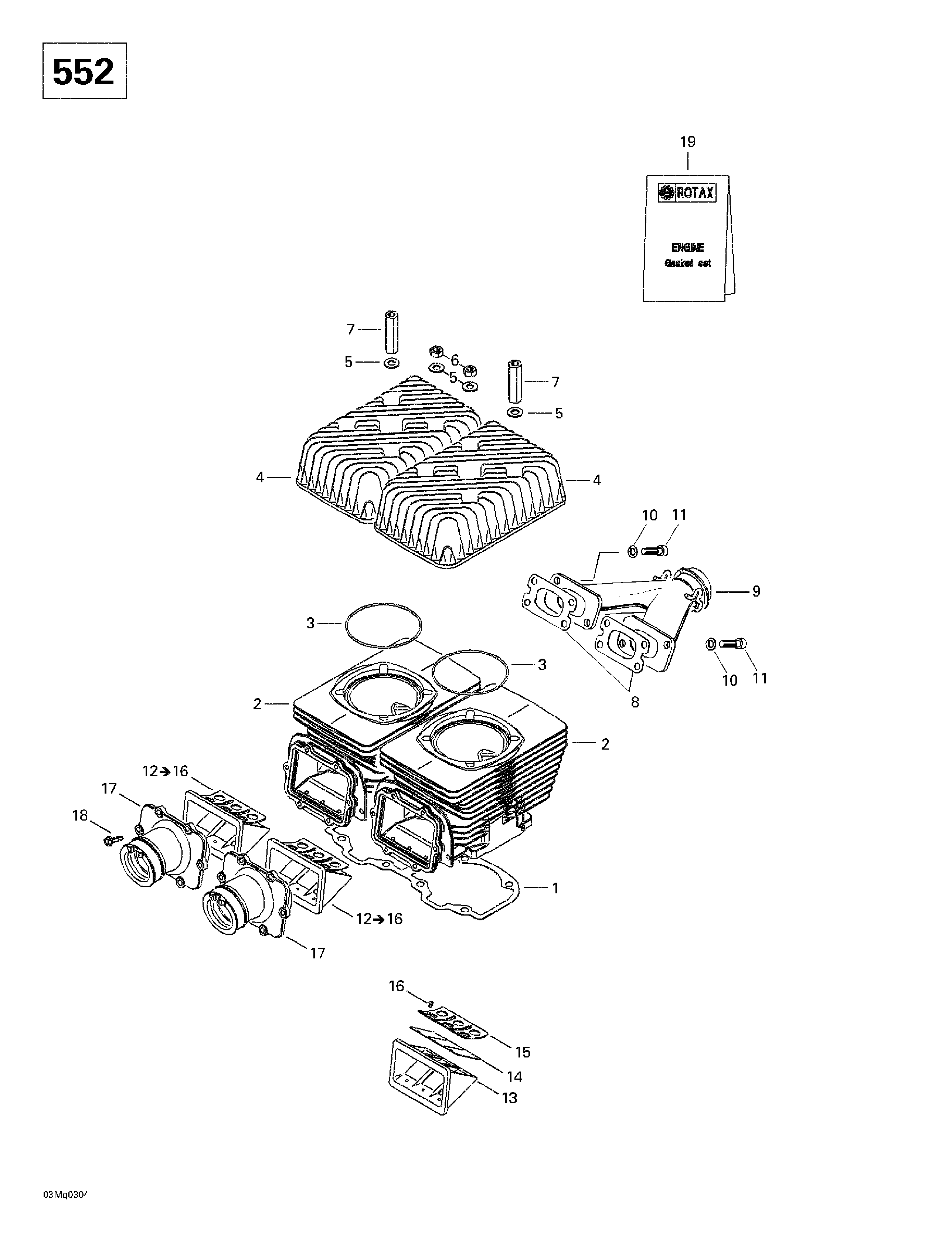

01- Cylinder, Exhaust Manifold (552) для BRP Ski-Doo Legend 380F/550F - 2003
-
№АртикулНазвание
-
1420950910 Gasket 0.3 mm. MX Z 550 F. Legend 550 F.Gasket 0.3 mm. MX Z 550 F. Legend 550 F.
-
420950911 Gasket 0.4 mm. MX Z 550 F. Legend 550 F.Gasket 0.4 mm. MX Z 550 F. Legend 550 F.
-
420950912 Gasket 0.6 mm. MX Z 550 F. Legend 550 F.Gasket 0.6 mm. MX Z 550 F. Legend 550 F.
-
2420923975 Cylinder With Sleeve. MX Z 550 F. Legend 550 F.Cylinder With Sleeve. MX Z 550 F. Legend 550 F.
-
3293300026 O-Ring. MX Z 550 F. Legend 550 F.O-Ring. MX Z 550 F. Legend 550 F.
-
4420923595 Cylinder Head. MX Z 550 F. Legend 550 F.Cylinder Head. MX Z 550 F. Legend 550 F.
-
5420250311 Washer 8.4 mm. MX Z 550 F. Legend 550 F.Washer 8.4 mm. MX Z 550 F. Legend 550 F.
-
6232081414 Hex. Nut M8. MX Z 550 F. Legend 550 F.Hex. Nut M8. MX Z 550 F. Legend 550 F.
-
7420842203 Distance Nut M8. MX Z 550 F. Legend 550 F.Distance Nut M8. MX Z 550 F. Legend 550 F.
-
8420831849 Gasket 1 mm. MX Z 550 F. Legend 550 F.Gasket 1 mm. MX Z 550 F. Legend 550 F.
-
9420673065 Exhaust Manifold. MX Z 550 F. Legend 550 F.Exhaust Manifold. MX Z 550 F. Legend 550 F.
-
10234181401 Lock Washer 8 mm. MX Z 550 F. Legend 550 F.Lock Washer 8 mm. MX Z 550 F. Legend 550 F.
-
11205083044 Socket Head Screw M8 x 30. MX Z 550 F. Legend 550 F.Socket Head Screw M8 x 30. MX Z 550 F. Legend 550 F.
-
12420924519 Reed Valve Ass'y. Includes 12 - 16. MX Z 550 F. Legend 550 F.Reed Valve Ass'y. Includes 12 - 16. MX Z 550 F. Legend 550 F.
-
14420924532 Reed Pedal. MX Z 550 F. Legend 550 F.Reed Pedal. MX Z 550 F. Legend 550 F.
-
15420924539 Reed Pedal Stop. MX Z 550 F. Legend 550 F.Reed Pedal Stop. MX Z 550 F. Legend 550 F.
-
16420941215 Oval Head Screw M3 x 25. MX Z 550 F. Legend 550 F.Oval Head Screw M3 x 25. MX Z 550 F. Legend 550 F.
-
17420867100 Carburetor Socket. MX Z 550 F. Legend 550 F.Carburetor Socket. MX Z 550 F. Legend 550 F.
-
18420941925 Tapping Screw M5 x 16. MX Z 550 F. Legend 550 F.Tapping Screw M5 x 16. MX Z 550 F. Legend 550 F.
-
19420889910 Gasket Set. MX Z 550 F. Legend 550 F.Gasket Set. MX Z 550 F. Legend 550 F.
