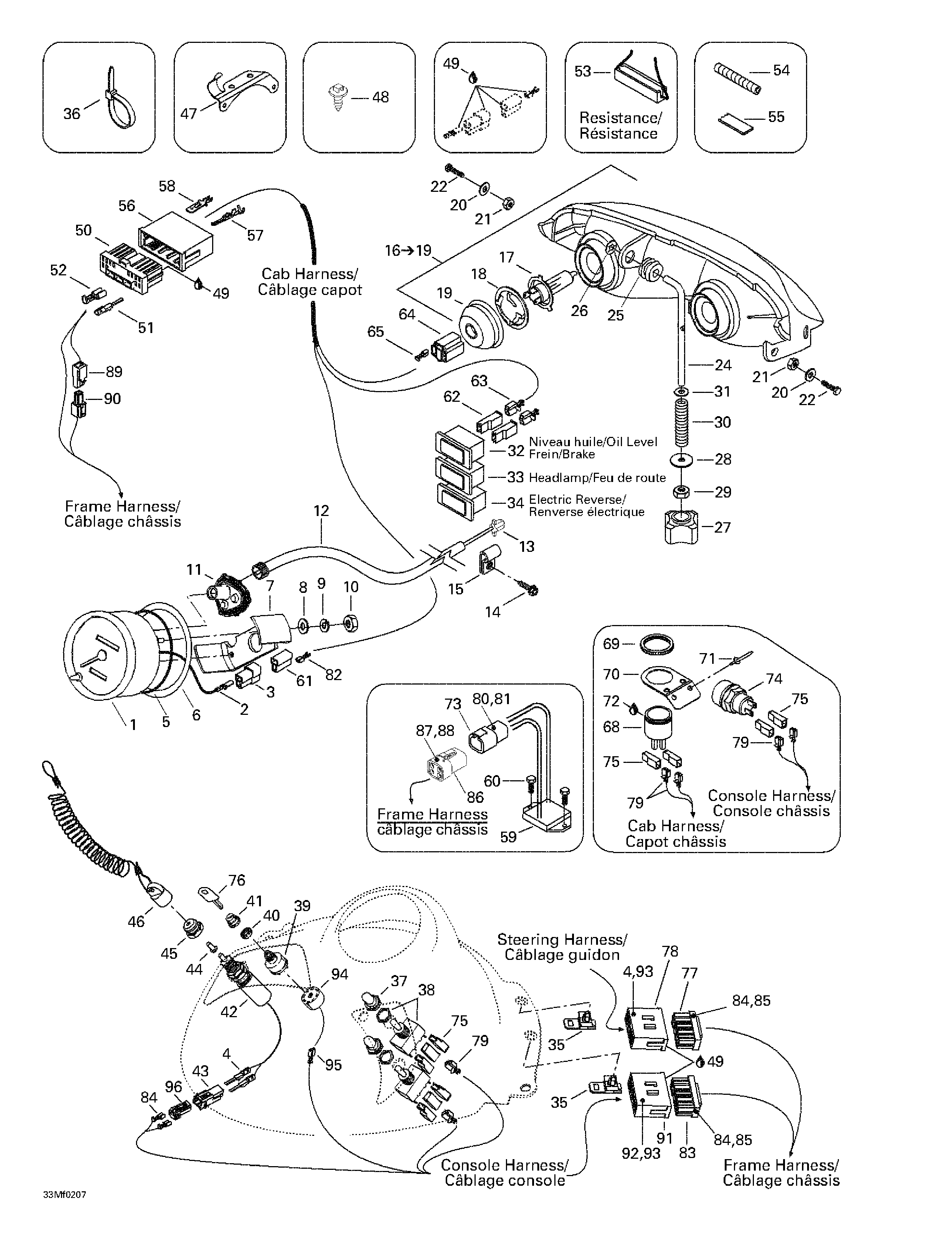

10- Electrical System для BRP Ski-Doo Summit 500 F - 2002
-
№АртикулНазвание
-
1515175335 Speedometer (KMH)Speedometer (KMH)
-
515175336 Speedometer (MPH)Speedometer (MPH)
-
2409210000 Male TerminalMale Terminal
-
3409204500 Male Terminal Housing (2 circuits)Male Terminal Housing (2 circuits)
-
4515175232 Male TerminalMale Terminal
-
5414807100 O-RingO-Ring
-
6517258500 WasherWasher
-
7414806500 Case HolderCase Holder
-
8391301700 Flat WasherFlat Washer
-
9414806700 Lock WasherLock Washer
-
10414806900 NutNut
-
11515175400 Drive AngleDrive Angle
-
12415101500 Speedometer CableSpeedometer Cable
-
13572010100 Speedometer Drive InsertSpeedometer Drive Insert
-
15414176000 Clip (Cable)Clip (Cable)
-
16515175517 Halogen Headlamp. Includes 16 - 19.Halogen Headlamp. Includes 16 - 19.
-
17410504401 Halogen Bulb 60/55 WHalogen Bulb 60/55 W
-
18410608300 Bulb HolderBulb Holder
-
19410607100 Protector CapProtector Cap
-
20234051410 Flat WasherFlat Washer
-
21250100018 Nut M5Nut M5
-
22207053544 Hex. Screw M5 x 35Hex. Screw M5 x 35
-
23515175622 Frame Harness (Not Shown)Frame Harness (Not Shown)
-
24517295800 Adjuster RodAdjuster Rod
-
25415100800 GrommetGrommet
-
26732610072 Push NutPush Nut
-
27515175548 HandleHandle
-
28224060251 WasherWasher
-
29232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
30415100600 SpringSpring
-
31234061410 Flat Washer 6 mmFlat Washer 6 mm
-
32515175728 Pilot Lamp (Oil Level/Brake)Pilot Lamp (Oil Level/Brake)
-
33515175726 Pilot Lamp (Headlamp)Pilot Lamp (Headlamp)
-
34410113400 Pilot Lamp (Electric Reverse)Pilot Lamp (Electric Reverse)
-
35515175283 Housing supportHousing support
-
36293750001 Tie Rap 94 mmTie Rap 94 mm
-
293750002 Tie Rap 130 mmTie Rap 130 mm
-
293750009 Tie Rap 160 mmTie Rap 160 mm
-
414115200 Tie Rap 180 mmTie Rap 180 mm
-
293750008 Tie Rap 350 mmTie Rap 350 mm
-
515175220 Tie RapTie Rap
-
37515175281 Switch CoverSwitch Cover
-
38410107300 Switch (Heating Grip)Switch (Heating Grip)
-
39410113602 Ignition SwitchIgnition Switch
-
40410112100 Face NutFace Nut
-
41570013700 Switch BootSwitch Boot
-
42515175653 Brake SwitchBrake Switch
-
43515175654 Male Terminal Housing (2 Circuits)Male Terminal Housing (2 Circuits)
-
44570151100 Plunger CapPlunger Cap
-
45515145900 Switch NutSwitch Nut
-
46515151500 Cap Ass'yCap Ass'y
-
47515175254 Cable SupportCable Support
-
48293730018 Dart MountDart Mount
-
49293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
50515175350 Female Terminal Housing (13 circuits)Female Terminal Housing (13 circuits)
-
51515175231 Female TerminalFemale Terminal
-
52515175282 Female TerminalFemale Terminal
-
53515175241 Resistance (50 ohms)Resistance (50 ohms)
-
54409902100 Tubing (6 mm)Tubing (6 mm)
-
415079900 Tubing (10 mm)Tubing (10 mm)
-
409901800 Tubing (13 mm)Tubing (13 mm)
-
415080000 Tubing (16 mm)Tubing (16 mm)
-
55293740005 Vinyl Tape 3/4''Vinyl Tape 3/4''
-
56515175352 Male Terminal Housing (13 circuits)Male Terminal Housing (13 circuits)
-
57515175232 Male TerminalMale Terminal
-
58515175273 Male TerminalMale Terminal
-
59515175655 Voltage RegulatorVoltage Regulator
-
60210261680 Hex. Forming Screw M6 x 16Hex. Forming Screw M6 x 16
-
61409204600 Female Terminal Housing (2 circuits)Female Terminal Housing (2 circuits)
-
62409010400 Female Terminal Housing (1 circuit)Female Terminal Housing (1 circuit)
-
63409010100 Female TerminalFemale Terminal
-
64409202700 Female Terminal Housing (3 circuits)Female Terminal Housing (3 circuits)
-
65515175320 Female TerminalFemale Terminal
-
66515175636 Hood Harness (Not Shown)Hood Harness (Not Shown)
-
67515175623 Console Harness (Not Shown)Console Harness (Not Shown)
-
68415060900 HornHorn
-
69414805101 Plastic NutPlastic Nut
-
70515175688 Painted PlatePainted Plate
-
71390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
72296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
73278001477 Female Terminal Housing (4 Circuits)Female Terminal Housing (4 Circuits)
-
74415101200 Reverse KnobReverse Knob
-
75409010400 Female Terminal Housing (6 Circuits)Female Terminal Housing (6 Circuits)
-
76414991700 Blank KeyBlank Key
-
77515175350 Female Terminal Housing (13 Circuits)Female Terminal Housing (13 Circuits)
-
78515175352 Male Terminal Housing (13 Circuits)Male Terminal Housing (13 Circuits)
-
79409010100 Female TerminalFemale Terminal
-
80278001478 (Female) Secondary Lock (4 Circuits) (Deutsch)(Female) Secondary Lock (4 Circuits) (Deutsch)
-
82561503100 Female TerminalFemale Terminal
-
83515175349 Female Terminal Housing (13 Circuits)Female Terminal Housing (13 Circuits)
-
84515175231 Female TerminalFemale Terminal
-
85515175282 Female TerminalFemale Terminal
-
86278001473 Female Terminal Housing (4 Circuits)Female Terminal Housing (4 Circuits)
-
87278001474 Male LockMale Lock
-
88515175567 Female TerminalFemale Terminal
-
89515175509 Male Terminal Housing (1 Circuit)Male Terminal Housing (1 Circuit)
-
90515175510 Female Terminal Housing (1 Circuit)Female Terminal Housing (1 Circuit)
-
91515175351 Male Terminal Housing (13 Circuits)Male Terminal Housing (13 Circuits)
-
92515175232 Male TerminalMale Terminal
-
93515175273 Male TerminalMale Terminal
-
94572150700 Female Terminal Housing (9 Circuits)Female Terminal Housing (9 Circuits)
-
95409203300 Female TerminalFemale Terminal
-
96515175658 Female Terminal Housing (2 Circuits)Female Terminal Housing (2 Circuits)
