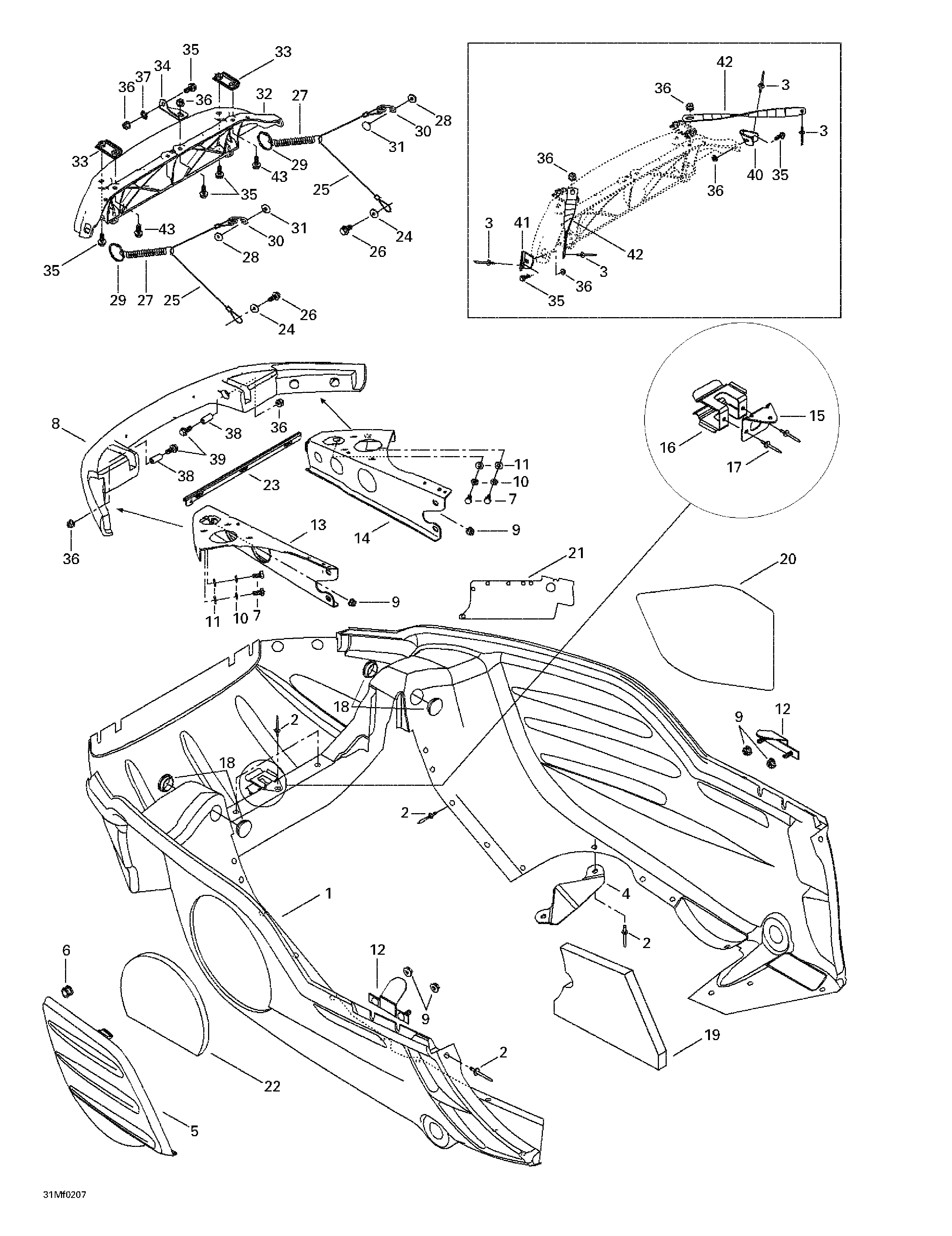

09- Bottom Pan для BRP Ski-Doo Summit 500 F - 2002
-
№АртикулНазвание
-
1502006633 Bottom Pan (Black (B-160))Bottom Pan (Black (B-160))
-
2390907700 Pop Rivet 3/16'' (Black (B-160))Pop Rivet 3/16'' (Black (B-160))
-
3390406500 Pop Rivet 3/16''Pop Rivet 3/16''
-
4502006637 Snow DefelctorSnow Defelctor
-
5502006506 Bottom Pan Door (Black (B-160))Bottom Pan Door (Black (B-160))
-
6414036300 GrommetGrommet
-
7207161444 Hex. Screw M6 x 14Hex. Screw M6 x 14
-
8502006536 Bumper (Black (B-160))Bumper (Black (B-160))
-
9233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
10234161471 Lock Washer 6 mmLock Washer 6 mm
-
11224061121 Flat WasherFlat Washer
-
12502006645 BracketBracket
-
13502006597 L.H. SupportL.H. Support
-
14502006596 R.H. SupportR.H. Support
-
15502006599 Belt SupportBelt Support
-
16517281905 BracketBracket
-
17390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
18414916600 Nylon CapNylon Cap
-
19502006558 Bottom FoamBottom Foam
-
20514052718 Reflective SheetReflective Sheet
-
21514053390 Reflective SheetReflective Sheet
-
22502006559 Bottom Pan Door FoamBottom Pan Door Foam
-
23502006647 Bottom Pan ReinforcementBottom Pan Reinforcement
-
24391301600 WasherWasher
-
25415093900 Retainer CableRetainer Cable
-
27415043300 SpringSpring
-
28517124300 WasherWasher
-
29415058300 RingRing
-
30517262800 BracketBracket
-
31390409600 Pop Rivet 3/16''Pop Rivet 3/16''
-
32517302631 HingeHinge
-
33517302176 Hinge Side PlateHinge Side Plate
-
34517302045 Hinge Center PlateHinge Center Plate
-
35207661684 Hex. Flanged Screw M6 x 16Hex. Flanged Screw M6 x 16
-
36233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
37250200000 Serrated Lock Washer 6 mmSerrated Lock Washer 6 mm
-
38517302179 BushingBushing
-
39207663544 Hex. Flanged Screw M6 x 35Hex. Flanged Screw M6 x 35
-
40517302254 R.H. Corner SupportR.H. Corner Support
-
41517302255 L.H. Corner SupportL.H. Corner Support
-
42517302256 Hood ClampHood Clamp
-
43207662544 Hex. Flanged Screw M6 x 25Hex. Flanged Screw M6 x 25
