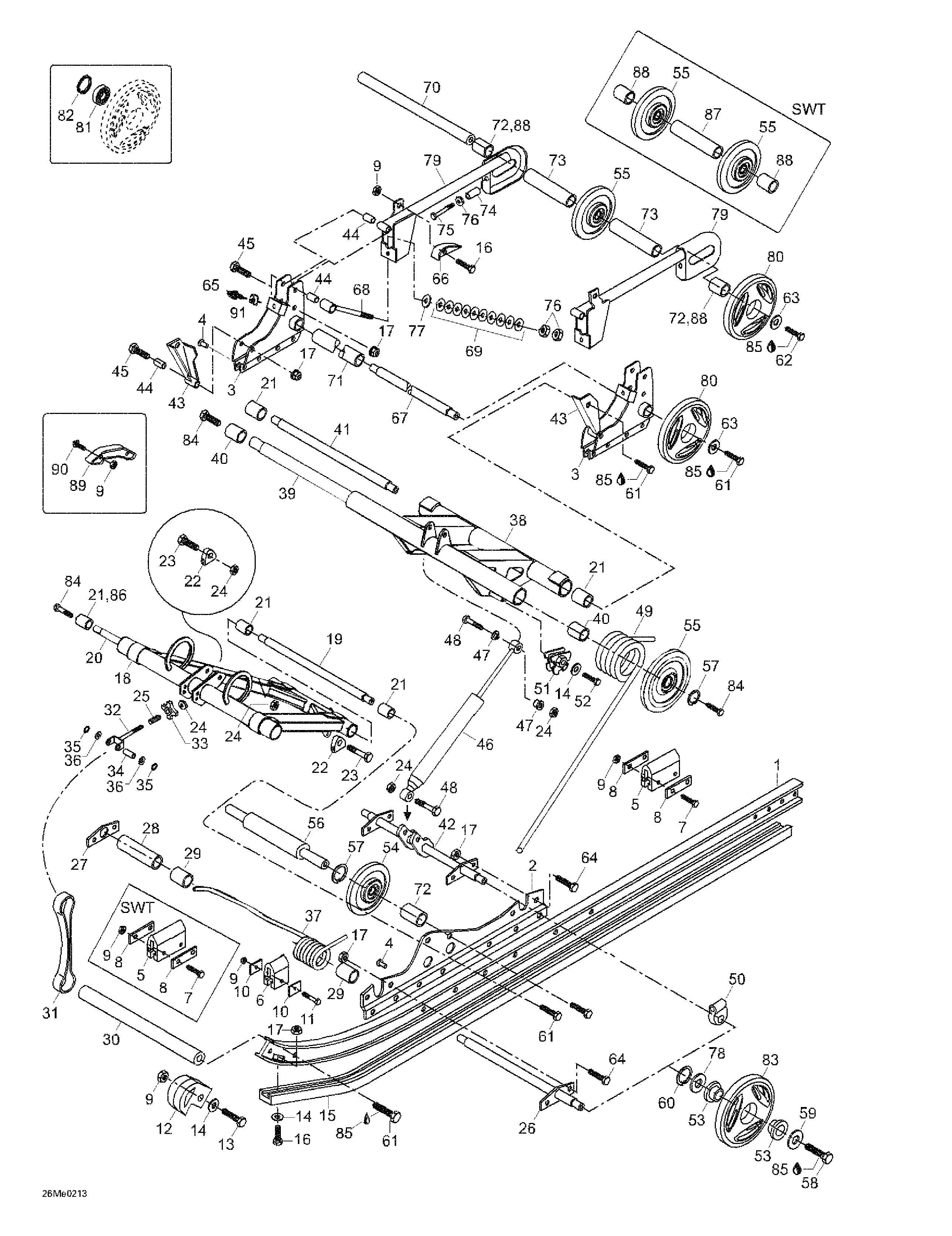

08- Rear Suspension для BRP Ski-Doo Skandic 500/600 - 2002
-
№АртикулНазвание
-
1M5142866 R.H. Runner Ass'y. Includes 1 - 4.R.H. Runner Ass'y. Includes 1 - 4.
-
M5142865 L.H. Runner Ass'yL.H. Runner Ass'y
-
1M5142864 RunnerRunner
-
2M5344811 R.H. SupportR.H. Support
-
M5344810 L.H. SupportL.H. Support
-
3M539673 R.H. SupportR.H. Support
-
M539672 L.H. SupportL.H. Support
-
4M544212 RivetRivet
-
5570023100 Rubber StopperRubber Stopper
-
6M5442328 Rubber Stopper. Skandic 500F. Skandic 600.Rubber Stopper. Skandic 500F. Skandic 600.
-
7207064044 Screw M6 x 40Screw M6 x 40
-
8M548387 PlatePlate
-
9M33200 Nut M6Nut M6
-
10M548470 Plate. Skandic 500F. Skandic 600.Plate. Skandic 500F. Skandic 600.
-
11207063044 Screw M6 x 30. Skandic 500F. Skandic 600.Screw M6 x 30. Skandic 500F. Skandic 600.
-
12M534578 Runner ProtectorRunner Protector
-
13207162544 Hex. Screw M6 x 25Hex. Screw M6 x 25
-
14234061410 WasherWasher
-
15M549582 Shoe RunnerShoe Runner
-
16207162044 Hex. Screw M6 x 20Hex. Screw M6 x 20
-
17232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
18M5245898 Front Arm Welded. Skandic 500F. Skandic 600.Front Arm Welded. Skandic 500F. Skandic 600.
-
M5242808 Front Arm Welded. Skandic 500F (SWT).Front Arm Welded. Skandic 500F (SWT).
-
19M549695 AxleAxle
-
20M542793 Axle. Skandic 500F. Skandic 600.Axle. Skandic 500F. Skandic 600.
-
M542794 Axle. Skandic 500F (SWT).Axle. Skandic 500F (SWT).
-
21M542770 SleeveSleeve
-
22M548799 Spring SupportSpring Support
-
23207004044 Screw M10 x 40Screw M10 x 40
-
24233601416 Elastic Stop Nut M10Elastic Stop Nut M10
-
25414460600 SpringSpring
-
26M5345453 AxleAxle
-
27M548469 Support PLateSupport PLate
-
28M5440313 SleeveSleeve
-
29M548841 SleeveSleeve
-
30M549718 Cross ShaftCross Shaft
-
31M5442604 Stopper StrapStopper Strap
-
32M5441643 Eye Bolt AdjusterEye Bolt Adjuster
-
33572034000 Adjuster KnobAdjuster Knob
-
34M5441645 PinPin
-
35M41035 CirclipCirclip
-
36234001410 WasherWasher
-
37M5241177 L.H. Spring. Skandic 500F. Skandic 600.L.H. Spring. Skandic 500F. Skandic 600.
-
M5241178 R.H. Spring. Skandic 500F. Skandic 600.R.H. Spring. Skandic 500F. Skandic 600.
-
M538797 L.H. Spring. Skandic 500F (SWT).L.H. Spring. Skandic 500F (SWT).
-
M538798 R.H. Spring. Skandic 500F (SWT).R.H. Spring. Skandic 500F (SWT).
-
38M5343493 Rear Arm Welded. Skandic 500F. Skandic 600.Rear Arm Welded. Skandic 500F. Skandic 600.
-
M5343096 Rear Arm Welded. Skandic 500F (SWT).Rear Arm Welded. Skandic 500F (SWT).
-
39M5343492 Rear Cross Shaft. Skandic 500F. Skandic 600.Rear Cross Shaft. Skandic 500F. Skandic 600.
-
M5340577 Rear Cross Shaft. Skandic 500F (SWT).Rear Cross Shaft. Skandic 500F (SWT).
-
40M31046 Slide BearingSlide Bearing
-
41M549656 AxleAxle
-
42M5345454 ShaftShaft
-
43M5440349 Lever-L.HLever-L.H
-
M5440350 Lever R.HLever R.H
-
44M545758 SleeveSleeve
-
45207084544 Hex. Screw M8 x 45Hex. Screw M8 x 45
-
46M23016 ShockShock
-
47M544417 CushionCushion
-
48207005044 Hex. Screw M10 x 50Hex. Screw M10 x 50
-
49M538805 L.H. SpringL.H. Spring
-
M538806 R.H. SpringR.H. Spring
-
50M548804 Spring Support. Skandic 500F. Skandic 600.Spring Support. Skandic 500F. Skandic 600.
-
M5442112 Spring Support. Skandic 500F (SWT).Spring Support. Skandic 500F (SWT).
-
51572030800 L.H. Cam AdjusterL.H. Cam Adjuster
-
572030900 R.H. Cam AdjusterR.H. Cam Adjuster
-
52207161044 Hex. Screw M6 x 10Hex. Screw M6 x 10
-
53503189534 CushionCushion
-
54503188997 Wheel 135. Skandic 500F. Skandic 500F (SWT).Wheel 135. Skandic 500F. Skandic 500F (SWT).
-
503188998 Wheel 139. Skandic 600.Wheel 139. Skandic 600.
-
55503189568 Idler Wheel 165Idler Wheel 165
-
56M549680 Shaft SupportShaft Support
-
57M31001 CirclipCirclip
-
58M40336 Screw M8 x 20Screw M8 x 20
-
59503183100 WasherWasher
-
60M31007 CirclipCirclip
-
61M40335 ScrewScrew
-
62250000019 Hex. Screw with CapHex. Screw with Cap
-
63503183300 WasherWasher
-
64207181644 Hex. Screw M8 x 16Hex. Screw M8 x 16
-
65M535455 Rubber StopperRubber Stopper
-
66M548262 ProtectorProtector
-
67M541816 ShaftShaft
-
68M5440377 Eye Bolt AdjusterEye Bolt Adjuster
-
69M25004 PlatePlate
-
70M5343284 Shaft. Skandic 500F. Skandic 600.Shaft. Skandic 500F. Skandic 600.
-
M5341979 Shaft. Skandic 500F (SWT).Shaft. Skandic 500F (SWT).
-
71M541815 SleeveSleeve
-
72M546577 SleeveSleeve
-
73M5443285 Sleeve. Skandic 500F. Skandic 600.Sleeve. Skandic 500F. Skandic 600.
-
74M546668 SleeveSleeve
-
75M40239 Screw M10 x 100Screw M10 x 100
-
76232006414 Nut M10Nut M10
-
77M20011 WasherWasher
-
78M31091 ShimShim
-
79M5243222 R.H. ExtensionR.H. Extension
-
M5243223 L.H. ExtensionL.H. Extension
-
80503189566 Bond Wheel 165Bond Wheel 165
-
81405404500 Ball Bearing 6205Ball Bearing 6205
-
82M31002 CirclipCirclip
-
83572097612 Bonded Wheel 135. Skandic 500F. Skandic 500F (SWT).Bonded Wheel 135. Skandic 500F. Skandic 500F (SWT).
-
503189094 Wheel 139. Skandic 600.Wheel 139. Skandic 600.
-
84M40314 Screw M10 x 30Screw M10 x 30
-
85293800060 Loctite 243, 10 mLLoctite 243, 10 mL
-
86M541528 Sleeve. Skandic 500F (SWT).Sleeve. Skandic 500F (SWT).
-
87M5441980 Sleeve. Skandic 500F (SWT).Sleeve. Skandic 500F (SWT).
-
88M5440422 Sleeve. Skandic 500F (SWT).Sleeve. Skandic 500F (SWT).
-
89M5343191 Protector. Skandic 500F (SWT).Protector. Skandic 500F (SWT).
-
90M40064 Hex. Screw M6 x 40. Skandic 500F (SWT).Hex. Screw M6 x 40. Skandic 500F (SWT).
-
91M5440645 Adjusting PlateAdjusting Plate
