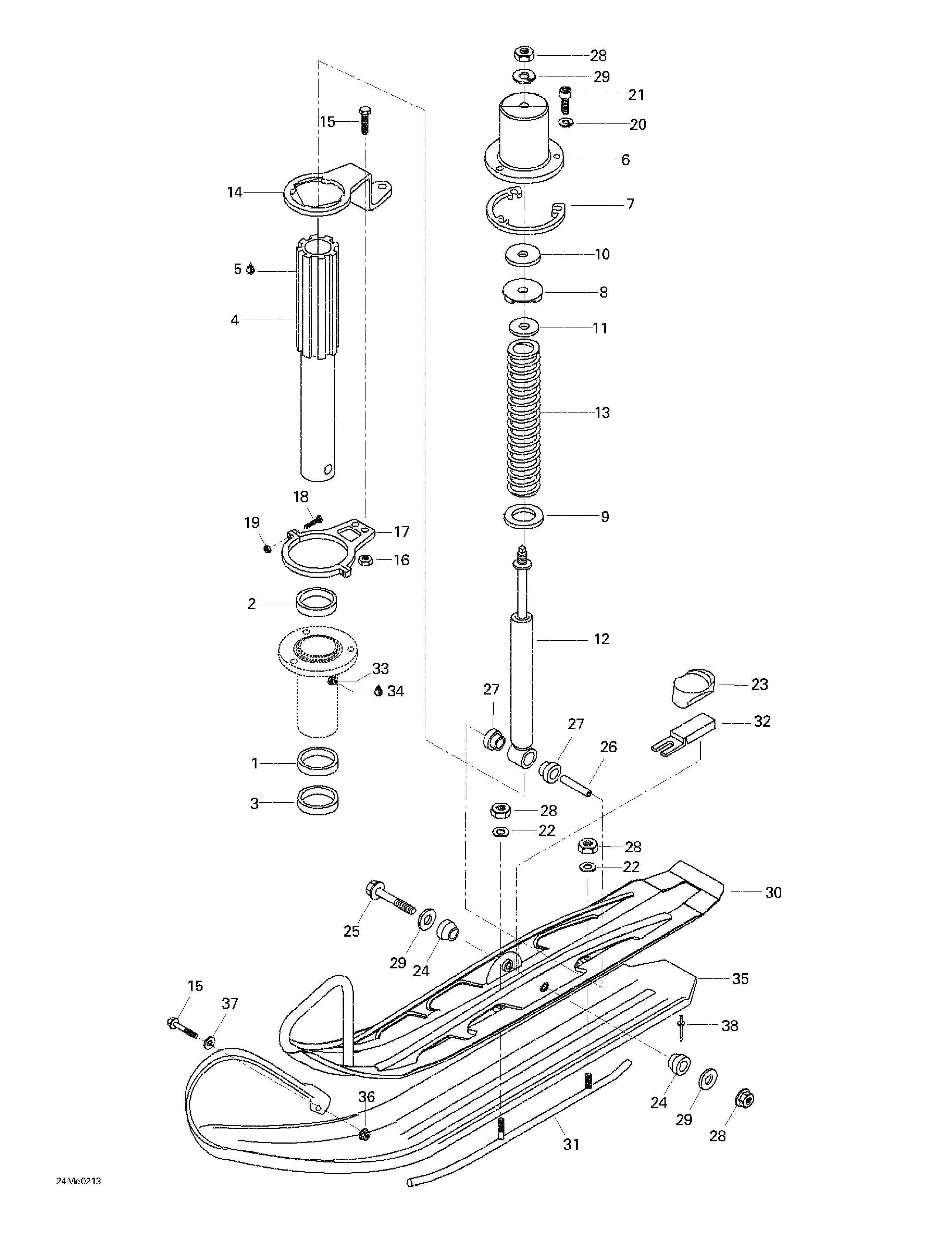

07- Front Suspension And Ski для BRP Ski-Doo Skandic 500/600 - 2002
-
№АртикулНазвание
-
1414803200 Lower CushionLower Cushion
-
2414803100 Upper CushionUpper Cushion
-
3M316373 Oil SealOil Seal
-
4M5245362 Ski LegSki Leg
-
5219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
6M5244225 Welded CoverWelded Cover
-
7503145600 SpacerSpacer
-
8570025800 StopperStopper
-
9M549493 WasherWasher
-
10M5440399 WasherWasher
-
11M549492 PlatePlate
-
12M23018 ShockShock
-
13M5241330 SpringSpring
-
14M5244182 Arm-SteeringArm-Steering
-
15207162544 Screw Hex. M8 x 25Screw Hex. M8 x 25
-
16M33200 Nut M6Nut M6
-
17M5344180 Support Ass'ySupport Ass'y
-
18M40146 Socket Head Screw M4 x 20Socket Head Screw M4 x 20
-
19232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
20234181401 Lock Washer 8 mmLock Washer 8 mm
-
21205082044 Socket Head Screw M8 x 20Socket Head Screw M8 x 20
-
22234001410 WasherWasher
-
23M5341750 StopperStopper
-
24M547543 CushionCushion
-
25M40354 Hex. Screw M10 x 125Hex. Screw M10 x 125
-
26M549716 SpacerSpacer
-
27572034500 CushionCushion
-
28233601416 Elastic Stop Nut M10Elastic Stop Nut M10
-
29M20012 Washer 10 mmWasher 10 mm
-
30M5245338 Welded SkiWelded Ski
-
31M5344021 Carbide Ski RunnerCarbide Ski Runner
-
32M5445639 Support PlateSupport Plate
-
33M34019 Grease FittingGrease Fitting
-
34219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
35M5144415 Ski Liner 200 mm. Skandic 500F (SWT). Skandic 600.Ski Liner 200 mm. Skandic 500F (SWT). Skandic 600.
-
36232561414 Elastic Stop Nut M6. Skandic 500F (SWT). Skandic 600.Elastic Stop Nut M6. Skandic 500F (SWT). Skandic 600.
-
37M20009 Washer. Skandic 500F (SWT). Skandic 600.Washer. Skandic 500F (SWT). Skandic 600.
-
38M36070 Rivet. Skandic 500F (SWT). Skandic 600.Rivet. Skandic 500F (SWT). Skandic 600.
