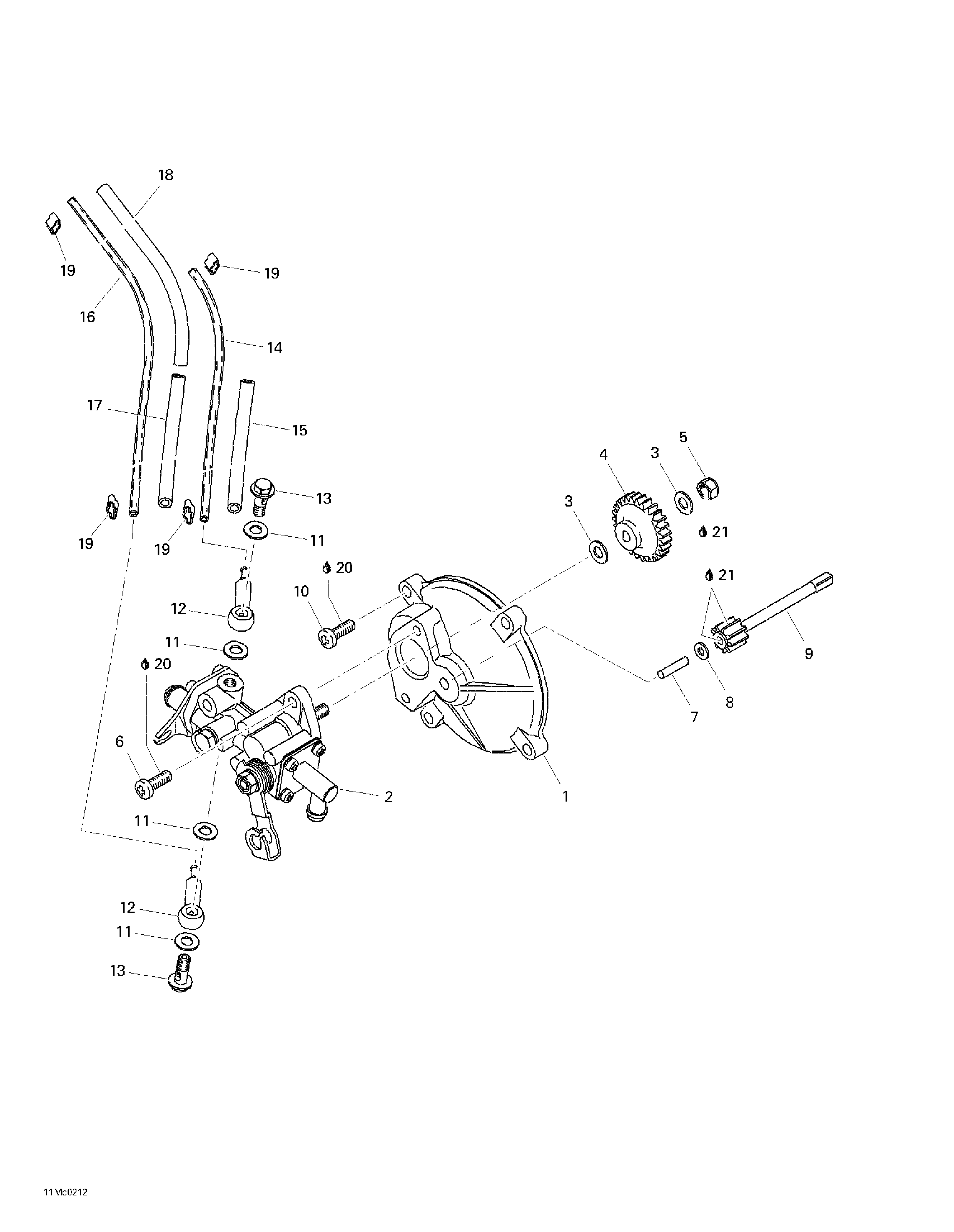

02- Oil Injection System для BRP Ski-Doo Skandic 440 - 2002
-
№АртикулНазвание
-
1420910160 Pump Mounting FlangePump Mounting Flange
-
2420887996 Oil Pump Ass'yOil Pump Ass'y
-
3420927945 WasherWasher
-
4420935930 Oil Pump Gear (27 Teeth)Oil Pump Gear (27 Teeth)
-
5232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
6420841970 Plastite Screw M5.5 x 16Plastite Screw M5.5 x 16
-
7420832260 Needle PinNeedle Pin
-
8420244073 Washer 4.3Washer 4.3
-
9420935970 Gear (9 Teeth)Gear (9 Teeth)
-
10420841970 Taptite Screw M5.5 x 16Taptite Screw M5.5 x 16
-
11404146600 Gasket RingGasket Ring
-
12420956010 Check Valve Ass'yCheck Valve Ass'y
-
13404146800 Banjo Bolt M6 x 16Banjo Bolt M6 x 16
-
14414413800 Oil LineOil Line
-
15420960750 Isolating Hose 90 mmIsolating Hose 90 mm
-
16414413800 Oil LineOil Line
-
17420960728 Isolating Hose 120 mmIsolating Hose 120 mm
-
18420960729 Isolating Hose 150 mmIsolating Hose 150 mm
-
19420853840 ClampClamp
-
20293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
21413707000 Molykote 111Molykote 111
