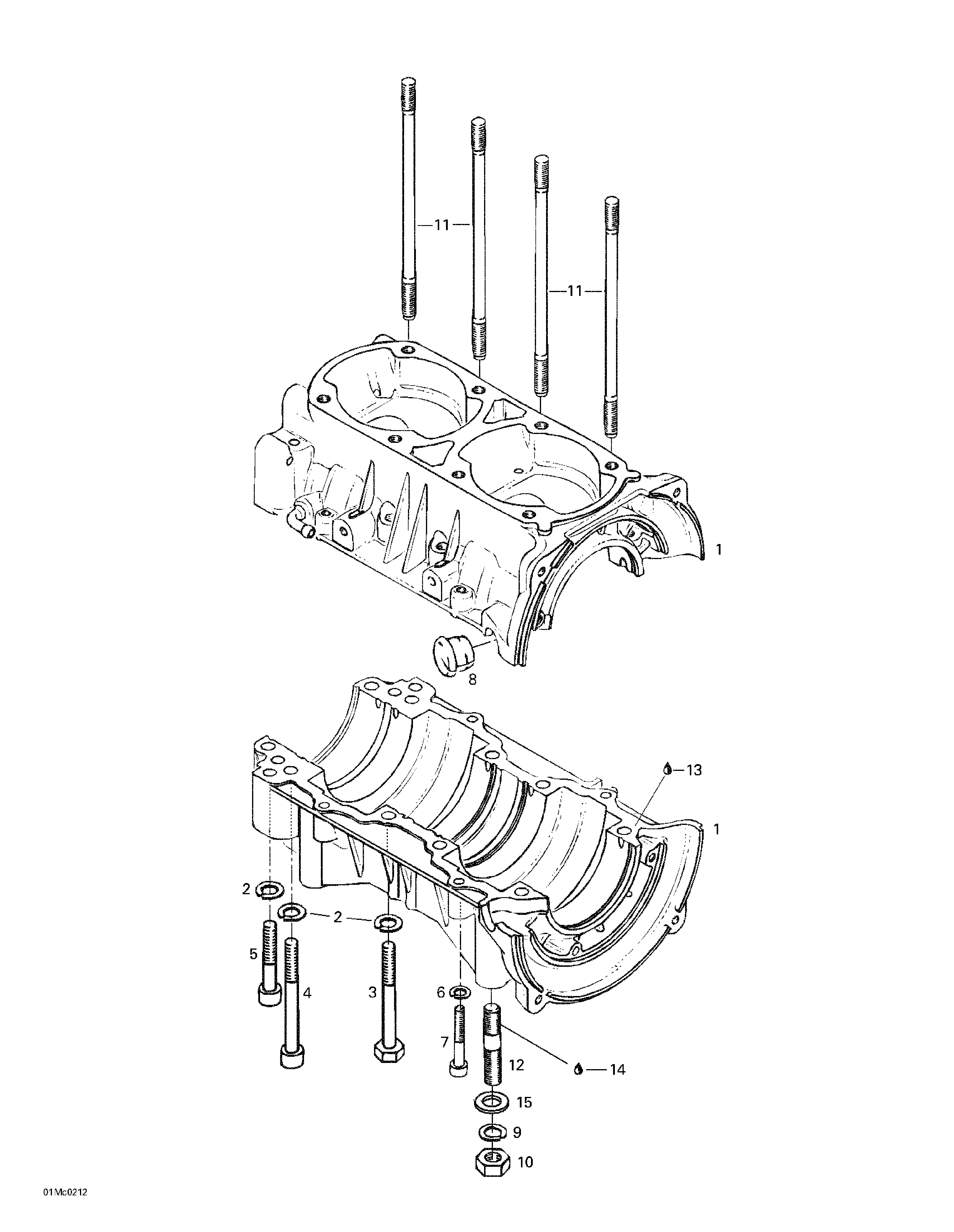

01- Crankcase для BRP Ski-Doo Skandic 440 - 2002

  • №
    Артикул
    Название
  • 1
    420888481 Crankcase Ass'y. Includes 1 - 8.
    Crankcase Ass'y. Includes 1 - 8.
  • 2
    420945752 Lock Washer 8 mm
    Lock Washer 8 mm
  • 3
    420841201 Hex. Screw M8 x 70
    Hex. Screw M8 x 70
  • 4
    420841831 Allen Screw M8 x 75
    Allen Screw M8 x 75
  • 5
    420841566 Allen Screw M8 x 50
    Allen Screw M8 x 50
  • 6
    420945751 Lock Washer 6 mm
    Lock Washer 6 mm
  • 7
    420241816 Allen Screw M6 x 40
    Allen Screw M6 x 40
  • 8
    420860962 Cable Grommet
    Cable Grommet
  • 9
    M20047 Lock Washer 10 mm
    Lock Washer 10 mm
  • 10
    232006414 Hex. Nut M10
    Hex. Nut M10
  • 11
    420841149 Stud M8 x 167
    Stud M8 x 167
  • 12
    420940190 Stud M10
    Stud M10
  • 13
    413702700 Loctite 515, 50 ml
    Loctite 515, 50 ml
  • 14
    293800060 Loctite 243, 10 ml
    Loctite 243, 10 ml
  • 15
    M20105 Washer 10 mm
    Washer 10 mm
