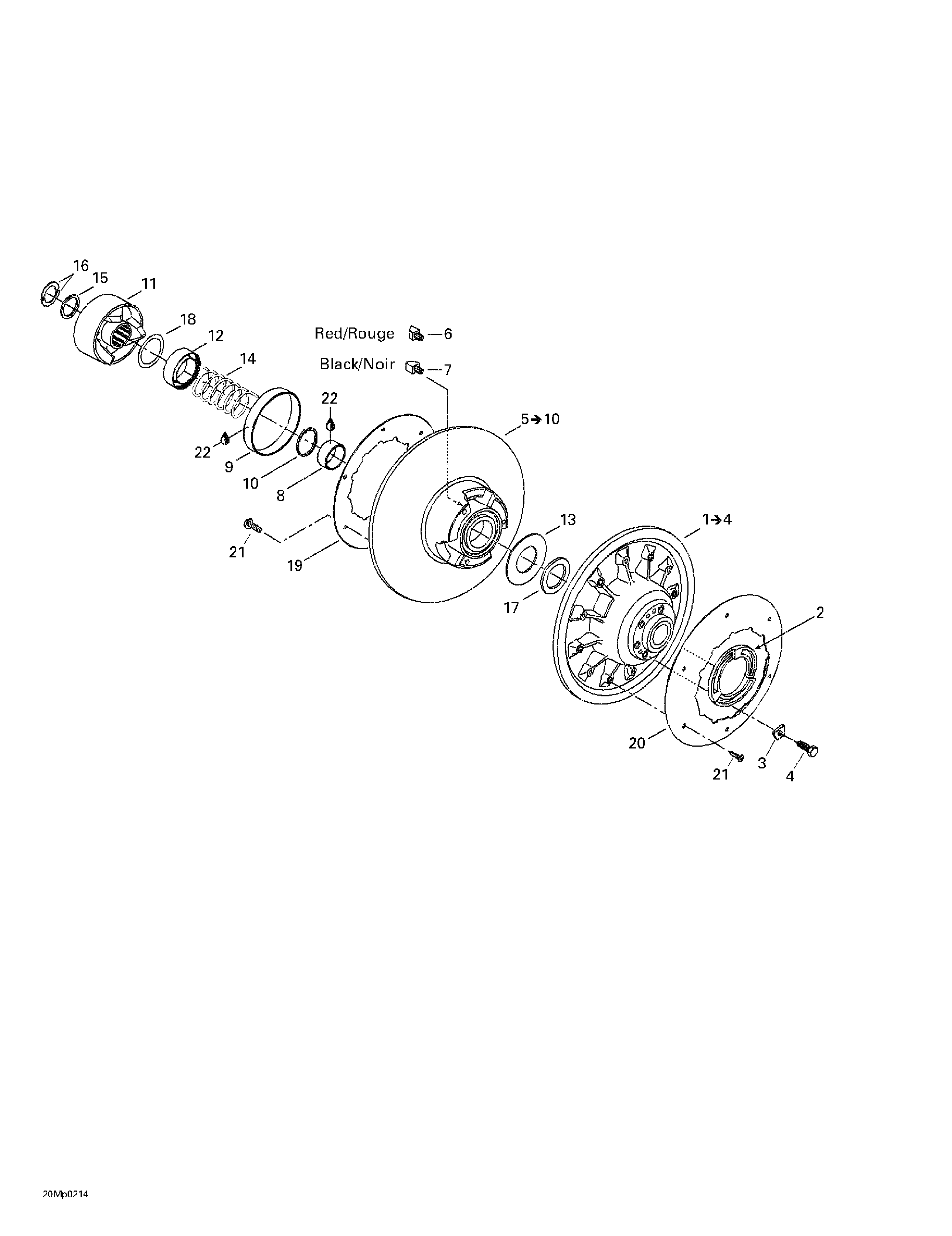

05- Driven Pulley для BRP Ski-Doo MX Z 800 Rev - 2002
-
№АртикулНазвание
-
1417126527 Fixed Flange Ass'y. Includes 1 - 4.Fixed Flange Ass'y. Includes 1 - 4.
-
2415005800 Adjustment RingAdjustment Ring
-
3415005900 Adjustment ShimAdjustment Shim
-
4207162544 Screw Hex. M6 x 25 (3)Screw Hex. M6 x 25 (3)
-
207162244 Screw Hex. M6 x 22 (3)Screw Hex. M6 x 22 (3)
-
5417126318 Sliding Flange Ass'y. Includes 5 - 10.Sliding Flange Ass'y. Includes 5 - 10.
-
6417126373 Rear Cam Shoe Slider (Red)Rear Cam Shoe Slider (Red)
-
7417126374 Front Cam Shoe Slider (Black)Front Cam Shoe Slider (Black)
-
9414978100 BushingBushing
-
10371911200 CirclipCirclip
-
11417126385 Cam Ass'yCam Ass'y
-
12417126381 GuardGuard
-
13504099600 Stopper WasherStopper Washer
-
14414978300 Release SpringRelease Spring
-
15417126368 SpacerSpacer
-
16371911000 Half KeyHalf Key
-
17504112300 ShimShim
-
18417126322 Swivel AbutmentSwivel Abutment
-
19504149700 CoverCover
-
20504151831 CoverCover
-
21210251180 Hex. Forming Screw M5 x 11Hex. Forming Screw M5 x 11
-
22413703100 Loctite 609, 10ccLoctite 609, 10cc
