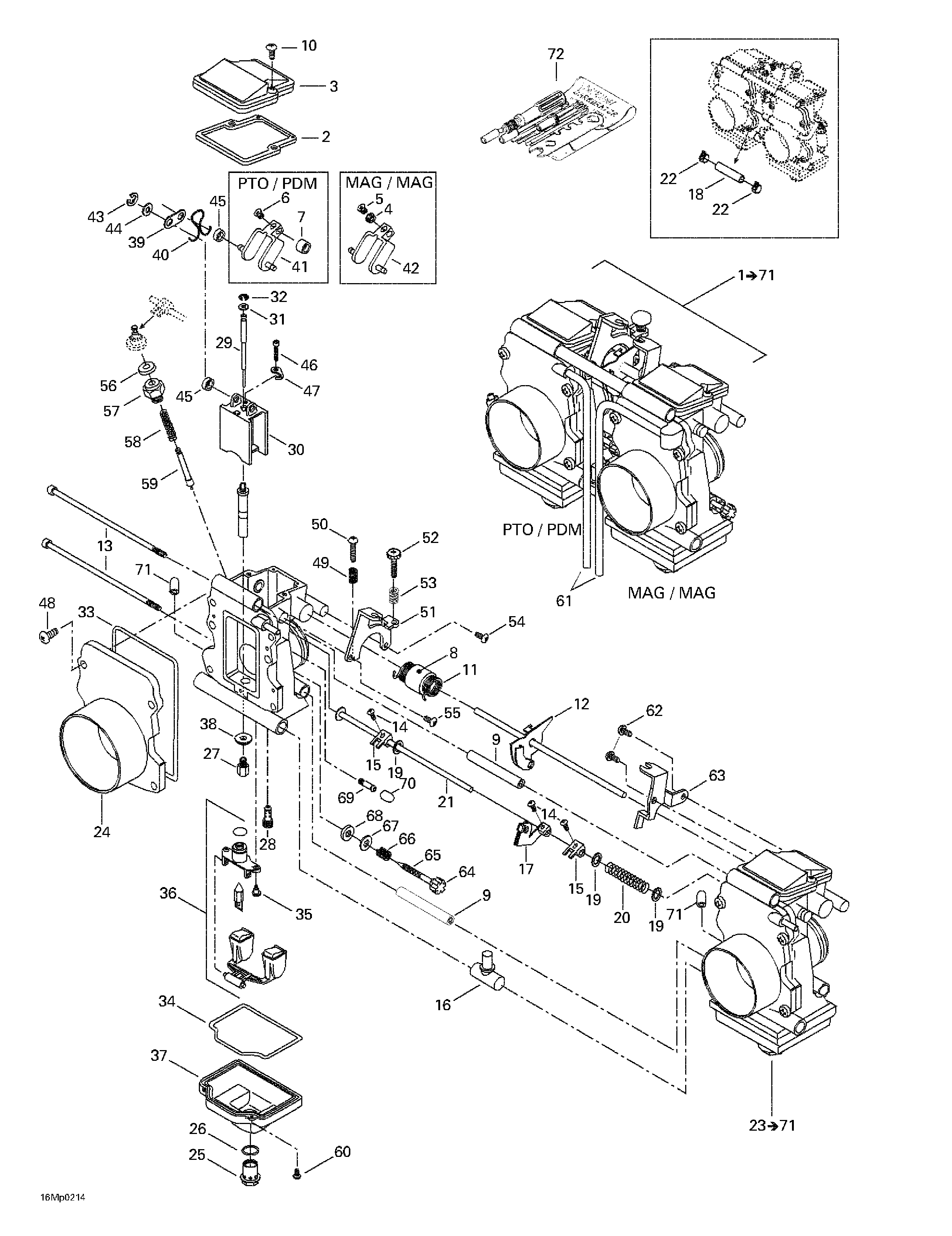

02- Carburetors для BRP Ski-Doo MX Z 800 Rev - 2002
-
№АртикулНазвание
-
1403138667 Carburetor Kit TM-40-B184. Includes 1 - 71.Carburetor Kit TM-40-B184. Includes 1 - 71.
-
2404161940 GasketGasket
-
3404161939 CoverCover
-
4404161937 RingRing
-
5404161936 ScrewScrew
-
6404161928 ScrewScrew
-
7404161926 RingRing
-
8404161925 RingRing
-
9404161924 RingRing
-
10404161923 ScrewScrew
-
11404161915 SpringSpring
-
12404161914 Throttle ShaftThrottle Shaft
-
13404161911 ScrewScrew
-
14404161910 ScrewScrew
-
15404161909 LeverLever
-
16404161905 NippleNipple
-
17404161901 Starter LeverStarter Lever
-
18404161956 HoseHose
-
19404161894 PackingPacking
-
20404103500 SpringSpring
-
21404161981 ShaftShaft
-
22404161957 ClipClip
-
25404161955 Drain ScrewDrain Screw
-
26404161945 O-RingO-Ring
-
27404106600 Main Jet 460Main Jet 460
-
28404161944 Pilot Jet 17.5Pilot Jet 17.5
-
29404161962 Needle J8-9zly02-58Needle J8-9zly02-58
-
30404161950 Piston Valve 2.0Piston Valve 2.0
-
31404137600 PackingPacking
-
32404152200 E RingE Ring
-
33404161935 O-RingO-Ring
-
34404161961 O-RingO-Ring
-
35404161933 ScrewScrew
-
36404161932 FloatFloat
-
37404161960 Body Float Ass'yBody Float Ass'y
-
39404161930 PlatePlate
-
40404161929 ClipClip
-
41404161927 Lever (PTO)Lever (PTO)
-
42404161938 Lever (MAG)Lever (MAG)
-
43404138300 E RingE Ring
-
44404161922 WasherWasher
-
45404161921 RingRing
-
46404161920 ScrewScrew
-
47404161919 PlatePlate
-
48404138800 ScrewScrew
-
49404161918 Spring (PTO)Spring (PTO)
-
50404161917 Screw (PTO)Screw (PTO)
-
51404162002 Bracket (PTO)Bracket (PTO)
-
52404137500 Adjustment Screw (PTO)Adjustment Screw (PTO)
-
53404161913 Spring (PTO)Spring (PTO)
-
54404161912 Screw (PTO)Screw (PTO)
-
55404136100 Screw (PTO)Screw (PTO)
-
56404140000 CapCap
-
57404136900 Guide HolderGuide Holder
-
58404161908 SpringSpring
-
59404161907 Plunger Ass'yPlunger Ass'y
-
60404161906 ScrewScrew
-
61404162001 HoseHose
-
62404161903 Screw (MAG)Screw (MAG)
-
63404162000 Bracket (MAG)Bracket (MAG)
-
64404161899 CapCap
-
65404161898 AdjusterAdjuster
-
66404161897 SpringSpring
-
67404161896 WasherWasher
-
68404161895 PackingPacking
-
69404153400 NippleNipple
-
70404154900 CapCap
-
71270500095 CapCap
-
72404112000 Tool KitTool Kit
