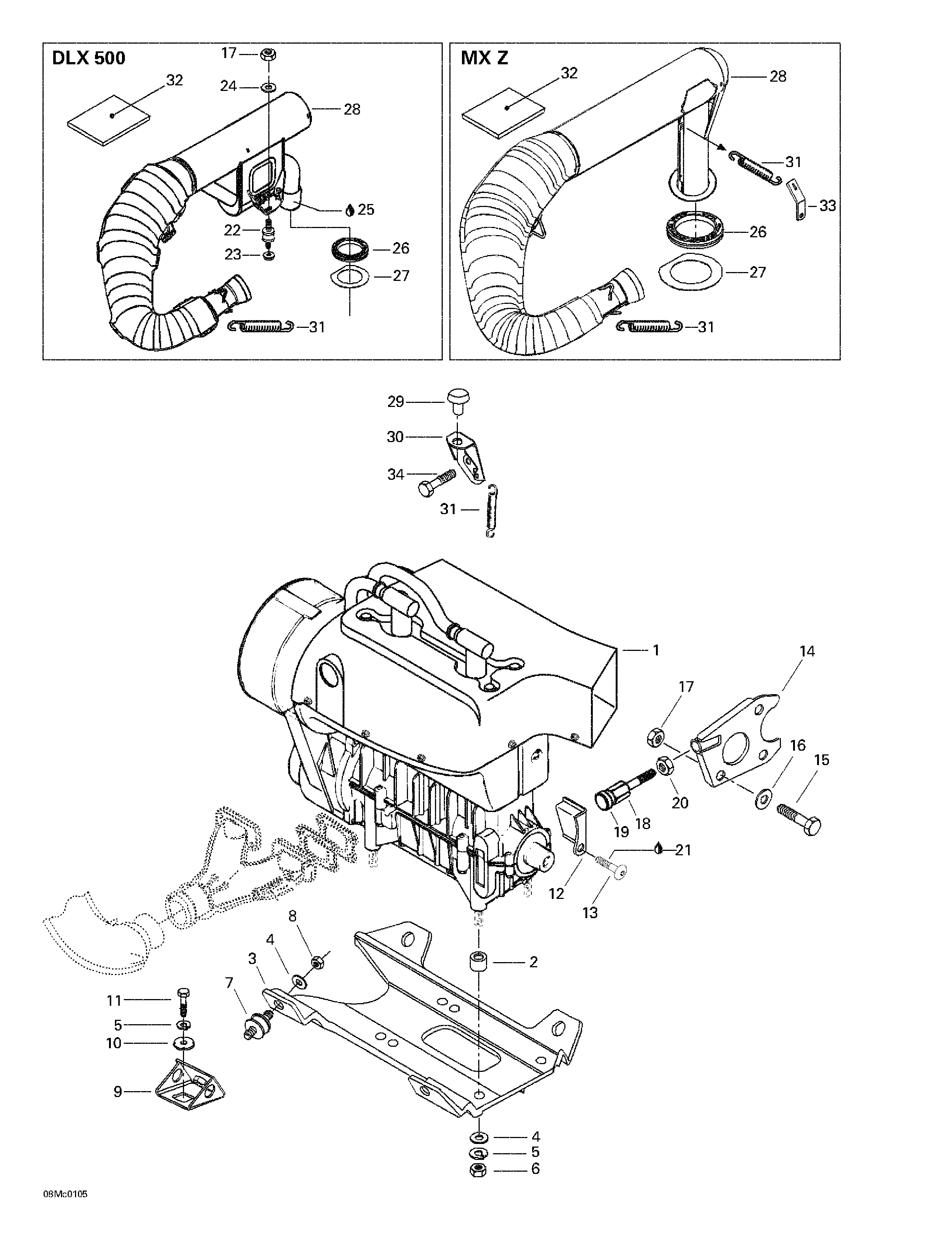

01- Engine Support And Muffler для BRP Ski-Doo MX Z 440 F/500 F - 2001

  • №
    Артикул
    Название
  • 1
    400409410 > Engine. MX Z 440 F.
    > Engine. MX Z 440 F.
  • 400509721 > Engine. MX Z 500 F. Formula DLX 500 F.
    > Engine. MX Z 500 F. Formula DLX 500 F.
  • 2
    512057700 Spacer. MX Z 440 F.
    Spacer. MX Z 440 F.
  • 512051800 Spacer. MX Z 500 F. Formula DLX 500 F.
    Spacer. MX Z 500 F. Formula DLX 500 F.
  • 3
    512059134 Engine Support
    Engine Support
  • 4
    234001410 Washer 10 mm
    Washer 10 mm
  • 5
    234100602 Lock Washer 10 mm
    Lock Washer 10 mm
  • 6
    232006414 Nut M10
    Nut M10
  • 7
    570127700 Rubber Mount
    Rubber Mount
  • 8
    233601416 Elastic Stop Nut M10
    Elastic Stop Nut M10
  • 9
    512050900 Support
    Support
  • 10
    512056700 Lock Washer
    Lock Washer
  • 11
    207102544 Hex. Screw M10 x 25
    Hex. Screw M10 x 25
  • 12
    512059198 Stopper Plate
    Stopper Plate
  • 13
    236282084 Screw M8 x 20
    Screw M8 x 20
  • 14
    517271800 Support Plate
    Support Plate
  • 15
    207182544 Hex. Screw M8 x 25
    Hex. Screw M8 x 25
  • 16
    234081410 Flat Washer 8 mm
    Flat Washer 8 mm
  • 17
    232581414 Elastic Stop Nut M8
    Elastic Stop Nut M8
  • 18
    517244200 Screw
    Screw
  • 19
    570025100 Rod Retainer
    Rod Retainer
  • 20
    232120414 Nut M12
    Nut M12
  • 21
    293800005 Loctite 271, 10ml
    Loctite 271, 10ml
  • 22
    514052838 Rubber Mount. Formula DLX 500 F.
    Rubber Mount. Formula DLX 500 F.
  • 23
    233281414 Elastic Flanged Stop Nut M8. Formula DLX 500 F.
    Elastic Flanged Stop Nut M8. Formula DLX 500 F.
  • 24
    234082410 Flat Washer 8 mm. Formula DLX 500 F.
    Flat Washer 8 mm. Formula DLX 500 F.
  • 25
    293550014 Grease, Super Lube #823-28. Formula DLX 500 F.
    Grease, Super Lube #823-28. Formula DLX 500 F.
  • 26
    570039000 Exhaust Washer
    Exhaust Washer
  • 27
    514049300 Aluminum Washer
    Aluminum Washer
  • 28
    514046400 Muffler-Pipe. MX Z 440 F.
    Muffler-Pipe. MX Z 440 F.
  • 514046700 Muffler-Pipe. MX Z 500 F.
    Muffler-Pipe. MX Z 500 F.
  • 514097600 Tuned-Pipe. Formula DLX 500 F.
    Tuned-Pipe. Formula DLX 500 F.
  • 29
    570048700 Rubber Bumber
    Rubber Bumber
  • 30
    514044100 Muffler Support
    Muffler Support
  • 31
    415107100 Spring
    Spring
  • 32
    414746400 Reflection Sheet. MX Z 440 F. MX Z 500 F.
    Reflection Sheet. MX Z 440 F. MX Z 500 F.
  • 415064900 Reflection Sheet. Formula DLX 500 F.
    Reflection Sheet. Formula DLX 500 F.
  • 33
    514034000 Spring Bracket. MX Z 440 F. MX Z 500 F.
    Spring Bracket. MX Z 440 F. MX Z 500 F.
  • 34
    207006044 Hex. Screw M10 x 60
    Hex. Screw M10 x 60
