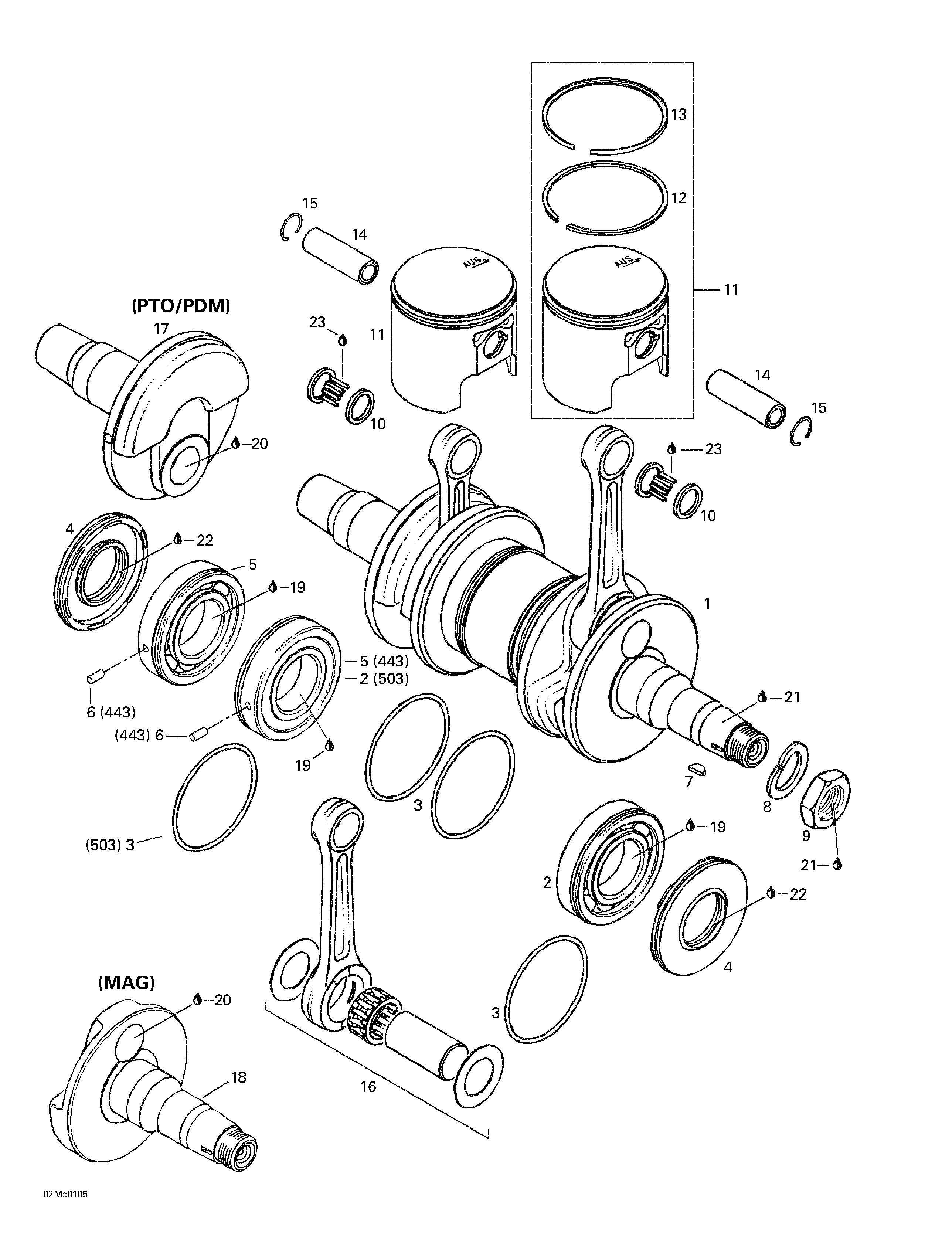

01- Crankshaft And Pistons для BRP Ski-Doo MX Z 440 F/500 F - 2001

№

Артикул

Название
1

420888249 Crankshaft Ass'y. Includes 1 - 7. MX Z 440 F.

Crankshaft Ass'y. Includes 1 - 7. MX Z 440 F.
420888390 Crankshaft Ass'y. MX Z 500 F. Formula DLX 500 F.

Crankshaft Ass'y. MX Z 500 F. Formula DLX 500 F.
2

420832570 Ball Bearing 6207

Ball Bearing 6207
4

290831952 Oil Seal

Oil Seal
5

420832574 Ball Bearing 6207 Ass'y. Includes 5 - 6.

Ball Bearing 6207 Ass'y. Includes 5 - 6.
6

420929972 Dowel Pin

Dowel Pin
7

420246055 Woodruff Key

Woodruff Key
8

420945759 Lock Washer 22 mm

Lock Washer 22 mm
9

420842230 Nut M22

Nut M22
10

420832325 Needle Bearing. MX Z 440 F.

Needle Bearing. MX Z 440 F.
420832320 Needle Bearing. MX Z 500 F. Formula DLX 500 F.

Needle Bearing. MX Z 500 F. Formula DLX 500 F.
11

420887485 Piston Ass'y 67.43 mm. Includes 11 - 13. MX Z 440 F.

Piston Ass'y 67.43 mm. Includes 11 - 13. MX Z 440 F.
420888175 Piston Ass'y 71.92 mm. MX Z 500 F. Formula DLX 500 F.

Piston Ass'y 71.92 mm. MX Z 500 F. Formula DLX 500 F.
420887486 Oversize Piston Ass'y. 67.68 mm. MX Z 440 F.

Oversize Piston Ass'y. 67.68 mm. MX Z 440 F.
420887487 Oversize Piston Ass'y. 67.93 mm. MX Z 440 F.

Oversize Piston Ass'y. 67.93 mm. MX Z 440 F.
420888176 Oversize Piston Ass'y. 72.17 mm. MX Z 500 F. Formula DLX 500 F.

Oversize Piston Ass'y. 72.17 mm. MX Z 500 F. Formula DLX 500 F.
420888177 Oversize Piston Ass'y. 72.42 mm. MX Z 500 F. Formula DLX 500 F.

Oversize Piston Ass'y. 72.42 mm. MX Z 500 F. Formula DLX 500 F.
12

420915960 Rectangular Ring 67.50 mm. MX Z 440 F.

Rectangular Ring 67.50 mm. MX Z 440 F.
420915961 Rectangular Ring 67.75 mm. MX Z 440 F.

Rectangular Ring 67.75 mm. MX Z 440 F.
420915962 Rectangular Ring 68.00 mm. MX Z 440 F.

Rectangular Ring 68.00 mm. MX Z 440 F.
420915850 Rectangular Ring 72.00 mm. MX Z 500 F. Formula DLX 500 F.

Rectangular Ring 72.00 mm. MX Z 500 F. Formula DLX 500 F.
420915851 Rectangular Ring 72.25 mm. MX Z 500 F. Formula DLX 500 F.

Rectangular Ring 72.25 mm. MX Z 500 F. Formula DLX 500 F.
420915852 Rectangular Ring 72.50 mm. MX Z 500 F. Formula DLX 500 F.

Rectangular Ring 72.50 mm. MX Z 500 F. Formula DLX 500 F.
13

420915845 Semi-Trapez Ring 67.50 mm. MX Z 440 F.

Semi-Trapez Ring 67.50 mm. MX Z 440 F.
420915846 Semi-Trapez Ring 67.75 mm. MX Z 440 F.

Semi-Trapez Ring 67.75 mm. MX Z 440 F.
420915847 Semi-Trapez Ring 68.00 mm. MX Z 440 F.

Semi-Trapez Ring 68.00 mm. MX Z 440 F.
420815200 Semi-Trapez Ring 72.00 mm. MX Z 500 F. Formula DLX 500 F.

Semi-Trapez Ring 72.00 mm. MX Z 500 F. Formula DLX 500 F.
420815201 Semi-Trapez Ring 72.25 mm. MX Z 500 F. Formula DLX 500 F.

Semi-Trapez Ring 72.25 mm. MX Z 500 F. Formula DLX 500 F.
420815202 Semi-Trapez Ring 72.50 mm. MX Z 500 F. Formula DLX 500 F.

Semi-Trapez Ring 72.50 mm. MX Z 500 F. Formula DLX 500 F.
14

420916136 Piston Pin. MX Z 440 F.

Piston Pin. MX Z 440 F.
420916186 Piston Pin. MX Z 500 F. Formula DLX 500 F.

Piston Pin. MX Z 500 F. Formula DLX 500 F.
15

420945735 Circlip

Circlip
16

420996334 Crankshaft Repair Kit. MX Z 440 F.

Crankshaft Repair Kit. MX Z 440 F.
420994564 Crankshaft Repair Kit. MX Z 500 F. Formula DLX 500 F.

Crankshaft Repair Kit. MX Z 500 F. Formula DLX 500 F.
17

420818204 Half Crankhalf P.T.O. MX Z 440 F.

Half Crankhalf P.T.O. MX Z 440 F.
420818244 Half Crankhalf P.T.O. MX Z 500 F. Formula DLX 500 F.

Half Crankhalf P.T.O. MX Z 500 F. Formula DLX 500 F.
18

420819010 Half Crankhalf MAG. MX Z 440 F.

Half Crankhalf MAG. MX Z 440 F.
420819020 Half Crankhalf MAG. MX Z 500 F. Formula DLX 500 F.

Half Crankhalf MAG. MX Z 500 F. Formula DLX 500 F.
19

293800070 Loctite Anti-seize 15378, 50ml

Loctite Anti-seize 15378, 50ml
20

413711400 Loctite 648, 10ml

Loctite 648, 10ml
21

293800060 Loctite 243, 10ml

Loctite 243, 10ml
22

413707000 Molykote 111

Molykote 111
23

413802900 Injection Oil (12 x 1 Liter)

Injection Oil (12 x 1 Liter)
