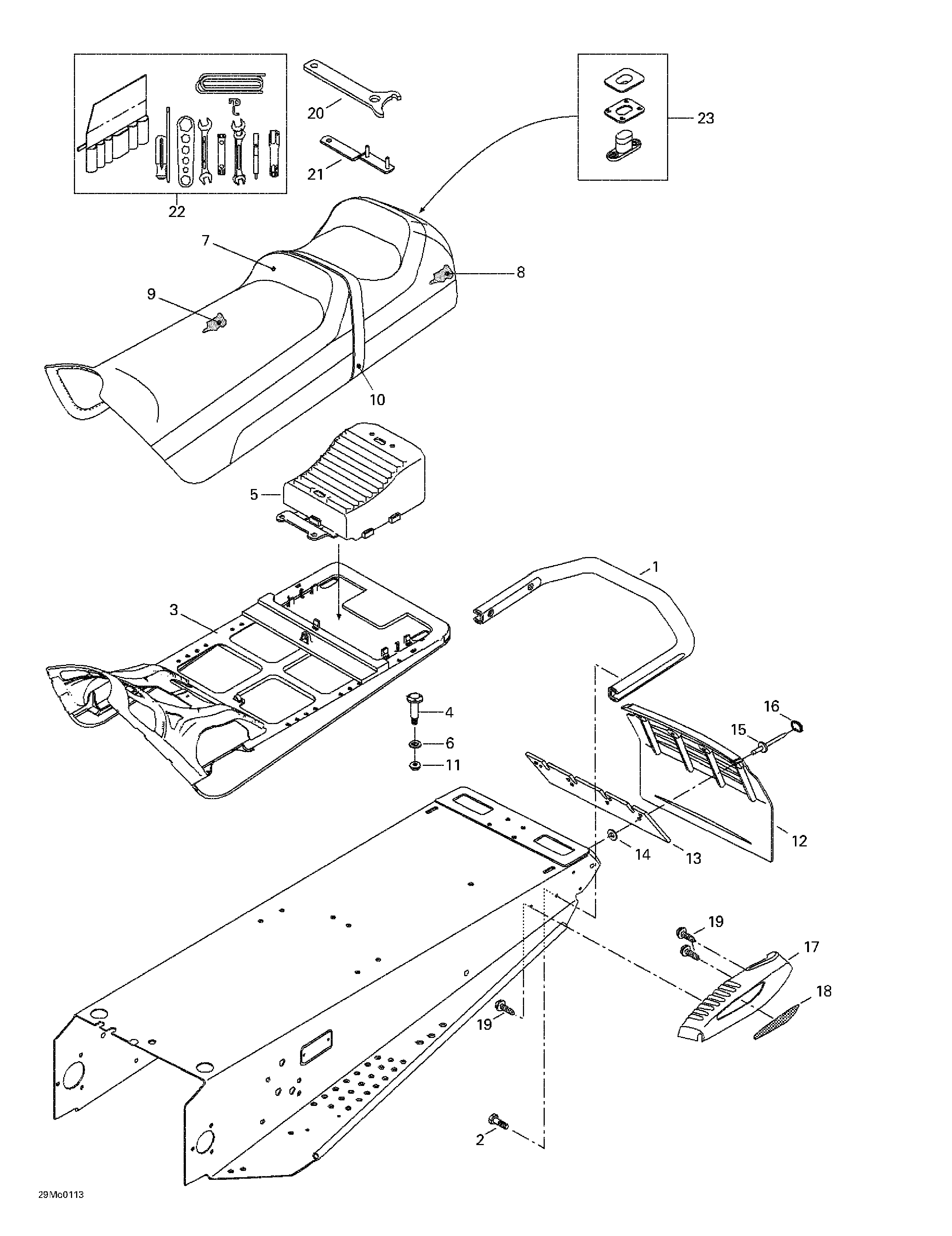

09- Seat And Accessories для BRP Ski-Doo Grand Touring 500/600/700 - 2001

-
№АртикулНазвание
-
1517272510 Rear BumperRear Bumper
-
2207682044 Hex. Flanged Screw M8 x 20Hex. Flanged Screw M8 x 20
-
3510003739 Sub-SeatSub-Seat
-
4732601221 > Bolt> Bolt
-
5510003751 Rear TrunkRear Trunk
-
6732610072 Push NutPush Nut
-
7510003835 Seat CoverSeat Cover
-
8510003741 Seat Foam (Side)Seat Foam (Side)
-
9510003752 Seat Foam (Top)Seat Foam (Top)
-
10510003753 Seat BeltSeat Belt
-
11233261414 Elastic Flanged Stop Nut M6Elastic Flanged Stop Nut M6
-
12520000229 Snow Guard (Full Moon)Snow Guard (Full Moon)
-
13572108200 ReinforcementReinforcement
-
14517225900 WasherWasher
-
15390908000 Pop Rivet (Black)Pop Rivet (Black)
-
16415073300 CapCap
-
17572103900 R.H. MouldingR.H. Moulding
-
572104000 L.H. MouldingL.H. Moulding
-
18516000237 R.H. ReflectorR.H. Reflector
-
516000241 R.H. Reflector (Europe)R.H. Reflector (Europe)
-
516000238 LH ReflectorLH Reflector
-
516000242 L.H. Reflector (Europe)L.H. Reflector (Europe)
-
19365901100 Self Tapping Screw M12 x 3/4Self Tapping Screw M12 x 3/4
-
20529032900 Wrench-AdjusterWrench-Adjuster
-
21520000126 Wrench-AdjusterWrench-Adjuster
-
22529035596 Tool KitTool Kit
-
23414728000 Buckle-SeatBuckle-Seat
