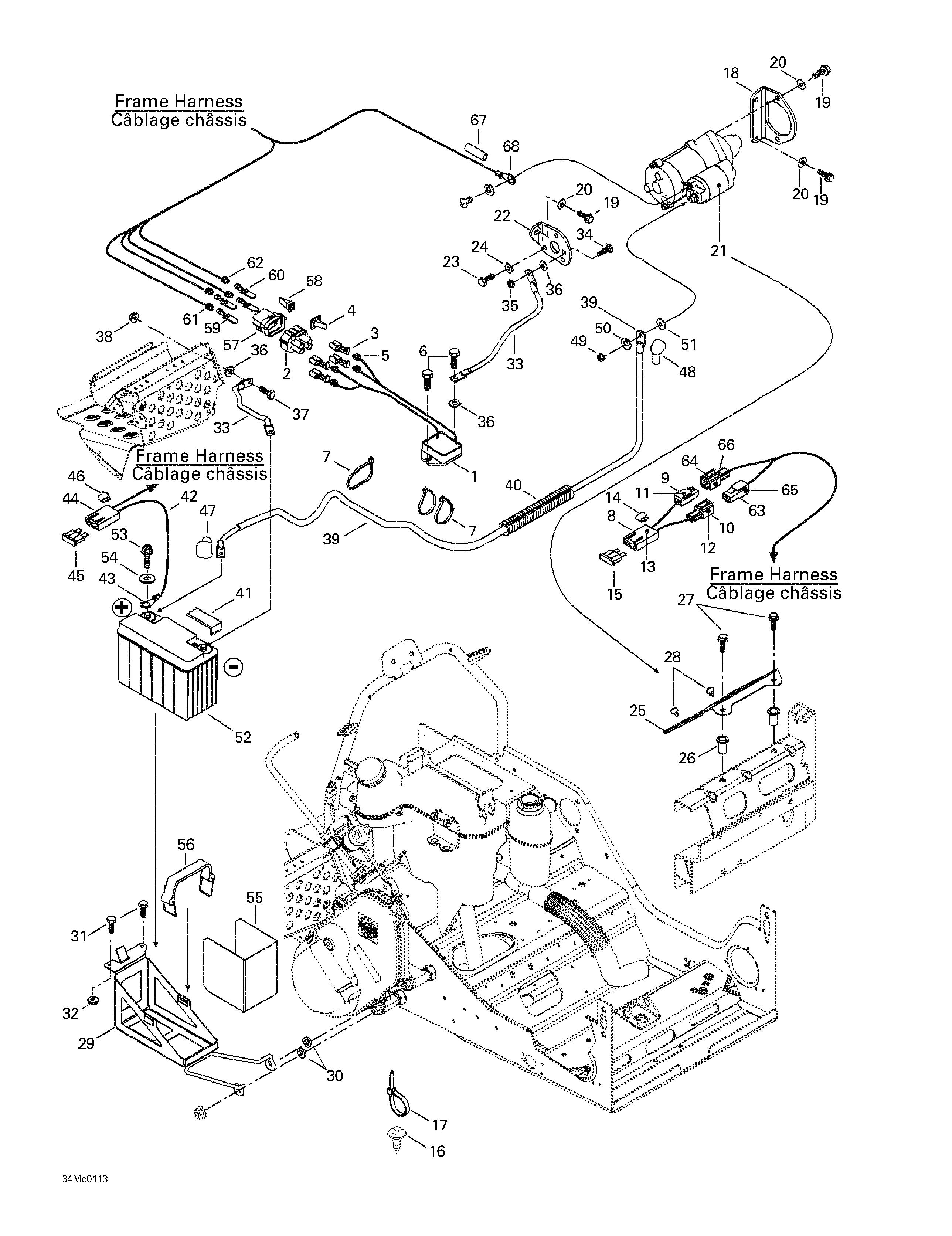

10- Battery And Starter для BRP Ski-Doo Grand Touring 500/600/700 - 2001
-
№АртикулНазвание
-
1515175217 Voltage Regulator. Includes 1 - 5.Voltage Regulator. Includes 1 - 5.
-
2409208000 Female Terminal Housing (4 Circuits)Female Terminal Housing (4 Circuits)
-
3278000994 Female TerminalFemale Terminal
-
4409013400 Female Lock (4 Circuits)Female Lock (4 Circuits)
-
5278000996 Wire Seal (Orange)Wire Seal (Orange)
-
6210261680 Hex. Screw M6 x 16Hex. Screw M6 x 16
-
7293750008 Tie Rap 350 mmTie Rap 350 mm
-
8409004000 Fuse HolderFuse Holder
-
9515175509 Male Terminal Housing (1 Circuit)Male Terminal Housing (1 Circuit)
-
10515175510 Female Terminal Housing (1 Circuit)Female Terminal Housing (1 Circuit)
-
11515175273 Male TerminalMale Terminal
-
12515175282 Female TerminalFemale Terminal
-
13409011600 Female TerminalFemale Terminal
-
14409014200 Backward ClipBackward Clip
-
15278001143 Fuse 20 AMPFuse 20 AMP
-
16293730018 Dart MountDart Mount
-
17414115200 Tie Rap 180 mmTie Rap 180 mm
-
18515175142 Starter Bracket (PTO)Starter Bracket (PTO)
-
19207582044 Hex. Flanged Screw M8 x 20 (Scotch Grip)Hex. Flanged Screw M8 x 20 (Scotch Grip)
-
20250200008 Flat Washer 8 mmFlat Washer 8 mm
-
21515175565 StarterStarter
-
22515175441 Starter Bracket (MAG)Starter Bracket (MAG)
-
23207361644 Hex. Screw M6 x 16 (Scotch Grip)Hex. Screw M6 x 16 (Scotch Grip)
-
24234061410 Flat Washer 6 mmFlat Washer 6 mm
-
25515175536 ProtectorProtector
-
26415107300 Insert M6Insert M6
-
27207661644 Hex. Flanged Screw M6 x 16Hex. Flanged Screw M6 x 16
-
28293830005 Rubber PlugRubber Plug
-
29515175472 Battery Support. Grand Touring 500. Grand Touring 600.Battery Support. Grand Touring 500. Grand Touring 600.
-
515175556 Battery Support. Grand Touring 700.Battery Support. Grand Touring 700.
-
30503175800 Flat WasherFlat Washer
-
31207151244 Hex. Screw M5 x 12Hex. Screw M5 x 12
-
32233251414 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
33515175483 Ground WireGround Wire
-
34207762044 Carriage Bolt M6 x 20Carriage Bolt M6 x 20
-
35233261414 Elastic Flanged Stop Nut M6Elastic Flanged Stop Nut M6
-
36250200000 Lock Washer SerratedLock Washer Serrated
-
37207161644 Hex. Screw M6 x 16Hex. Screw M6 x 16
-
38233261414 Elastic Flanged Stop Nut M6Elastic Flanged Stop Nut M6
-
39515175482 Battery WireBattery Wire
-
40409901700 TubingTubing
-
41293740005 Vinyl Tape 3/4''Vinyl Tape 3/4''
-
42515175489 Battery Fuse Wire. Includes 42 - 46.Battery Fuse Wire. Includes 42 - 46.
-
43278000992 Ring TerminalRing Terminal
-
44409004000 Fuse HolderFuse Holder
-
45410917200 Fuse 30 AMPFuse 30 AMP
-
46409014200 Backward ClipBackward Clip
-
47570151000 Protection CapProtection Cap
-
48278000020 Protector CapProtector Cap
-
49232081414 Nut M8Nut M8
-
50234181401 Lock Washer 8 mmLock Washer 8 mm
-
51234081410 Flat Washer 8 mmFlat Washer 8 mm
-
52515175481 Battery (13 Amp.). Includes 52 - 54. Grand Touring 500. Grand Touring 600.Battery (13 Amp.). Includes 52 - 54. Grand Touring 500. Grand Touring 600.
-
515175560 Battery (16 Amp.). Grand Touring 700.Battery (16 Amp.). Grand Touring 700.
-
55515175363 Deflector. Grand Touring 500. Grand Touring 600.Deflector. Grand Touring 500. Grand Touring 600.
-
515175561 Deflector. Grand Touring 700.Deflector. Grand Touring 700.
-
56515175475 Battery StrapBattery Strap
-
57409207700 Male Terminal Housing (4 Circuits)Male Terminal Housing (4 Circuits)
-
58409013100 Male Lock (4 Circuits)Male Lock (4 Circuits)
-
59409013000 Male TerminalMale Terminal
-
60409010900 Male TerminalMale Terminal
-
61278000996 Wire Seal (Orange)Wire Seal (Orange)
-
62278001223 Wire Seal (Black)Wire Seal (Black)
-
63515175509 Male Terminal Housing (1 Circuit)Male Terminal Housing (1 Circuit)
-
64515175510 Female Terminal Housing (1 Circuit)Female Terminal Housing (1 Circuit)
-
65515175273 Male TerminalMale Terminal
-
66515175282 Female TerminalFemale Terminal
-
67415079200 HoseHose
-
68515175504 Ring TerminalRing Terminal
