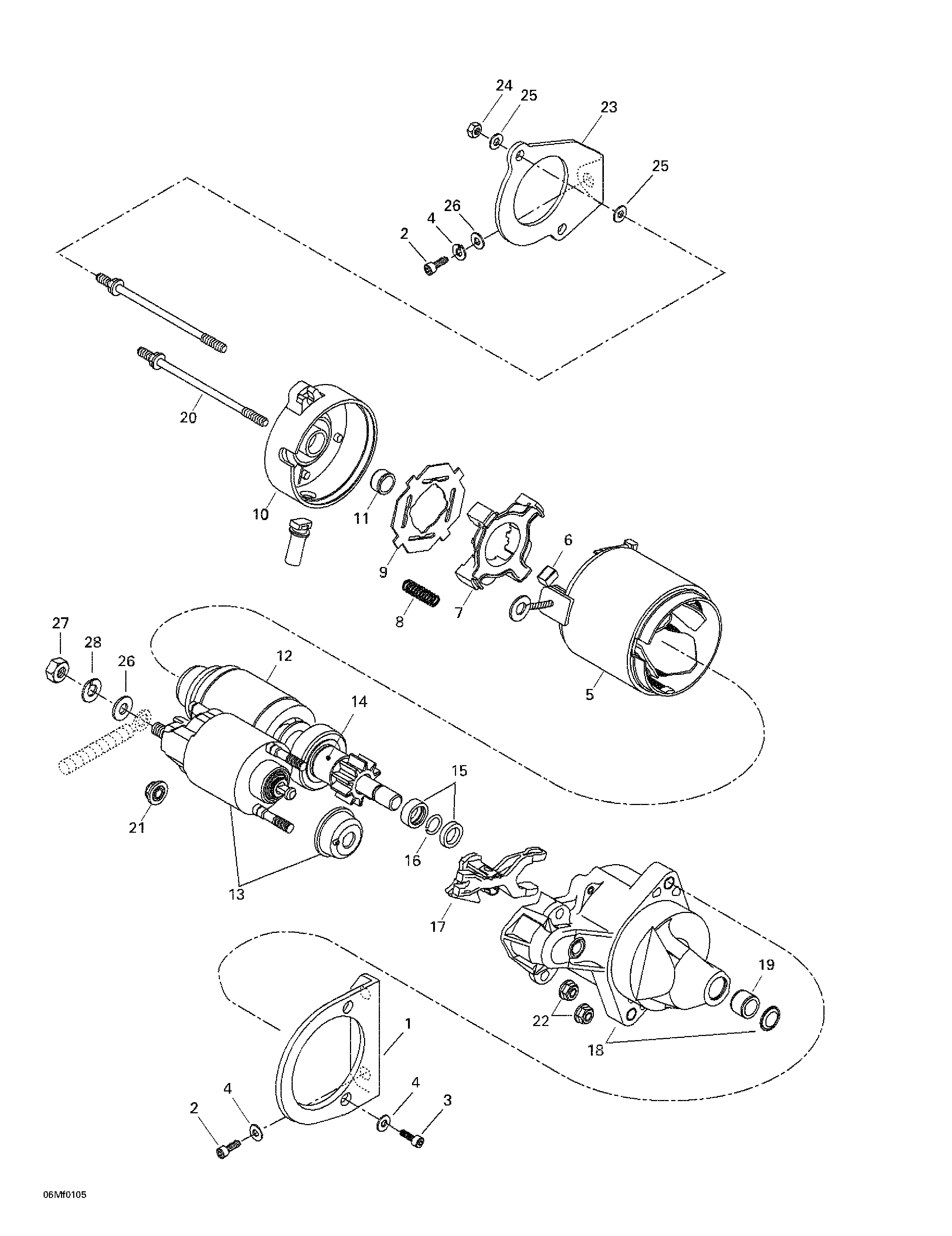

04- Electric Starter для BRP Ski-Doo Formula Deluxe 500 F - 2001
-
№АртикулНазвание
-
1420951413 Starter Bracket (PTO). Formula DLX 500 F.Starter Bracket (PTO). Formula DLX 500 F.
-
2205082044 Socket Head Screw M8 x 20. Formula DLX 500 F.Socket Head Screw M8 x 20. Formula DLX 500 F.
-
3205082544 Socket Head Screw M8 x 25. Formula DLX 500 F.Socket Head Screw M8 x 25. Formula DLX 500 F.
-
4234181401 Lock Washer 8 mm. Formula DLX 500 F.Lock Washer 8 mm. Formula DLX 500 F.
-
5410212400 Starter. Includes 5 - 22. Formula DLX 500 F.Starter. Includes 5 - 22. Formula DLX 500 F.
-
5410209500 Starter Housing. Formula DLX 500 F.Starter Housing. Formula DLX 500 F.
-
6410209600 Brush Kit. Formula DLX 500 F.Brush Kit. Formula DLX 500 F.
-
7410209700 Brush Holder. Formula DLX 500 F.Brush Holder. Formula DLX 500 F.
-
8410209800 Brush Spring. Formula DLX 500 F.Brush Spring. Formula DLX 500 F.
-
9410209900 Insulator. Formula DLX 500 F.Insulator. Formula DLX 500 F.
-
11410210100 Bushing Brass. Formula DLX 500 F.Bushing Brass. Formula DLX 500 F.
-
12410210200 Armature Ass'y. Formula DLX 500 F.Armature Ass'y. Formula DLX 500 F.
-
13410210300 Switch Ass'y. Formula DLX 500 F.Switch Ass'y. Formula DLX 500 F.
-
14410210400 Starter Clutch. Formula DLX 500 F.Starter Clutch. Formula DLX 500 F.
-
15410212500 Nut. Formula DLX 500 F.Nut. Formula DLX 500 F.
-
16410212600 Circlip. Formula DLX 500 F.Circlip. Formula DLX 500 F.
-
17410210700 Lever. Formula DLX 500 F.Lever. Formula DLX 500 F.
-
18410210800 Housing. Formula DLX 500 F.Housing. Formula DLX 500 F.
-
19410210900 Bushing Brass. Formula DLX 500 F.Bushing Brass. Formula DLX 500 F.
-
20410212000 Bolt. Formula DLX 500 F.Bolt. Formula DLX 500 F.
-
21410211100 Nut. Formula DLX 500 F.Nut. Formula DLX 500 F.
-
22410211200 Nut. Formula DLX 500 F.Nut. Formula DLX 500 F.
-
23420951427 Starter Support (MAG). Formula DLX 500 F.Starter Support (MAG). Formula DLX 500 F.
-
24232551414 Elastic Stop Nut M5. Formula DLX 500 F.Elastic Stop Nut M5. Formula DLX 500 F.
-
25391301700 Washer. Formula DLX 500 F.Washer. Formula DLX 500 F.
-
26234081410 Flat Washer. Formula DLX 500 F.Flat Washer. Formula DLX 500 F.
-
27232081414 Hex. Nut M8. Formula DLX 500 F.Hex. Nut M8. Formula DLX 500 F.
-
28420945752 Lock Washer. Formula DLX 500 F.Lock Washer. Formula DLX 500 F.
