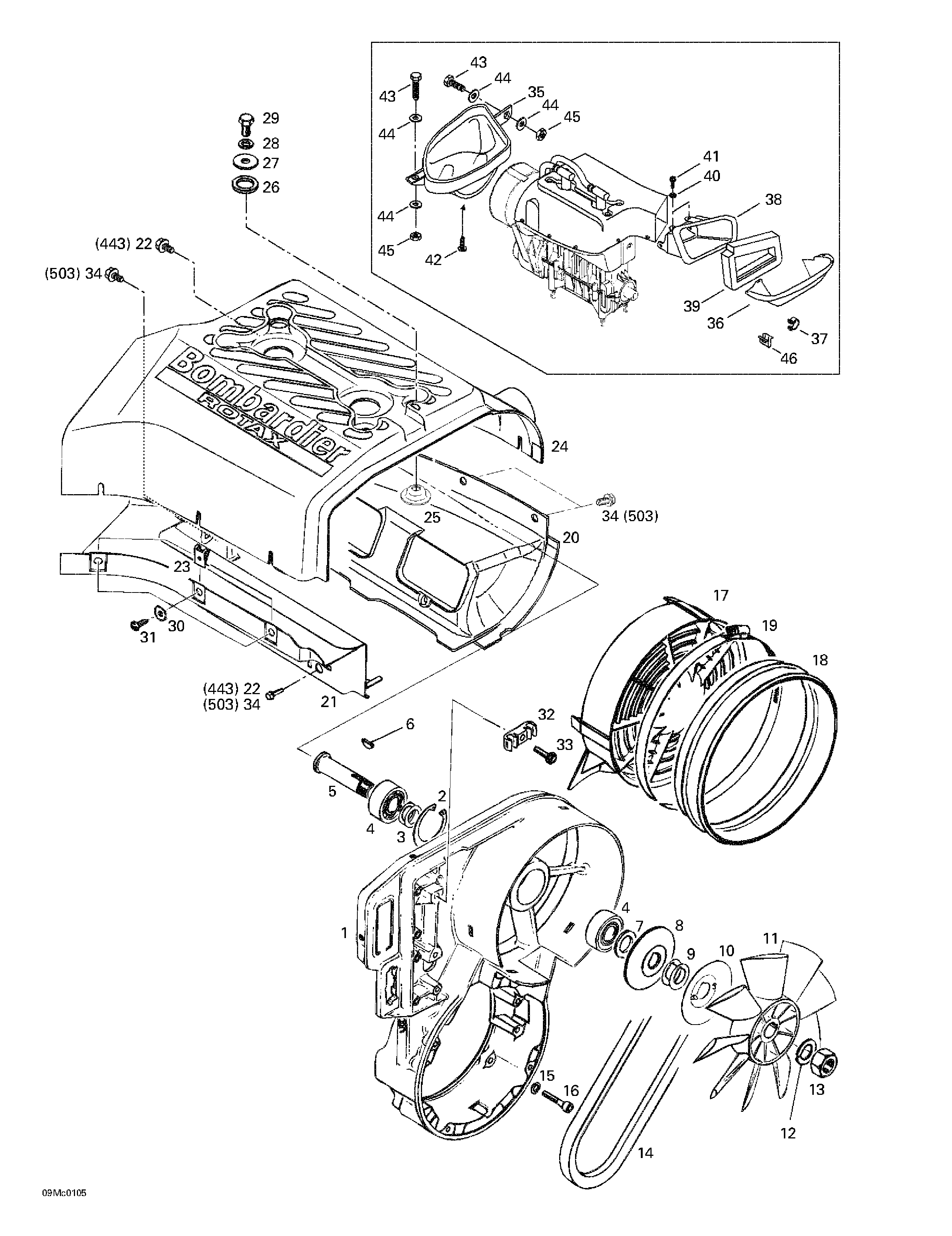

01- Cooling System And Fan для BRP Ski-Doo Formula Deluxe 500 F - 2001
-
№АртикулНазвание
-
1420912203 Fan HousingFan Housing
-
2420945880 Retaining RingRetaining Ring
-
3420244585 ShimShim
-
4405406100 Ball Bearing 6203Ball Bearing 6203
-
5420937940 Fan ShaftFan Shaft
-
6420246015 Woodruff KeyWoodruff Key
-
7420827650 Distance SleeveDistance Sleeve
-
8420980496 Pulley HalfPulley Half
-
9420827080 Shim 0.5 mmShim 0.5 mm
-
420827082 Shim 0.2 mmShim 0.2 mm
-
10420980523 Protection WasherProtection Washer
-
11420866292 FanFan
-
12420945756 Lock Washer 16 mmLock Washer 16 mm
-
13420942285 Nut M16Nut M16
-
14414630800 V-BeltV-Belt
-
15420945751 Lock Washer 6 mmLock Washer 6 mm
-
16205063044 Socket Head Screw M6 x 30Socket Head Screw M6 x 30
-
17420975695 Fan CoverFan Cover
-
18570068200 Rubber Adaptor. MX Z 440 F.Rubber Adaptor. MX Z 440 F.
-
19408803700 Tridon Gear Clamp. MX Z 440 F.Tridon Gear Clamp. MX Z 440 F.
-
20420810764 Cylinder Cowl (Exhaust Side). MX Z 440 F.Cylinder Cowl (Exhaust Side). MX Z 440 F.
-
420811390 Cylinder Cowl (Exhaust Side). MX Z 500 F. Formula DLX 500 F.Cylinder Cowl (Exhaust Side). MX Z 500 F. Formula DLX 500 F.
-
21420810792 Cylinder Cowl (Intake Side). MX Z 440 F.Cylinder Cowl (Intake Side). MX Z 440 F.
-
420811395 Cylinder Cowl (Intake Side). MX Z 500 F. Formula DLX 500 F.Cylinder Cowl (Intake Side). MX Z 500 F. Formula DLX 500 F.
-
22420240580 Taptite Screw M6 x 16. MX Z 440 F.Taptite Screw M6 x 16. MX Z 440 F.
-
23417300005 Spring NutSpring Nut
-
24420810776 Cylinder Cowl. MX Z 440 F.Cylinder Cowl. MX Z 440 F.
-
420810603 Cylinder Cowl. MX Z 500 F. Formula DLX 500 F.Cylinder Cowl. MX Z 500 F. Formula DLX 500 F.
-
25420827817 Cup WasherCup Washer
-
26420960865 Rubber WasherRubber Washer
-
27420227935 Washer 8 mmWasher 8 mm
-
28420945752 Lock Washer 8 mmLock Washer 8 mm
-
29207181644 Hex. Screw M8 x 16Hex. Screw M8 x 16
-
30420926180 WasherWasher
-
31417300006 Self Tapping ScrewSelf Tapping Screw
-
32420860940 ClampClamp
-
33420941250 Taptite Screw M6 x 20Taptite Screw M6 x 20
-
34420240385 Screw M6 x 12. MX Z 500 F. Formula DLX 500 F.Screw M6 x 12. MX Z 500 F. Formula DLX 500 F.
-
35572097800 Inlet DuctInlet Duct
-
36509000058 Air DeflectorAir Deflector
-
37414979100 ClipClip
-
38572083900 Outlet DuctOutlet Duct
-
39415036500 SealSeal
-
40732900047 Lock WasherLock Washer
-
41365901100 ScrewScrew
-
42732601292 Tapping ScrewTapping Screw
-
43207151644 Hex. Screw M5 x 16Hex. Screw M5 x 16
-
44517124300 WasherWasher
-
45232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
46517302183 ClipClip
