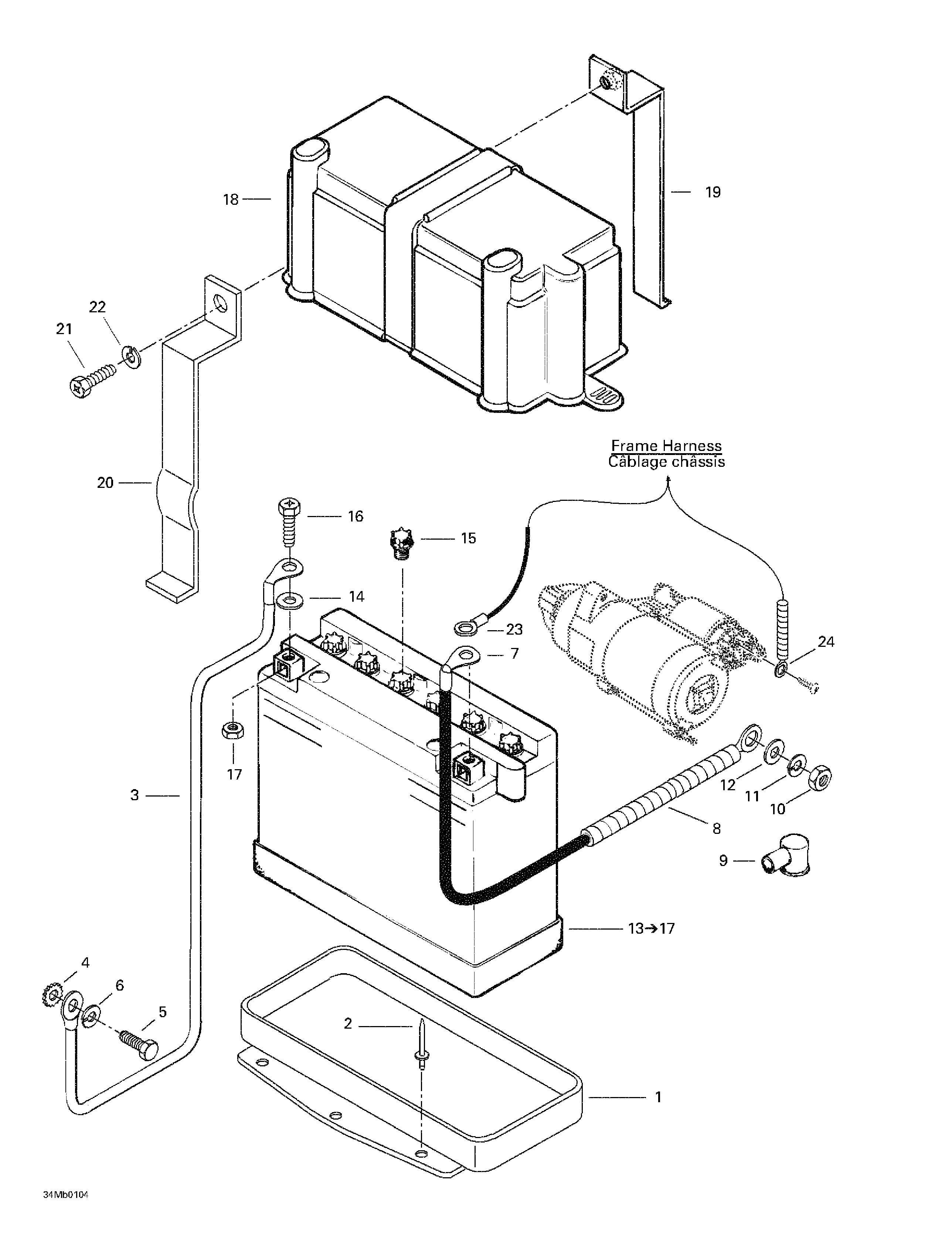

10- Battery для BRP Ski-Doo Formula Deluxe 380 F - 2001

  • №
    Артикул
    Название
  • 1
    517286200 Battery Seat. Formula Deluxe 380 F.
    Battery Seat. Formula Deluxe 380 F.
  • 2
    390402200 Pop Rivet 3/16''. Formula Deluxe 380 F.
    Pop Rivet 3/16''. Formula Deluxe 380 F.
  • 3
    515175425 Ground Wire. Formula Deluxe 380 F.
    Ground Wire. Formula Deluxe 380 F.
  • 4
    394001900 Ext. Tooth Lock Washer. Formula Deluxe 380 F.
    Ext. Tooth Lock Washer. Formula Deluxe 380 F.
  • 5
    207161444 Hex. Screw M6 x 14. Formula Deluxe 380 F.
    Hex. Screw M6 x 14. Formula Deluxe 380 F.
  • 6
    234161471 Lock Washer 6 mm. Formula Deluxe 380 F.
    Lock Washer 6 mm. Formula Deluxe 380 F.
  • 7
    515175488 Battery Wire. Formula Deluxe 380 F.
    Battery Wire. Formula Deluxe 380 F.
  • 8
    409901700 Tubing. Formula Deluxe 380 F.
    Tubing. Formula Deluxe 380 F.
  • 9
    570151000 Protector Cap. Formula Deluxe 380 F.
    Protector Cap. Formula Deluxe 380 F.
  • 10
    232081414 Nut M8. Formula Deluxe 380 F.
    Nut M8. Formula Deluxe 380 F.
  • 11
    420945752 Lock Washer 8 mm. Formula Deluxe 380 F.
    Lock Washer 8 mm. Formula Deluxe 380 F.
  • 12
    234081410 Flat Washer 8 mm. Formula Deluxe 380 F.
    Flat Washer 8 mm. Formula Deluxe 380 F.
  • 13
    410301100 Battery. Includes 13 - 17. Formula Deluxe 380 F.
    Battery. Includes 13 - 17. Formula Deluxe 380 F.
  • 14
    391302100 Washer. Formula Deluxe 380 F.
    Washer. Formula Deluxe 380 F.
  • 15
    410300800 Battery Cap. Formula Deluxe 380 F.
    Battery Cap. Formula Deluxe 380 F.
  • 16
    207161644 Hex Screw M6 x 16. Formula Deluxe 380 F.
    Hex Screw M6 x 16. Formula Deluxe 380 F.
  • 17
    232061414 Nut M6. Formula Deluxe 380 F.
    Nut M6. Formula Deluxe 380 F.
  • 18
    570022000 Battery Cover. Formula Deluxe 380 F.
    Battery Cover. Formula Deluxe 380 F.
  • 19
    517286000 Steel Strip. Formula Deluxe 380 F.
    Steel Strip. Formula Deluxe 380 F.
  • 20
    517286100 Steel Strip. Formula Deluxe 380 F.
    Steel Strip. Formula Deluxe 380 F.
  • 21
    207152044 Screw Hex. M5 x 20. Formula Deluxe 380 F.
    Screw Hex. M5 x 20. Formula Deluxe 380 F.
  • 22
    234151401 Lock Washer 5 mm (Black). Formula Deluxe 380 F.
    Lock Washer 5 mm (Black). Formula Deluxe 380 F.
  • 23
    278012600 Open Barrel. Formula Deluxe 380 F.
    Open Barrel. Formula Deluxe 380 F.
  • 24
    409012500 Open Barrel
    Open Barrel
