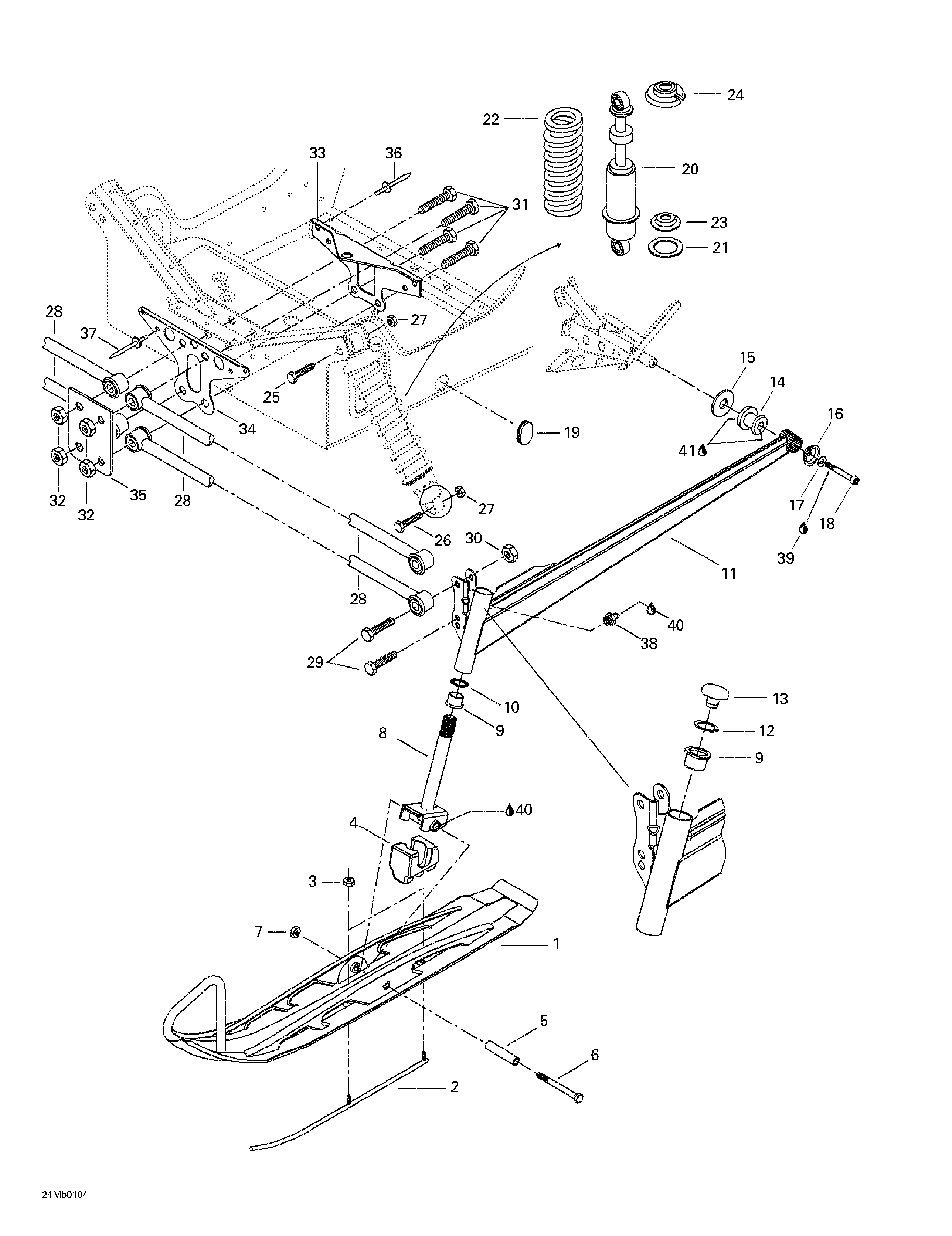

07- Front Suspension And Ski для BRP Ski-Doo Formula Deluxe 380 F - 2001
-
№АртикулНазвание
-
1505070325 SkiSki
-
2505070424 RunnerRunner
-
3232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
4505070324 Ski StopperSki Stopper
-
5505070323 SpacerSpacer
-
6250000001 Hex. Screw M10 x 110Hex. Screw M10 x 110
-
7233601416 Elastic Stop Nut M10Elastic Stop Nut M10
-
8505070321 Ski LegSki Leg
-
9505070003 CushionCushion
-
10505070004 WasherWasher
-
11505070633 R.H. Swing ArmR.H. Swing Arm
-
505070634 L.H. Swing ArmL.H. Swing Arm
-
12371910400 CirclipCirclip
-
13572091300 CapCap
-
14570062200 DamperDamper
-
15503146700 WasherWasher
-
16506115800 CupCup
-
17234181401 Lock Washer 8 mmLock Washer 8 mm
-
18205082544 Socket Head Screw M8 x 25Socket Head Screw M8 x 25
-
19414916600 Nylon PlugNylon Plug
-
20505070016 ShockShock
-
21503184400 WasherWasher
-
22505070685 Spring (Full Moon). Formula Deluxe 380 F.Spring (Full Moon). Formula Deluxe 380 F.
-
415075900 Spring (Yellow). MX Z 380 F.Spring (Yellow). MX Z 380 F.
-
23503165100 Spring GuideSpring Guide
-
24503140600 Spring StopperSpring Stopper
-
25207006044 Hex. Screw M10 x 60Hex. Screw M10 x 60
-
26207005544 Hex. Screw M10 x 55Hex. Screw M10 x 55
-
27233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
28580649700 Arm Ass'y (42'')Arm Ass'y (42'')
-
29207025044 Hex. Screw M12 x 50Hex. Screw M12 x 50
-
30232521414 Elastic Stop Nut M12Elastic Stop Nut M12
-
31230020044 Hex. Screw M12 x 100Hex. Screw M12 x 100
-
32232521414 Elastic Stop Nut M12Elastic Stop Nut M12
-
33517254900 Rear Link PlateRear Link Plate
-
34517254800 Front Link PlateFront Link Plate
-
35518306700 SupportSupport
-
37390404900 Pop Rivet 1/4 ''Pop Rivet 1/4 ''
-
38408200700 Grease FittingGrease Fitting
-
39293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
40219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
41293550014 Grease, Super Lube #823-28Grease, Super Lube #823-28
