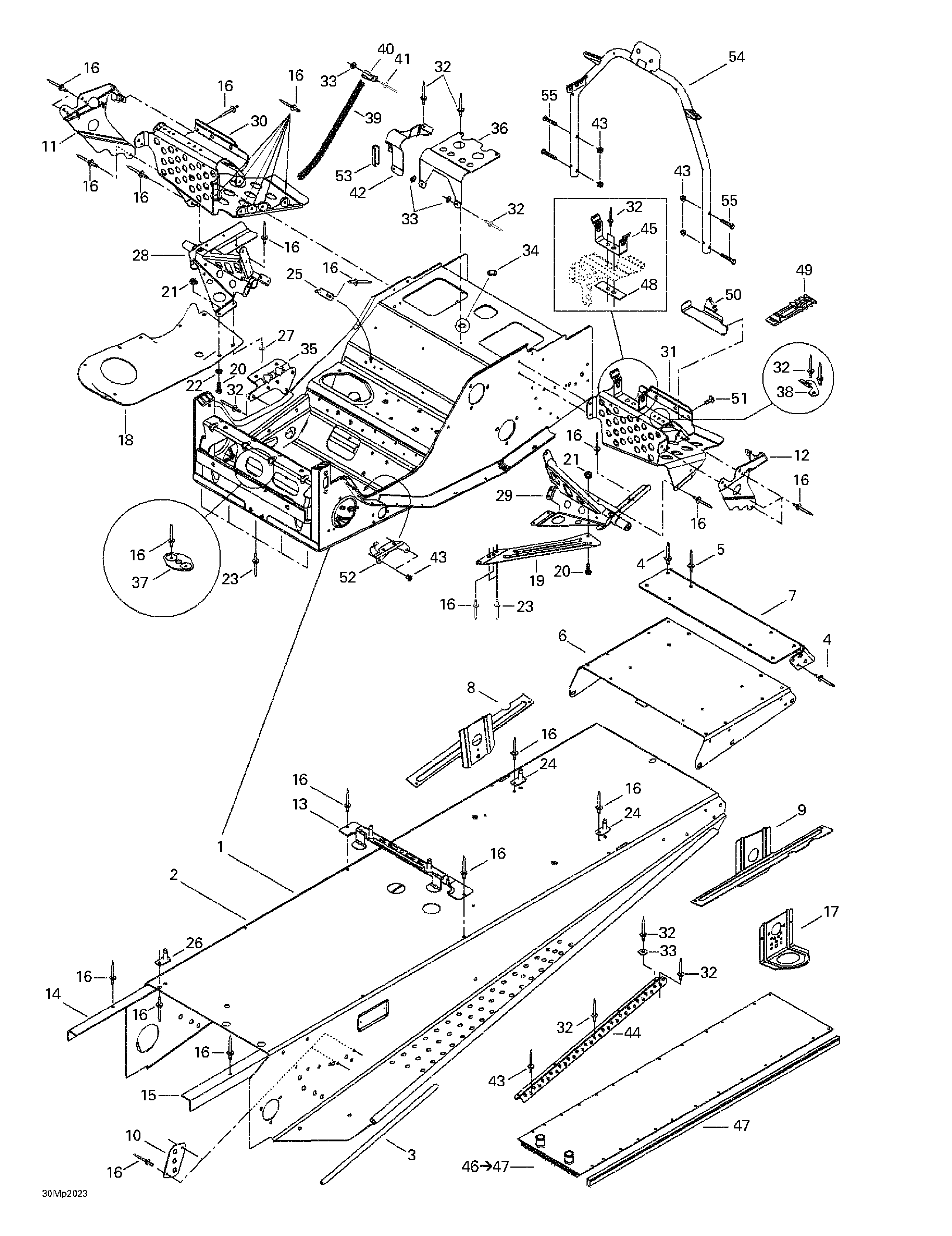

09- Frame And Accessories для BRP Ski-Doo Summit 800 H.M. - 2000
-
№АртикулНазвание
-
1518322100 Frame. Includes 1 - 7.Frame. Includes 1 - 7.
-
2518322118 Forming Frame (Tunnel)Forming Frame (Tunnel)
-
3518304746 Footrest ReinforcementFootrest Reinforcement
-
4390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
5390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
6518321858 Frame ExtensionFrame Extension
-
7518321964 Rear CapRear Cap
-
8518321965 R.H. Slide BracketR.H. Slide Bracket
-
9518321966 L.H. Slide BracketL.H. Slide Bracket
-
10518201321 Reinforcement PlateReinforcement Plate
-
11518321305 R.H. Footrest ReinforcementR.H. Footrest Reinforcement
-
12518321307 L.H. Footrest ReinforcementL.H. Footrest Reinforcement
-
13518322022 Fuel Tank BracketFuel Tank Bracket
-
14518321919 R.H. Frame ReinforcementR.H. Frame Reinforcement
-
15518321920 L.H. Frame ReinforcementL.H. Frame Reinforcement
-
16390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
17518321495 Front BracketFront Bracket
-
18518319760 R.H. Bottom Pan PlateR.H. Bottom Pan Plate
-
19518322119 L.H. Reinforcement PlateL.H. Reinforcement Plate
-
20207152044 Hex. Screw M5 x 20Hex. Screw M5 x 20
-
21233251414 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
22391301700 Flat WasherFlat Washer
-
23390910300 Rivet HenrobRivet Henrob
-
24518319730 Seat BracketSeat Bracket
-
25518319728 Double BracketDouble Bracket
-
26518321604 GuideGuide
-
27390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
28518320506 R.H. Footrest SupportR.H. Footrest Support
-
29518320507 L.H. Footrest SupportL.H. Footrest Support
-
30518319722 R.H. FootrestR.H. Footrest
-
31518319723 L.H. FootrestL.H. Footrest
-
32390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
33517225900 Flat WasherFlat Washer
-
34414859400 CapCap
-
35518206300 Muffler SupportMuffler Support
-
36518310400 Air Intake SupportAir Intake Support
-
37518201307 BracketBracket
-
38518322031 Tool Kit BracketTool Kit Bracket
-
39518321569 Rope GuideRope Guide
-
40518321570 ClipClip
-
41390406500 Pop Rivet 3/16''Pop Rivet 3/16''
-
42518319762 Hose SupportHose Support
-
43233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
44518319405 StripStrip
-
45518202100 Pulley Guard BracketPulley Guard Bracket
-
46518321868 Rear Radiator. Includes 46 - 47.Rear Radiator. Includes 46 - 47.
-
48518207500 ReinforcementReinforcement
-
49570069700 LatchLatch
-
50518321999 Tool Kit SupportTool Kit Support
-
51390406500 Pop Rivet 3/16''Pop Rivet 3/16''
-
52515175254 Cable SupportCable Support
-
53271000110 TrimTrim
-
54518321957 Handle SupportHandle Support
-
55207663544 Hex. Flange Screw M6 x 35Hex. Flange Screw M6 x 35
