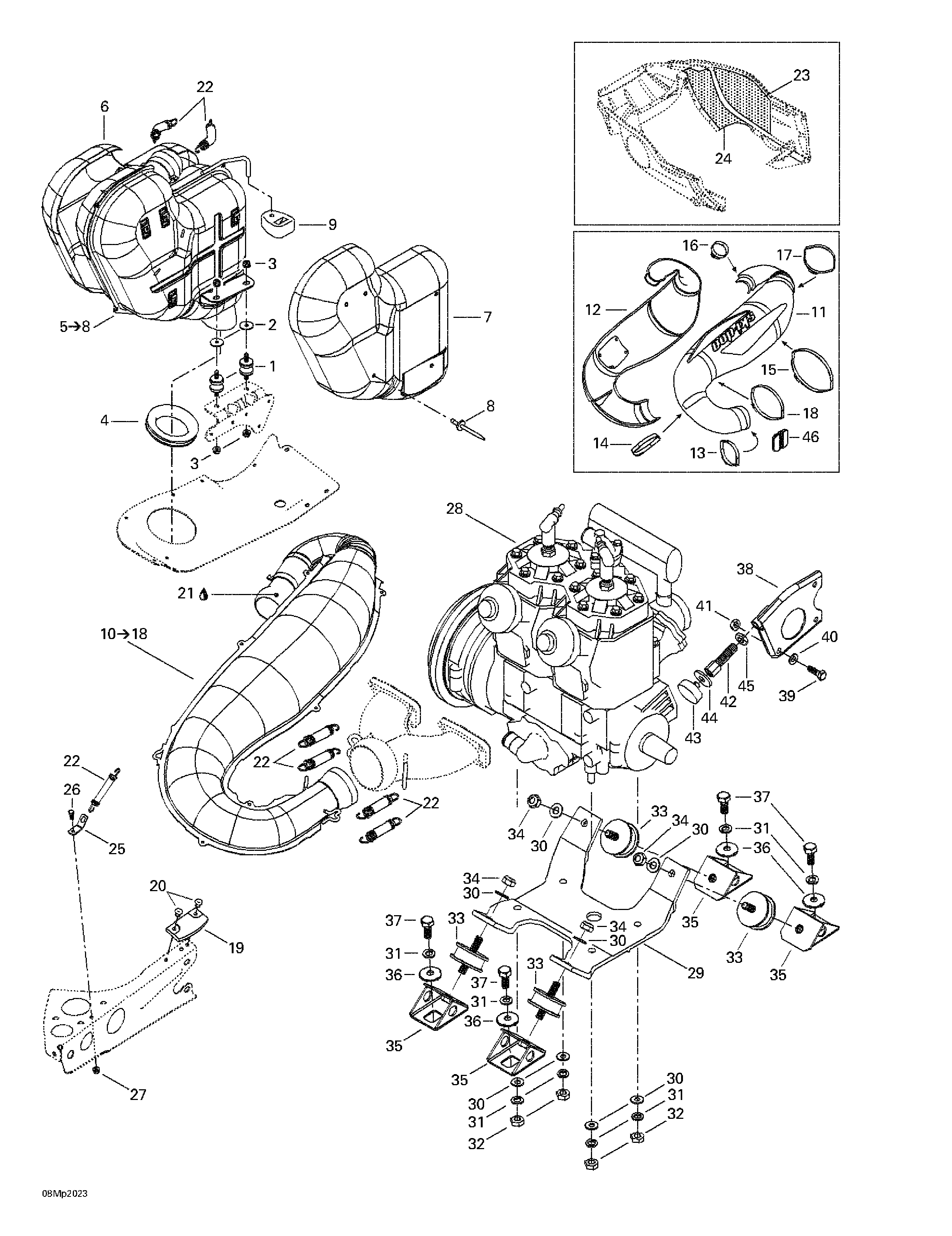

01- Engine Support And Muffler для BRP Ski-Doo Summit 800 H.M. - 2000

  • №
    Артикул
    Название
  • 1
    514052994 Rubber Mount
    Rubber Mount
  • 2
    514052891 Isolating Washer
    Isolating Washer
  • 3
    233281414 Elastic Flanged Nut M8
    Elastic Flanged Nut M8
  • 4
    514053064 Exhaust Grommet
    Exhaust Grommet
  • 5
    514052995 MufflerAss'y
    MufflerAss'y
  • 6
    514052732 R.H. Heat Shield
    R.H. Heat Shield
  • 7
    514052733 L.H. Heat Shield
    L.H. Heat Shield
  • 8
    390910000 Pop Rivet 3/16
    Pop Rivet 3/16
  • 9
    514052704 Rubber Bumper
    Rubber Bumper
  • 10
    514053002 TunedPipeAss'y
    TunedPipeAss'y
  • 11
    514053008 Upper Enveloppe
    Upper Enveloppe
  • 12
    514053009 Lower Enveloppe
    Lower Enveloppe
  • 13
    514053074 Norma Gear Clamp
    Norma Gear Clamp
  • 14
    514052962 Norma Gear Clamp
    Norma Gear Clamp
  • 15
    514052735 Norma Gear Clamp
    Norma Gear Clamp
  • 16
    514052859 Norma Gear Clamp
    Norma Gear Clamp
  • 17
    514052962 Norma Gear Clamp
    Norma Gear Clamp
  • 18
    514052902 Norma Gear Clamp
    Norma Gear Clamp
  • 19
    570044100 Rubber Pad
    Rubber Pad
  • 20
    390406500 Pop Rivet 3/16
    Pop Rivet 3/16
  • 21
    413710300 Sealant, Loctite 17914, 80 ml
    Sealant, Loctite 17914, 80 ml
  • 22
    415107100 Spring
    Spring
  • 23
    514052718 Reflective Sheet
    Reflective Sheet
  • 24
    514052719 Reflective Sheet
    Reflective Sheet
  • 25
    514053026 Spring Bracket
    Spring Bracket
  • 26
    207151244 Hex. Screw M5 x 12
    Hex. Screw M5 x 12
  • 27
    233251414 Elastic Flanged Nut M5
    Elastic Flanged Nut M5
  • 28
    400702601 > Engine. CAUTION: When order the ''793'' engine type (P/N 400702601), you must also order the following parts (for high altitude): Spring (P/N 420 239 940) quantity: 2. (Refer to ''Cylinder, Exhaust Manifold, Reed Valve'' section.
    > Engine. CAUTION: When order the ''793'' engine type (P/N 400702601), you must also order the following parts (for high altitude): Spring (P/N 420 239 940) quantity: 2. (Refer to ''Cylinder, Exhaust Manifold, Reed Valve'' section.
  • 29
    512059173 Engine Support
    Engine Support
  • 30
    234001410 Flat Washer 10 mm
    Flat Washer 10 mm
  • 31
    234100602 Lock Spring Washer 10 mm
    Lock Spring Washer 10 mm
  • 32
    232006414 Hex. Nut M10
    Hex. Nut M10
  • 33
    570128700 Rubber Mount
    Rubber Mount
  • 34
    233601416 Elastic Locking Nut M10
    Elastic Locking Nut M10
  • 35
    512050900 Engine Support
    Engine Support
  • 36
    512056700 Lock Washer
    Lock Washer
  • 37
    207102544 Hex. Screw M10 x 25
    Hex. Screw M10 x 25
  • 38
    512058500 Support Plate
    Support Plate
  • 39
    207182044 Hex. Screw M8 x 20
    Hex. Screw M8 x 20
  • 40
    234081410 Flat Washer 8 mm
    Flat Washer 8 mm
  • 41
    232581414 Elastic Stop Nut M8
    Elastic Stop Nut M8
  • 42
    512058800 Stopper Screw
    Stopper Screw
  • 43
    512059056 Stopper
    Stopper
  • 44
    512059057 Washer
    Washer
  • 45
    732610019 R.H. Hex. Jam Nut M12
    R.H. Hex. Jam Nut M12
  • 46
    514053180 Rubber Pad
    Rubber Pad
