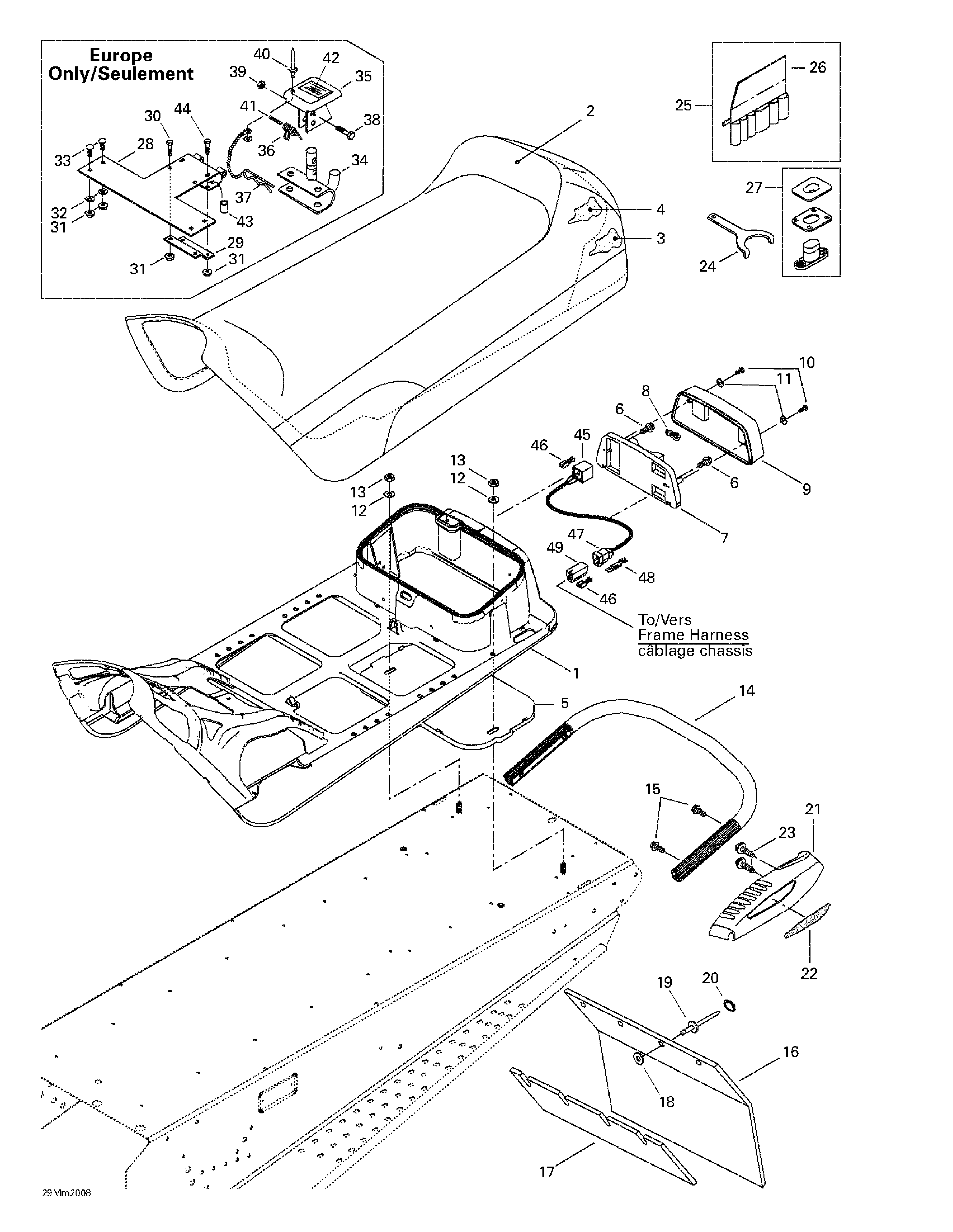

09- Seat And Accessories для BRP Ski-Doo Summit 600/SB - 2000
-
№АртикулНазвание
-
1572107600 Seat BaseSeat Base
-
2510003745 Seat CoverSeat Cover
-
3510003608 Seat FoamSeat Foam
-
4510003500 Seat FoamSeat Foam
-
5572107601 Under ChestUnder Chest
-
6732603006 Hex. ScrewHex. Screw
-
7414513600 Light HousingLight Housing
-
8410504000 Tail Lamp BulbTail Lamp Bulb
-
9414513700 LensLens
-
10209632540 Tapping ScrewTapping Screw
-
11414516400 WasherWasher
-
12234082410 Flat Washer 8 mmFlat Washer 8 mm
-
13232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
14518318200 Rear BumperRear Bumper
-
517243800 Rear Bumper (Europe)Rear Bumper (Europe)
-
15207682044 Hex. Flange Screw M8 x 20Hex. Flange Screw M8 x 20
-
16520000180 Snow GuardSnow Guard
-
520000181 Snow Guard (Europe)Snow Guard (Europe)
-
17572108200 ReinforcementReinforcement
-
18517225900 Flat WasherFlat Washer
-
19390908000 Pop Rivet (Black)Pop Rivet (Black)
-
20415073300 CapCap
-
21572097300 R.H. MouldingR.H. Moulding
-
572097400 L.H. MouldingL.H. Moulding
-
22516000237 R.H. ReflectorR.H. Reflector
-
516000241 R.H. Rear Reflector (Europe)R.H. Rear Reflector (Europe)
-
516000238 LH ReflectorLH Reflector
-
516000242 L.H. Rear Reflector (Europe)L.H. Rear Reflector (Europe)
-
23365901100 Hex. Tapping ScrewHex. Tapping Screw
-
24529032900 Wrench Adjuster (RR. Susp.)Wrench Adjuster (RR. Susp.)
-
25529035596 Tool Kit. Includes 25 - 26.Tool Kit. Includes 25 - 26.
-
26520000047 Tool BagTool Bag
-
27414728000 Seat BuckleSeat Buckle
-
28511000030 Fixation (Europe)Fixation (Europe)
-
29511000022 Reinforcement (Europe)Reinforcement (Europe)
-
30207161844 Hex. Screw M6 x 18 (Europe)Hex. Screw M6 x 18 (Europe)
-
31233261414 Elastic Flanged Nut M6 (Europe)Elastic Flanged Nut M6 (Europe)
-
32224061201 Flat Washer (Europe)Flat Washer (Europe)
-
33207762044 Carriage Bolt M6 x 20 (Europe)Carriage Bolt M6 x 20 (Europe)
-
34517199300 Hitch (Europe)Hitch (Europe)
-
35517152700 Hitch Protector (Europe)Hitch Protector (Europe)
-
36517152800 Spring (Europe)Spring (Europe)
-
37114045200 Hair Pin (Europe)Hair Pin (Europe)
-
38207063044 Hex. Screw M6 x 30 (Europe)Hex. Screw M6 x 30 (Europe)
-
39232561414 Elastic Stop Nut M6 (Europe)Elastic Stop Nut M6 (Europe)
-
40390409400 Pop Rivet (Europe)Pop Rivet (Europe)
-
41732804000 Pin Spring (Europe)Pin Spring (Europe)
-
42414998500 Instruction Label (Europe)Instruction Label (Europe)
-
43517191700 Spacer (Europe)Spacer (Europe)
-
44207065044 Hex. Screw M6 x 50 (Europe)Hex. Screw M6 x 50 (Europe)
-
45515175250 Female Connector Housing (3 Circuits)Female Connector Housing (3 Circuits)
-
46561503100 Female TerminalFemale Terminal
-
47409204200 Male Connector Housing (3 Circuits)Male Connector Housing (3 Circuits)
-
48409206100 Male Terminal (20/18 Ga.)Male Terminal (20/18 Ga.)
-
49409204300 Female Connector Housing (3 Circuits)Female Connector Housing (3 Circuits)
