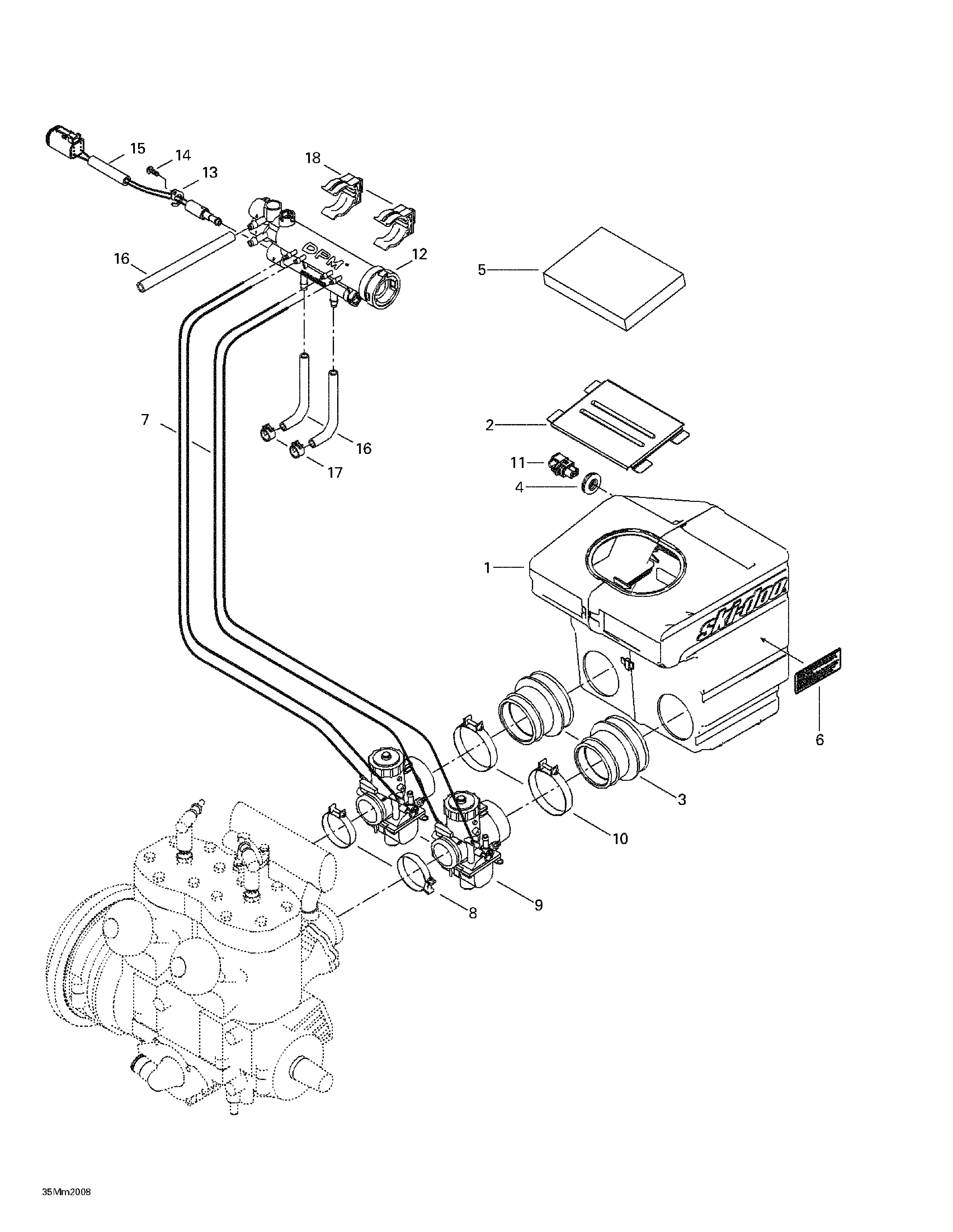

02- Air Intake System для BRP Ski-Doo Summit 600/SB - 2000
-
№АртикулНазвание
-
1508000081 Air Intake Ass'y. Includes 1 - 7.Air Intake Ass'y. Includes 1 - 7.
-
2508000004 Intake GrillIntake Grill
-
3570068900 Air Intake Adaptor (40 mm)Air Intake Adaptor (40 mm)
-
4570065500 GrommetGrommet
-
5415103200 Air FilterAir Filter
-
6516000130 Label CautionLabel Caution
-
7404161814 HoseHose
-
8512059006 ClampClamp
-
9403138618 Carburetor VM40-126Carburetor VM40-126
-
10508000009 ClampClamp
-
11270600000 Air SensorAir Sensor
-
12512059193 Pressure Manifold Ass'y. Includes 12 - 15.Pressure Manifold Ass'y. Includes 12 - 15.
-
13415061600 Solenoid LockSolenoid Lock
-
14241140060 Screw K40 x 10Screw K40 x 10
-
15515175271 Pressure Manifold HarnessPressure Manifold Harness
-
16415080200 LineLine
-
17414554800 Spring ClampSpring Clamp
-
18512058919 SupportSupport
