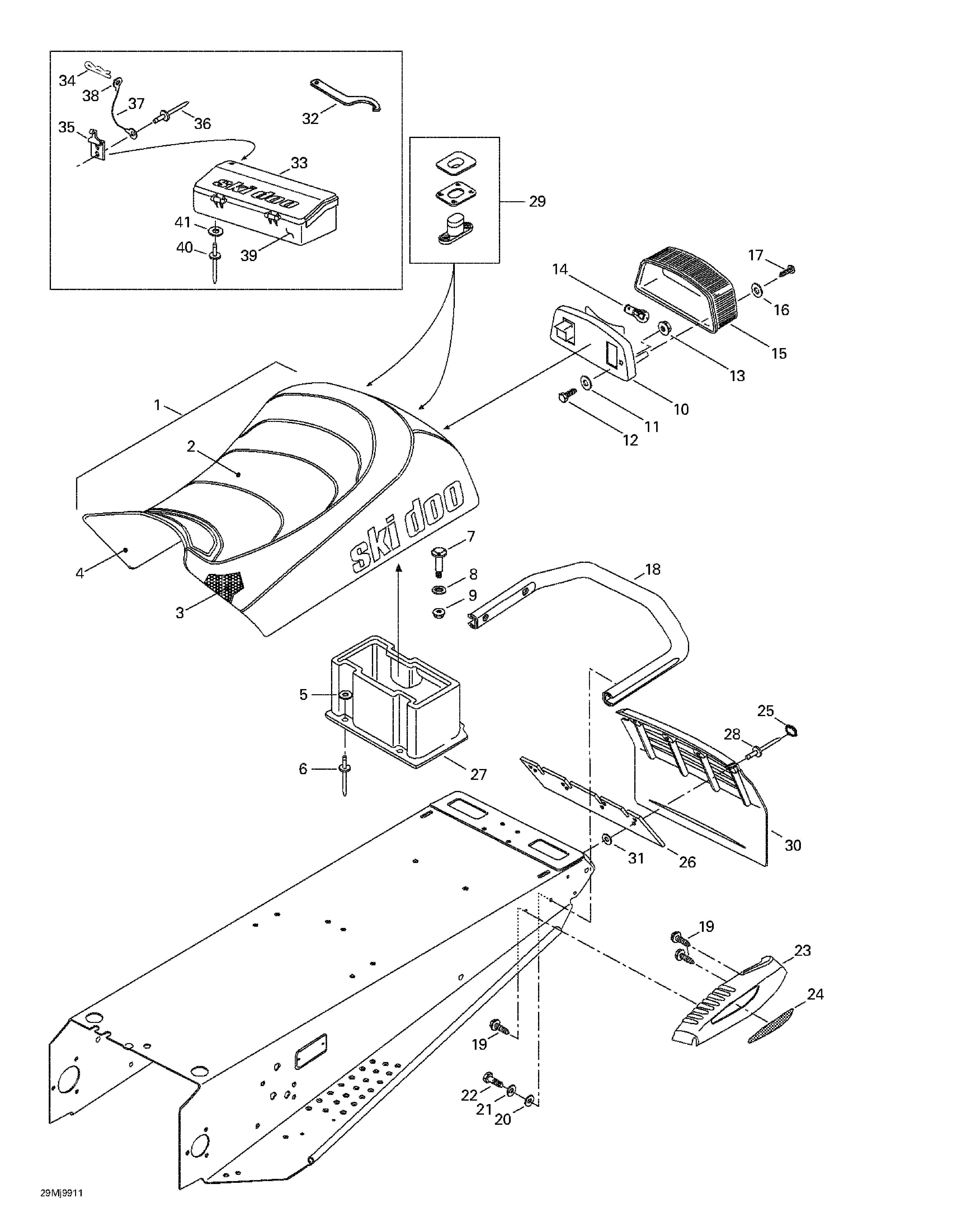

09- Seat And Accessories для BRP Ski-Doo Mach 1 R - 2000
-
№АртикулНазвание
-
2510003770 Seat CoverSeat Cover
-
3415046302 Foam SeatFoam Seat
-
4572088200 Sub-SeatSub-Seat
-
5517297900 WasherWasher
-
6390409600 RivetRivet
-
7732601221 > Bolt> Bolt
-
8732610072 Push NutPush Nut
-
9233261414 Elastic Flanged Stop Nut M6Elastic Flanged Stop Nut M6
-
10414513600 Taillamp HousingTaillamp Housing
-
11517297900 WasherWasher
-
12207053044 Hex. Screw M5 x 30Hex. Screw M5 x 30
-
13233251414 Elastic Flanged Stop Nut M5Elastic Flanged Stop Nut M5
-
14410504000 BulbBulb
-
15414513700 LensLens
-
16414516400 Plastic WasherPlastic Washer
-
17209632540 Phillips Tapping ScrewPhillips Tapping Screw
-
18518314000 Rear BumperRear Bumper
-
19365901100 Self Tapping Screw M12 x 3/4Self Tapping Screw M12 x 3/4
-
20234081410 Flat Washer 8 mmFlat Washer 8 mm
-
21234181401 Lock Washer 8 mmLock Washer 8 mm
-
22207182044 Hex. Screw M8 x 20Hex. Screw M8 x 20
-
23518321580 R.H. MouldingR.H. Moulding
-
518321579 L.H. MouldingL.H. Moulding
-
24516000237 Reflector R.HReflector R.H
-
516000238 LH ReflectorLH Reflector
-
25415073300 CapCap
-
26572108200 ReinforcementReinforcement
-
27572106300 Rear TrunkRear Trunk
-
28390908000 RivetRivet
-
29414728000 Buckle-SeatBuckle-Seat
-
30572103805 Snow GuardSnow Guard
-
31517225900 WasherWasher
-
32529034100 Adjuster Wrech (Suspension)Adjuster Wrech (Suspension)
-
33520000107 Tool Box Ass'y. Includes 33 - 38.Tool Box Ass'y. Includes 33 - 38.
-
34414112400 Hair PinHair Pin
-
35517168500 LatchLatch
-
38561502800 Ring TerminalRing Terminal
-
39529035592 Tool KitTool Kit
-
40390409600 RivetRivet
-
41517124300 WasherWasher
-
42515175250 Female Terminal Housing (3 Circuits)Female Terminal Housing (3 Circuits)
-
43561503100 Female Terminal (16-18 Gauge)Female Terminal (16-18 Gauge)
-
44409204200 Male Terminal Housing (3 Circuits)Male Terminal Housing (3 Circuits)
-
45409206100 Male Terminal (18-20 Gauge)Male Terminal (18-20 Gauge)
-
46409204300 Female Terminal Housing (3 Circuits)Female Terminal Housing (3 Circuits)
