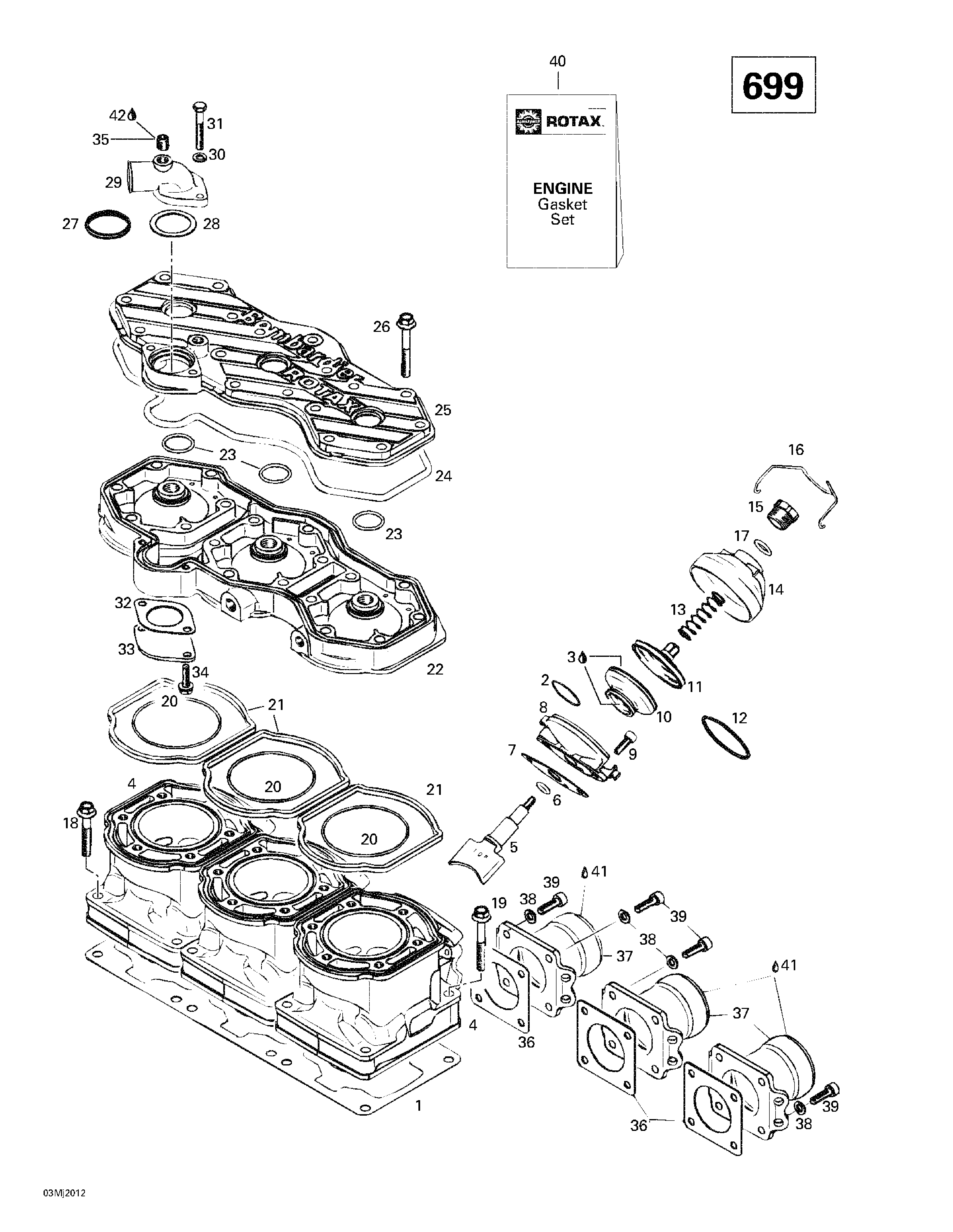

01- Cylinder, Exhaust Manifold (699) для BRP Ski-Doo Mach 1 R - 2000
-
№АртикулНазвание
-
1420931572 Gasket 0.6 mmGasket 0.6 mm
-
420931571 Gasket 0.4 mmGasket 0.4 mm
-
420931570 Gasket 0.3 mmGasket 0.3 mm
-
2420838253 Spring ClampSpring Clamp
-
3413707000 Molykote 111Molykote 111
-
4420923420 Cylinder (Nicasil Coated)Cylinder (Nicasil Coated)
-
5420854307 Exhaust ValveExhaust Valve
-
6420430110 O-RingO-Ring
-
7420250239 GasketGasket
-
8420854265 Valve HousingValve Housing
-
9420241236 Socket Head Screw M6 x 16Socket Head Screw M6 x 16
-
10420260723 BellowsBellows
-
11420854448 Exhaust ValveExhaust Valve
-
12290239048 SpringSpring
-
13420239944 SpringSpring
-
14420911551 Valve CoverValve Cover
-
15420241221 Adjuster ScrewAdjuster Screw
-
16420838082 Spring ClipSpring Clip
-
17420430220 O-RingO-Ring
-
18420640431 Hex. Collar Screw M8 x 45Hex. Collar Screw M8 x 45
-
19420640441 Hex. Collar Screw M8 x 53.5Hex. Collar Screw M8 x 53.5
-
20420831792 O-RingO-Ring
-
21420931320 Seal RingSeal Ring
-
22420923128 Cylinder Head (Silver)Cylinder Head (Silver)
-
23420430782 O-RingO-Ring
-
24420931330 O-RingO-Ring
-
25420923134 Cylinder Head Cover (Silver)Cylinder Head Cover (Silver)
-
26420941621 Hex. Collar Screw M8 x 56.5Hex. Collar Screw M8 x 56.5
-
27420931270 Sealing RingSealing Ring
-
28420927745 Retaining DiskRetaining Disk
-
29420922485 Exhaust SocketExhaust Socket
-
30420945751 Lock Washer 6 mmLock Washer 6 mm
-
31207064044 Hex. Screw M6 x 40Hex. Screw M6 x 40
-
32420850336 Gasket 1.0 mmGasket 1.0 mm
-
33420926260 CoverCover
-
34420240580 Taptite Screw M6 x 16Taptite Screw M6 x 16
-
35420240480 Plug ScrewPlug Screw
-
36420850552 GasketGasket
-
37420978818 Exhaust SocketExhaust Socket
-
38234161471 Lock Washer 6mmLock Washer 6mm
-
39205062544 Socket Head Screw M6 x 25Socket Head Screw M6 x 25
-
40420886313 Gasket SetGasket Set
-
41413710300 Sealant, Loctite 17914, 80 mlSealant, Loctite 17914, 80 ml
-
42293800060 Loctite 243, 10 mlLoctite 243, 10 ml
