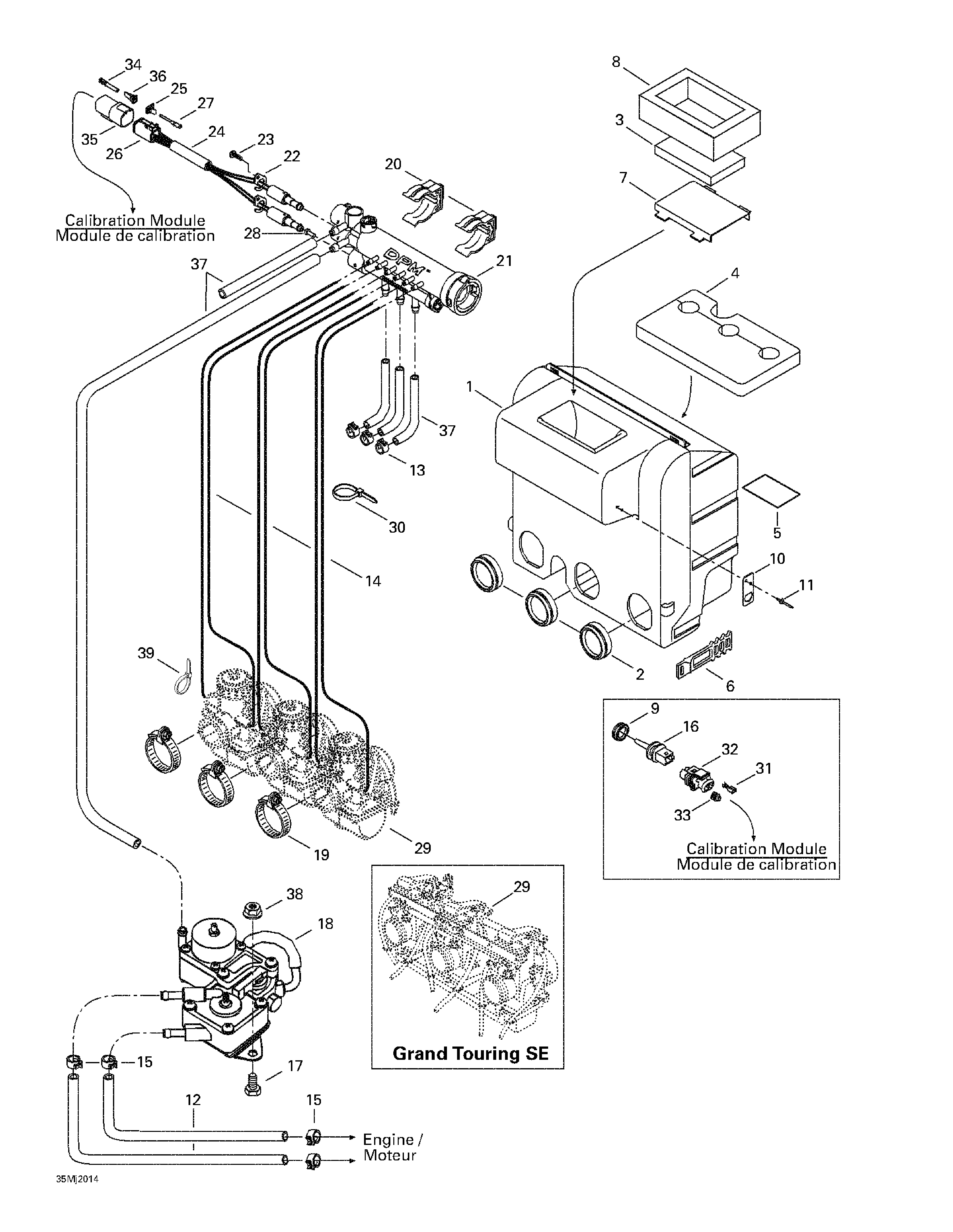

02- Air Intake System для BRP Ski-Doo Grand Touring SE - 2000

  • №
    Артикул
    Название
  • 1
    508000111 Air Silencer Ass'y. Includes 1 - 11. GT 700.
    Air Silencer Ass'y. Includes 1 - 11. GT 700.
  • 508000114 Air Silencer Ass'y. GT SE. GT SE Millennium Edition.
    Air Silencer Ass'y. GT SE. GT SE Millennium Edition.
  • 2
    570065900 Air Adaptor. GT 700.
    Air Adaptor. GT 700.
  • 570069100 Air Adaptor. GT SE. GT SE Millennium Edition.
    Air Adaptor. GT SE. GT SE Millennium Edition.
  • 3
    415081400 Air Filter
    Air Filter
  • 4
    415081200 Inner Foam
    Inner Foam
  • 5
    516000130 Caution Label
    Caution Label
  • 6
    570069700 Latch
    Latch
  • 7
    517294400 Intake Grill
    Intake Grill
  • 8
    415081300 Lower Foam
    Lower Foam
  • 9
    570065500 Grommet
    Grommet
  • 10
    512059211 Support
    Support
  • 11
    293150034 Rivet
    Rivet
  • 12
    415079800 Rubber Hose
    Rubber Hose
  • 13
    414554800 Spring Clamp. GT 700.
    Spring Clamp. GT 700.
  • 14
    404137800 Hose. GT 700.
    Hose. GT 700.
  • 404161888 Hose. GT SE. GT SE Millennium Edition.
    Hose. GT SE. GT SE Millennium Edition.
  • 15
    414415200 Spring Clamp
    Spring Clamp
  • 16
    270600000 Air Sensor (Temperature)
    Air Sensor (Temperature)
  • 17
    207151444 Hex. Screw M5 x 14
    Hex. Screw M5 x 14
  • 18
    512059197 Air Pump
    Air Pump
  • 19
    420951510 Clamp
    Clamp
  • 20
    512058919 Support
    Support
  • 21
    512059160 Pressure Manifold Ass'y. Includes 21 - 28.
    Pressure Manifold Ass'y. Includes 21 - 28.
  • 22
    415061600 Solenoid Lock
    Solenoid Lock
  • 23
    241140060 Screw K40 x 10
    Screw K40 x 10
  • 24
    515175219 Collector Harness. Includes 24 - 27.
    Collector Harness. Includes 24 - 27.
  • 25
    409014900 (Female) Secondary Lock (6 Circuits) (Deutsch)
    (Female) Secondary Lock (6 Circuits) (Deutsch)
  • 26
    409015400 Female Terminal Housing (6 Circuits)
    Female Terminal Housing (6 Circuits)
  • 27
    278000632 Female Terminal
    Female Terminal
  • 28
    404161825 Starter Jet
    Starter Jet
  • 29
    403138612 Carburetor VM 38-436 (PTO/MAG). GT 700.
    Carburetor VM 38-436 (PTO/MAG). GT 700.
  • 403138635 Carburetor VM 38-441 (CTR). GT 700.
    Carburetor VM 38-441 (CTR). GT 700.
  • 403138633 Carburetor Ass'y TM38-C301. GT SE. GT SE Millennium Edition.
    Carburetor Ass'y TM38-C301. GT SE. GT SE Millennium Edition.
  • 30
    293750002 Tie Rap 130 mm. GT SE. GT SE Millennium Edition.
    Tie Rap 130 mm. GT SE. GT SE Millennium Edition.
  • 31
    278000998 Female Terminal
    Female Terminal
  • 32
    278001005 Female Terminal Housing (2 Circuits)
    Female Terminal Housing (2 Circuits)
  • 33
    278000999 Seal
    Seal
  • 34
    409014800 Male Terminal
    Male Terminal
  • 35
    409015200 Male Terminal Housing (4 Circuits)
    Male Terminal Housing (4 Circuits)
  • 36
    409014600 Male Lock (4 Circuits)
    Male Lock (4 Circuits)
  • 37
    415080200 Line
    Line
  • 38
    233251414 Elastic Flanged Stop Nut M5
    Elastic Flanged Stop Nut M5
  • 39
    293750001 Tie Rap 94 mm. GT SE. GT SE Millennium Edition.
    Tie Rap 94 mm. GT SE. GT SE Millennium Edition.
