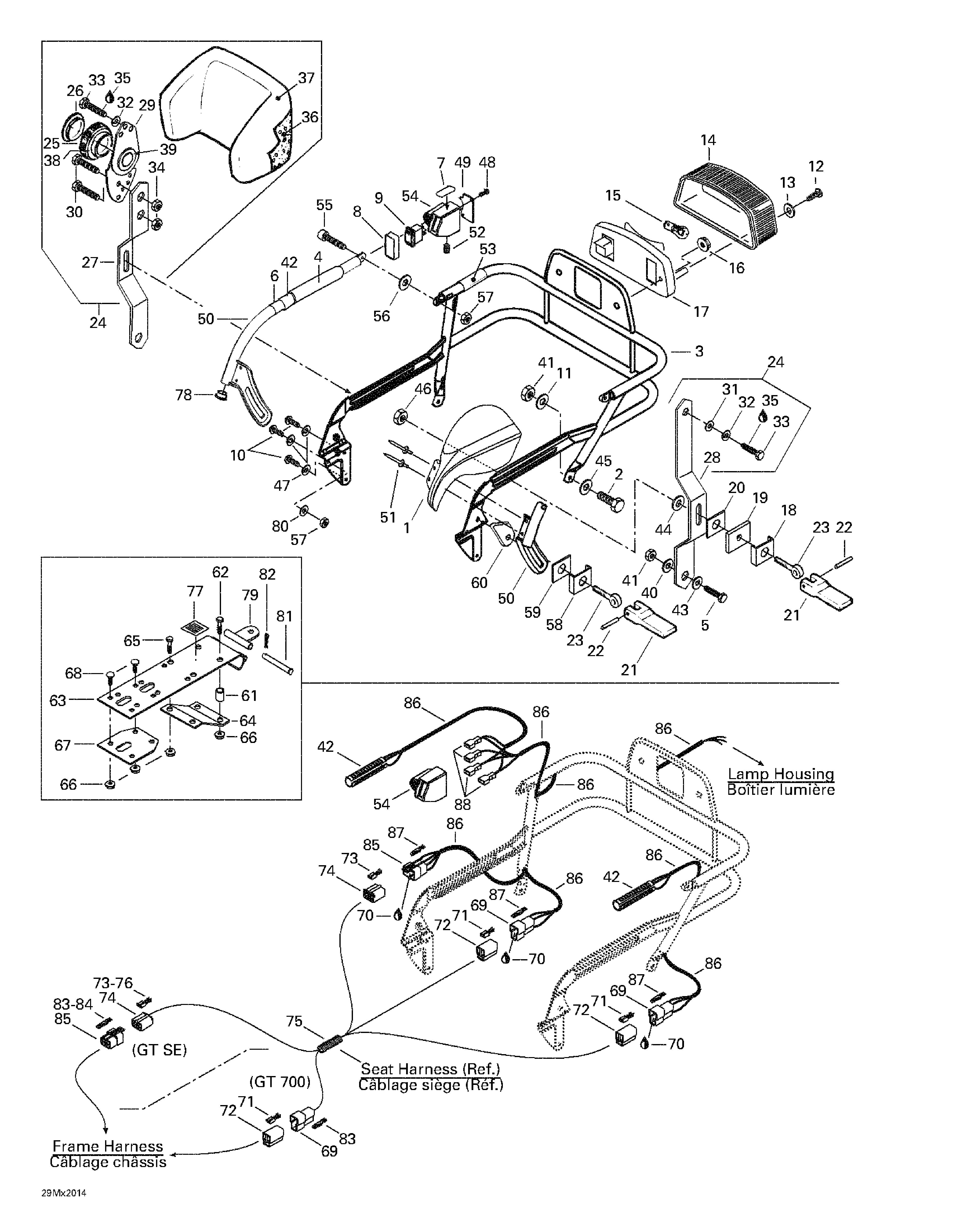

09- Luggage Rack, Hitch для BRP Ski-Doo Grand Touring SE - 2000
-
№АртикулНазвание
-
1572089400 R.H. ProtectorR.H. Protector
-
572089500 L.H. ProtectorL.H. Protector
-
2207182044 Hex. Screw M8 x 20Hex. Screw M8 x 20
-
3511000124 Rack Ass'y. GT 700. GT SE.Rack Ass'y. GT 700. GT SE.
-
511000121 Rack Ass'y. GT SE Millennium Edition.Rack Ass'y. GT SE Millennium Edition.
-
4415050200 L.H. Grip (370 mm)L.H. Grip (370 mm)
-
415050300 R.H. Grip (250 mm)R.H. Grip (250 mm)
-
5207182584 Screw M8 x 25Screw M8 x 25
-
6414988700 Reflective SheetReflective Sheet
-
7418001800 Heat Grip DecalHeat Grip Decal
-
8511000002 Switch ProtectorSwitch Protector
-
9511000001 Rocker SwitchRocker Switch
-
10210261680 Hex. Screw M6 x 16Hex. Screw M6 x 16
-
11503183200 Washer (Yellow)Washer (Yellow)
-
12209632540 Phillips ScrewPhillips Screw
-
13414516400 WasherWasher
-
14414513700 LensLens
-
15410504000 BulbBulb
-
16233251414 Elastic Flanged Stop Nut M5Elastic Flanged Stop Nut M5
-
17515175405 Lamp HousingLamp Housing
-
18517257300 GuideGuide
-
19570027400 Rubber ShimRubber Shim
-
20517251300 SpacerSpacer
-
21572038200 Lock LeverLock Lever
-
22414821400 PinPin
-
23517257600 Eye BoltEye Bolt
-
24510003783 Backrest Ass'y. Includes 24 - 39. GT 700. GT SE Millennium Edition.Backrest Ass'y. Includes 24 - 39. GT 700. GT SE Millennium Edition.
-
510003560 Backrest Ass'y. GT SE.Backrest Ass'y. GT SE.
-
25414820900 Tiller HandleTiller Handle
-
26414821000 CapCap
-
27517296400 R.H. ArmR.H. Arm
-
28517296500 L.H. ArmL.H. Arm
-
29414813300 ReclinerRecliner
-
30207182544 Hex. Screw M8 x 25Hex. Screw M8 x 25
-
31224081201 Flat WasherFlat Washer
-
32234181401 Lock Washer 8 mmLock Washer 8 mm
-
33207182044 Hex. Screw M8 x 20Hex. Screw M8 x 20
-
34232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
35293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
36414821200 Backrest FoamBackrest Foam
-
37510003782 Backrest Cover. GT 700. GT SE Millennium Edition.Backrest Cover. GT 700. GT SE Millennium Edition.
-
510003562 Backrest Cover. GT SE.Backrest Cover. GT SE.
-
38415015500 StripStrip
-
39517250500 CapCap
-
40414819600 WasherWasher
-
41232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
42515175387 HeaterHeater
-
43234081670 Washer 8 mmWasher 8 mm
-
44414819500 WasherWasher
-
45234081410 Flat Washer 8 mmFlat Washer 8 mm
-
46517250000 NutNut
-
47234161601 Lock Washer 6 mmLock Washer 6 mm
-
48732601255 ScrewScrew
-
49572089300 PlatePlate
-
50511000012 R.H. Arm (Rack). GT 700. GT SE.R.H. Arm (Rack). GT 700. GT SE.
-
511000122 R.H. Arm (Rack). GT SE Millennium Edition.R.H. Arm (Rack). GT SE Millennium Edition.
-
517300900 L.H. Arm (Rack). GT 700. GT SE.L.H. Arm (Rack). GT 700. GT SE.
-
511000123 L.H. Arm (Rack). GT SE Millennium Edition.L.H. Arm (Rack). GT SE Millennium Edition.
-
51390906800 Pop RivetPop Rivet
-
52206580890 Screw Set M8 x 8Screw Set M8 x 8
-
53415050400 Grip (Short) (60 mm)Grip (Short) (60 mm)
-
54572089200 Switch HousingSwitch Housing
-
55205061644 Socket Head Screw M6 x 16Socket Head Screw M6 x 16
-
56234062100 Flat Washer 6 mmFlat Washer 6 mm
-
57232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
58517290000 GuideGuide
-
59570063800 Outer SpacerOuter Spacer
-
60572088900 Spacer BlockSpacer Block
-
61517191700 SpacerSpacer
-
62207065044 Hex. Screw M6 x 50Hex. Screw M6 x 50
-
63517275500 SupportSupport
-
64517223500 ReinforcementReinforcement
-
65207162044 Hex. Screw M6 x 20Hex. Screw M6 x 20
-
66233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
67517256100 Inner PlateInner Plate
-
68207762044 Carriage Bolt M6 x 20Carriage Bolt M6 x 20
-
69409204200 Male Terminal Housing (3 Circuits)Male Terminal Housing (3 Circuits)
-
70293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
71561503100 Female TerminalFemale Terminal
-
72409204300 Female Terminal Housing (3 Circuits)Female Terminal Housing (3 Circuits)
-
73561503200 Female TerminalFemale Terminal
-
74409204900 Female Terminal Housing (4 Circuits)Female Terminal Housing (4 Circuits)
-
75415079900 TubingTubing
-
76515175313 Female TerminalFemale Terminal
-
77414998500 Instruction LabelInstruction Label
-
78572110800 CapCap
-
79517008700 Hitch Plate. GT SE. GT SE Millennium Edition.Hitch Plate. GT SE. GT SE Millennium Edition.
-
80234061410 Flat Washer 6 mmFlat Washer 6 mm
-
81505001700 Clevis Pin. GT SE. GT SE Millennium Edition.Clevis Pin. GT SE. GT SE Millennium Edition.
-
82371800200 Cotter Pin. GT SE. GT SE Millennium Edition.Cotter Pin. GT SE. GT SE Millennium Edition.
-
83409206100 Male TerminalMale Terminal
-
84561503400 Male TerminalMale Terminal
-
85409209300 Male Terminal Housing (4 Circuits)Male Terminal Housing (4 Circuits)
-
86515175332 VinylVinyl
-
87409210000 Male TerminalMale Terminal
-
88409010700 Female TerminalFemale Terminal
