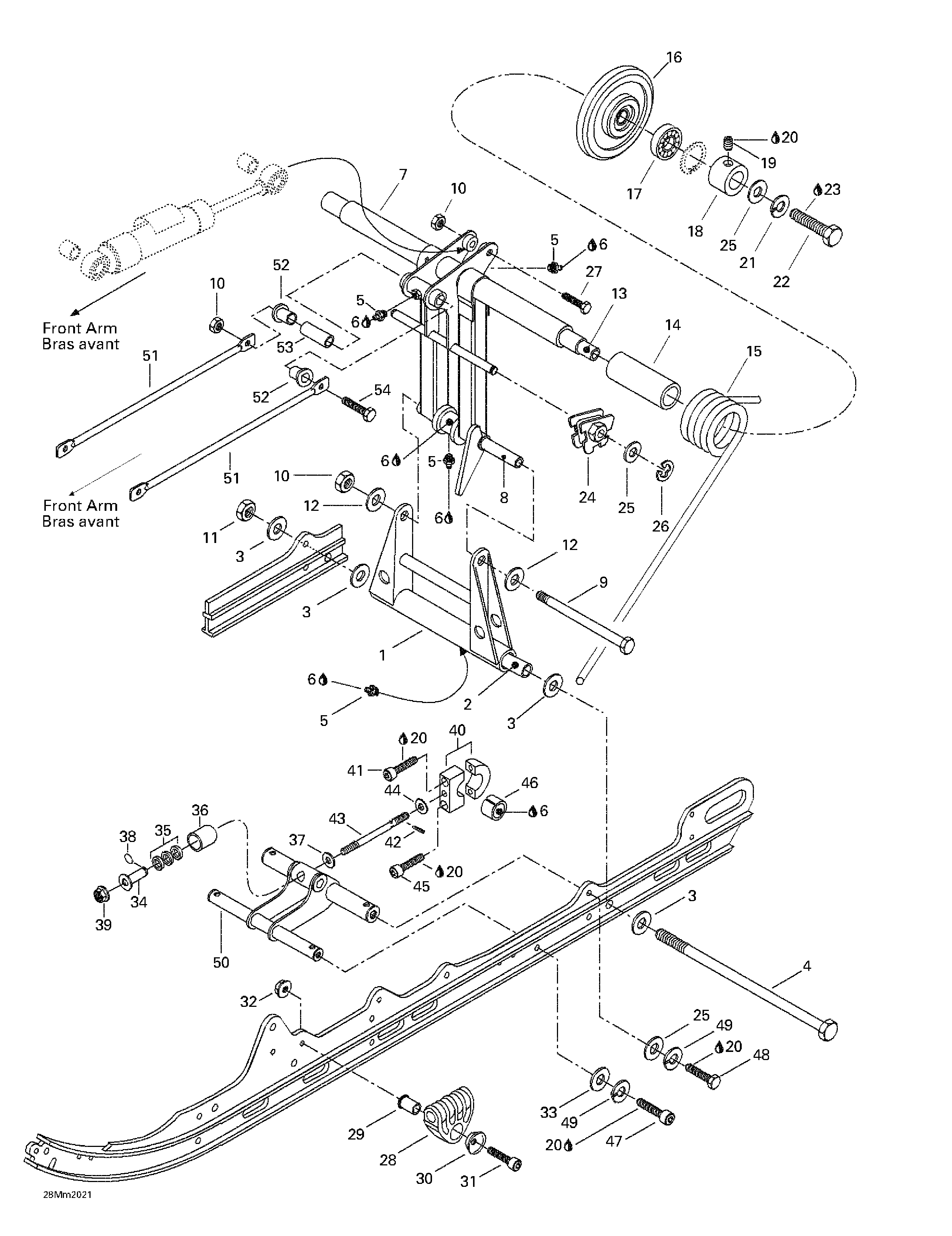

08- Rear Arm для BRP Ski-Doo Grand Touring 600 - 2000
-
№АртикулНазвание
-
1503169200 Pivot ArmPivot Arm
-
2503154703 Lower Axle PivotLower Axle Pivot
-
3224081201 Flat WasherFlat Washer
-
4732601198 Bolt M8 (Long)Bolt M8 (Long)
-
5408200700 Grease Fitting M6Grease Fitting M6
-
6219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
7503188974 Rear ArmRear Arm
-
8503144300 Upper AxleUpper Axle
-
9732601197 Bolt M8 (short)Bolt M8 (short)
-
10232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
11233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
12234081410 Flat Washer 8 mmFlat Washer 8 mm
-
13503168700 Rear Cross ShaftRear Cross Shaft
-
14572080700 BushingBushing
-
15503189338 R.H. SpringR.H. Spring
-
503189327 R.H. Spring (Europe)R.H. Spring (Europe)
-
503189339 L.H. SpringL.H. Spring
-
503189329 L.H. Spring (Europe)L.H. Spring (Europe)
-
16572091400 Idler Wheel 155. Includes 16 - 17.Idler Wheel 155. Includes 16 - 17.
-
17405404500 Ball Bearing 6205Ball Bearing 6205
-
18503168800 Retaining RingRetaining Ring
-
19206260844 Socket Set Screw M6Socket Set Screw M6
-
20293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
21234101601 Lock Washer 10 mmLock Washer 10 mm
-
22207103544 Hex. Screw M10 x 35Hex. Screw M10 x 35
-
23293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
24572030900 R.H. Cam AdjusterR.H. Cam Adjuster
-
572030800 L.H. Cam AdjusterL.H. Cam Adjuster
-
25234001410 Flat Washer 10 mmFlat Washer 10 mm
-
26371907100 Circlip-ECirclip-E
-
27207085044 Hex. Screw M8 x 50Hex. Screw M8 x 50
-
28503188933 Spring SupportSpring Support
-
29503188934 Spring Axle GuideSpring Axle Guide
-
30503188929 Retainer CushionRetainer Cushion
-
31205084544 Socket Head Screw M8 x 45Socket Head Screw M8 x 45
-
32233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
33503176700 Hardened Washer 10 mmHardened Washer 10 mm
-
34503172900 Bushing WeldBushing Weld
-
35570049600 Rubber StopperRubber Stopper
-
36503103600 CupCup
-
37503183400 WasherWasher
-
38371910700 CirclipCirclip
-
39233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
40503189044 Pivot Block Ass'y. Includes 40 - 44.Pivot Block Ass'y. Includes 40 - 44.
-
41205083044 Socket Head Screw M8 x 30Socket Head Screw M8 x 30
-
42732804011 Rolled PinRolled Pin
-
45205083044 Socket Head Screw M8 x 30Socket Head Screw M8 x 30
-
46415027800 CushionCushion
-
47205003544 Socket Head Screw M10 x 35Socket Head Screw M10 x 35
-
48207103044 Hex. Screw M10 x 30Hex. Screw M10 x 30
-
49234100602 Lock Spring Washer 10 mmLock Spring Washer 10 mm
-
50503188969 BracketBracket
-
51503184900 Tie RodTie Rod
-
52415052300 Plastic CushionPlastic Cushion
-
53503171600 Tie Rod ShaftTie Rod Shaft
-
54207089044 Hex. Screw M8 x 90Hex. Screw M8 x 90
