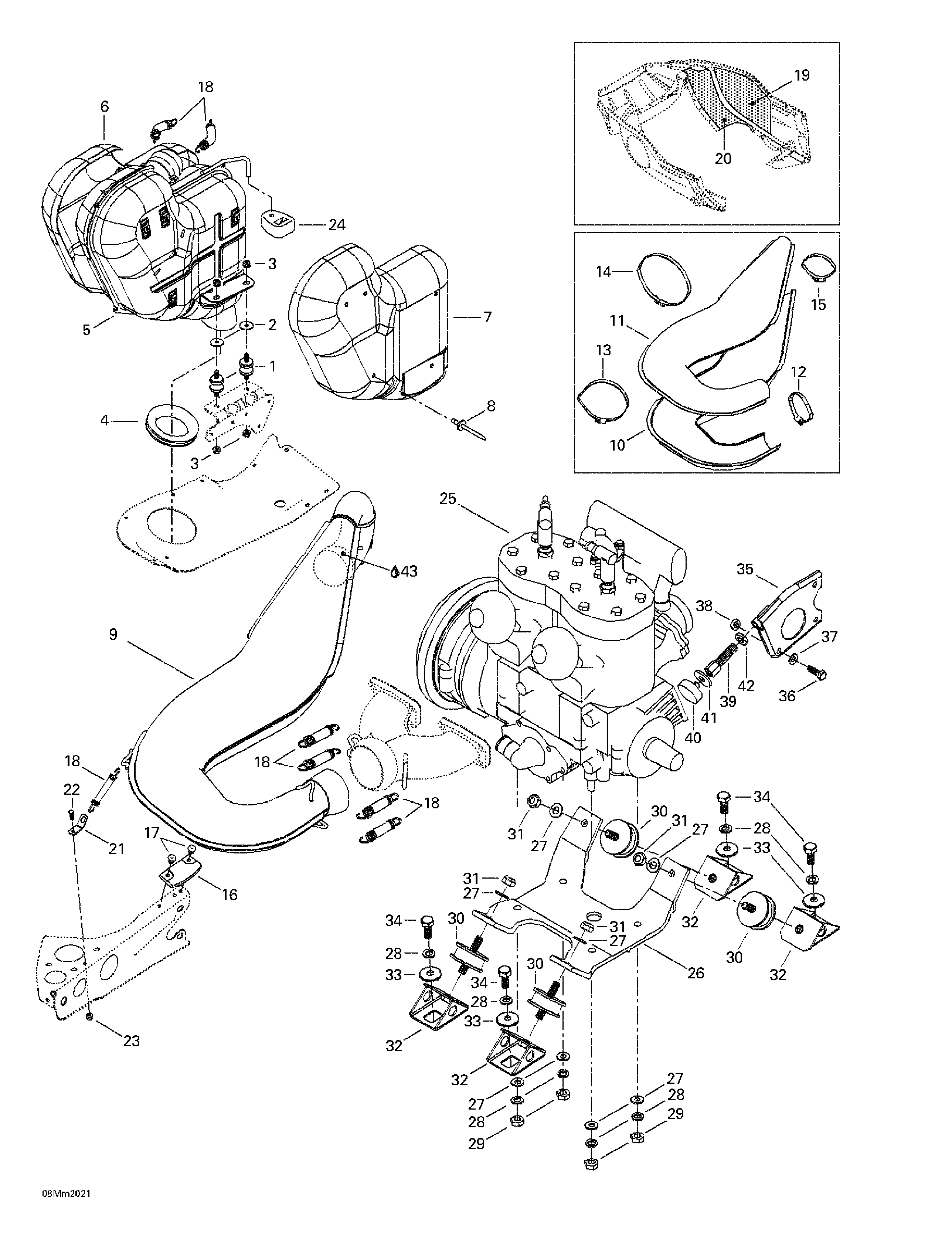

01- Engine Support And Muffler для BRP Ski-Doo Grand Touring 600 - 2000
-
№АртикулНазвание
-
1514052994 Rubber MountRubber Mount
-
2514052891 Isolating WasherIsolating Washer
-
3233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
4570039000 Exhaust GrommetExhaust Grommet
-
5514052724 Muffler Ass'y. Includes 5 - 8.Muffler Ass'y. Includes 5 - 8.
-
6514052732 R.H. Heat ShieldR.H. Heat Shield
-
7514052733 L.H. Heat ShieldL.H. Heat Shield
-
8390910000 Pop Rivet 3/16Pop Rivet 3/16
-
9514053012 Tuned Pipe Ass'y. Includes 9 - 15.Tuned Pipe Ass'y. Includes 9 - 15.
-
10514052984 Lower EnveloppeLower Enveloppe
-
11514052714 Upper EnveloppeUpper Enveloppe
-
12514053074 Norma Gear ClampNorma Gear Clamp
-
13514052962 Norma Gear ClampNorma Gear Clamp
-
14514052735 Norma Gear ClampNorma Gear Clamp
-
15514052859 Norma Gear ClampNorma Gear Clamp
-
16570044100 Rubber PadRubber Pad
-
17390406500 Pop Rivet 3/16Pop Rivet 3/16
-
18415107100 SpringSpring
-
19514052718 Reflective SheetReflective Sheet
-
20514052719 Reflective SheetReflective Sheet
-
21514053026 Spring BracketSpring Bracket
-
22207151244 Hex. Screw M5 x 12Hex. Screw M5 x 12
-
23233251414 Elastic Flange Nut M5Elastic Flange Nut M5
-
24514052704 Rubber BumperRubber Bumper
-
25400509717 > Engine> Engine
-
26512058000 Engine SupportEngine Support
-
27234001410 Flat Washer 10 mmFlat Washer 10 mm
-
28234100602 Lock Washer 10mmLock Washer 10mm
-
29232006414 Nut M10Nut M10
-
30570127700 Rubber MountRubber Mount
-
31233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
32512050900 Engine SupportEngine Support
-
33512056700 Lock WasherLock Washer
-
34207102544 Hex. Screw M10 x 25Hex. Screw M10 x 25
-
35512058500 Support PlateSupport Plate
-
36207182044 Hex. Screw M8 x 20Hex. Screw M8 x 20
-
37234081410 Flat Washer 8 mmFlat Washer 8 mm
-
38232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
39512058800 Stopper ScrewStopper Screw
-
40512059056 StopperStopper
-
41512059057 WasherWasher
-
42732610019 R.H. Hex. Jam Nut M12R.H. Hex. Jam Nut M12
-
43413710300 Sealant, Loctite 17914, 80 mlSealant, Loctite 17914, 80 ml
