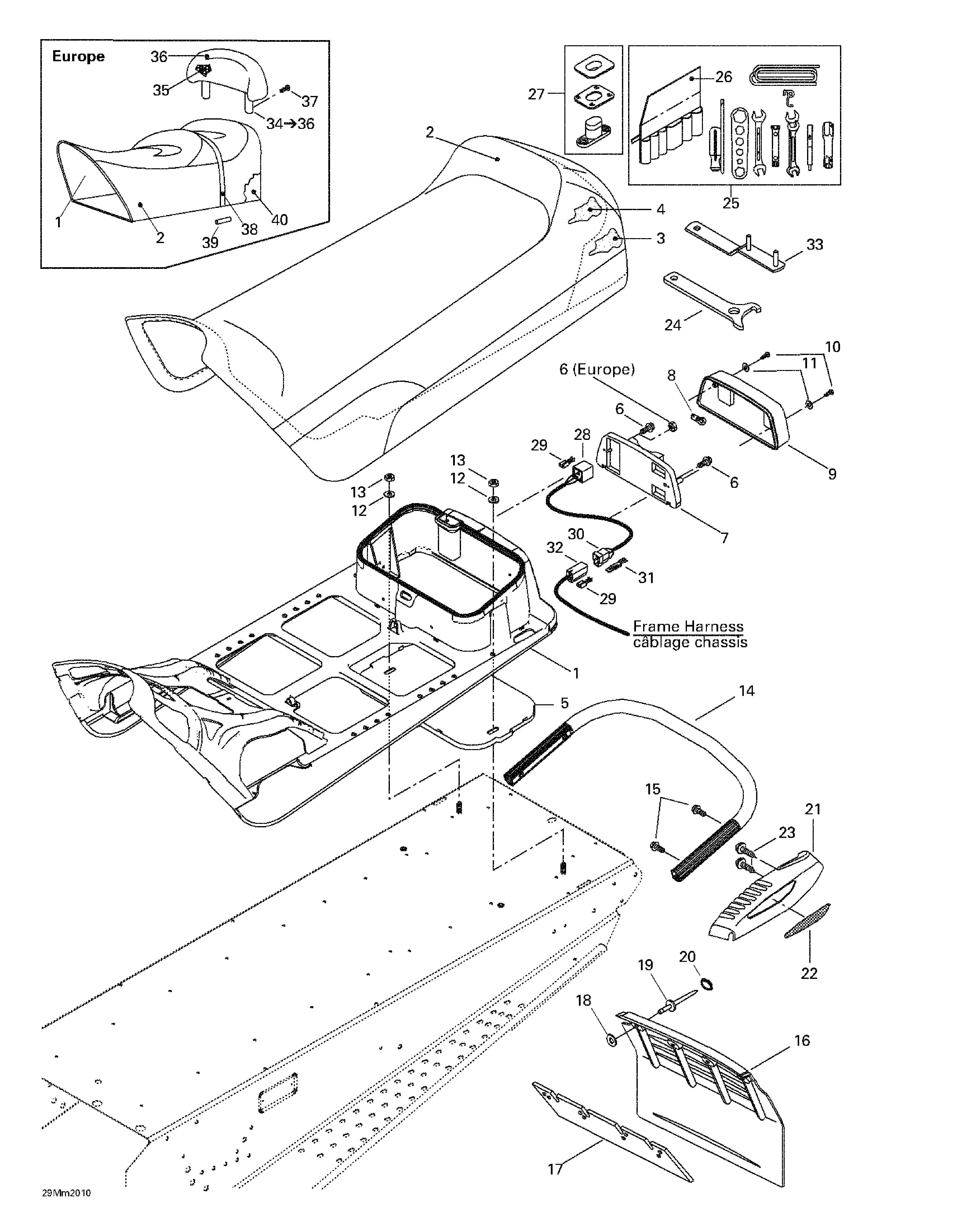

09- Seat And Accessories для BRP Ski-Doo Formula Deluxe 600/700 - 2000
-
№АртикулНазвание
-
1572107600 Seat BaseSeat Base
-
510003766 Seat Base (Europe). Formula Deluxe 700.Seat Base (Europe). Formula Deluxe 700.
-
2510003743 Seat CoverSeat Cover
-
510003767 Seat Cover (Europe). Formula Deluxe 700.Seat Cover (Europe). Formula Deluxe 700.
-
3510003608 Seat FoamSeat Foam
-
4510003500 Seat FoamSeat Foam
-
5572107601 Under ChestUnder Chest
-
6732603006 Hex. ScrewHex. Screw
-
233251414 Flanged Elastic Nut M5 (Europe). Formula Deluxe 700.Flanged Elastic Nut M5 (Europe). Formula Deluxe 700.
-
7414513600 Light HousingLight Housing
-
8410504000 Tail Lamp BulbTail Lamp Bulb
-
9414513700 LensLens
-
10209632540 Tapping ScrewTapping Screw
-
11414516400 WasherWasher
-
12234082410 Flat Washer 8 mmFlat Washer 8 mm
-
13232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
14518318200 Rear BumperRear Bumper
-
15207682044 Hex. Flange Screw M8 x 20Hex. Flange Screw M8 x 20
-
16520000182 Snow GuardSnow Guard
-
17572108200 ReinforcementReinforcement
-
18517225900 Flat WasherFlat Washer
-
19390908000 Pop Rivet 3/16 (Black)Pop Rivet 3/16 (Black)
-
20415073300 CapCap
-
21572092200 R.H. MouldingR.H. Moulding
-
572092300 L.H. MouldingL.H. Moulding
-
22516000237 R.H. Reflector (Red)R.H. Reflector (Red)
-
516000241 R.H. Rear Reflector (Yellow) (Europe). Formula Deluxe 700.R.H. Rear Reflector (Yellow) (Europe). Formula Deluxe 700.
-
516000238 LH Reflector (Red)LH Reflector (Red)
-
516000242 L.H. Rear Reflector (Yellow) (Europe). Formula Deluxe 700.L.H. Rear Reflector (Yellow) (Europe). Formula Deluxe 700.
-
23365901100 Hex. Tapping ScrewHex. Tapping Screw
-
24529032900 Wrench Adjuster (RR. Susp.)Wrench Adjuster (RR. Susp.)
-
25529035596 Tool Kit. Includes 25 - 26.Tool Kit. Includes 25 - 26.
-
26520000047 Tool BagTool Bag
-
27414728000 Seat BuckleSeat Buckle
-
28515175250 Female Connector Housing (3 Circuits)Female Connector Housing (3 Circuits)
-
29561503100 Female TerminalFemale Terminal
-
30409204200 Male Connector Housing (3 Circuits)Male Connector Housing (3 Circuits)
-
31409206100 Male Terminal (20/18 Ga.)Male Terminal (20/18 Ga.)
-
32409204300 Female Connector Housing (3 Circuits)Female Connector Housing (3 Circuits)
-
33520000126 Adjustment WrenchAdjustment Wrench
-
34510003763 Backrest Ass'y (Europe). Includes 34 - 36. Formula Deluxe 700.Backrest Ass'y (Europe). Includes 34 - 36. Formula Deluxe 700.
-
35414916100 Backrest Foam (Europe). Formula Deluxe 700.Backrest Foam (Europe). Formula Deluxe 700.
-
36414897300 Backrest Cover (Europe). Formula Deluxe 700.Backrest Cover (Europe). Formula Deluxe 700.
-
37732600009 Phillips Screw M6 x 18 (Europe). Formula Deluxe 700.Phillips Screw M6 x 18 (Europe). Formula Deluxe 700.
-
38510003762 Seat Belt (Europe). Formula Deluxe 700.Seat Belt (Europe). Formula Deluxe 700.
-
40510003755 Foam Seat (Europe). Formula Deluxe 700.Foam Seat (Europe). Formula Deluxe 700.
