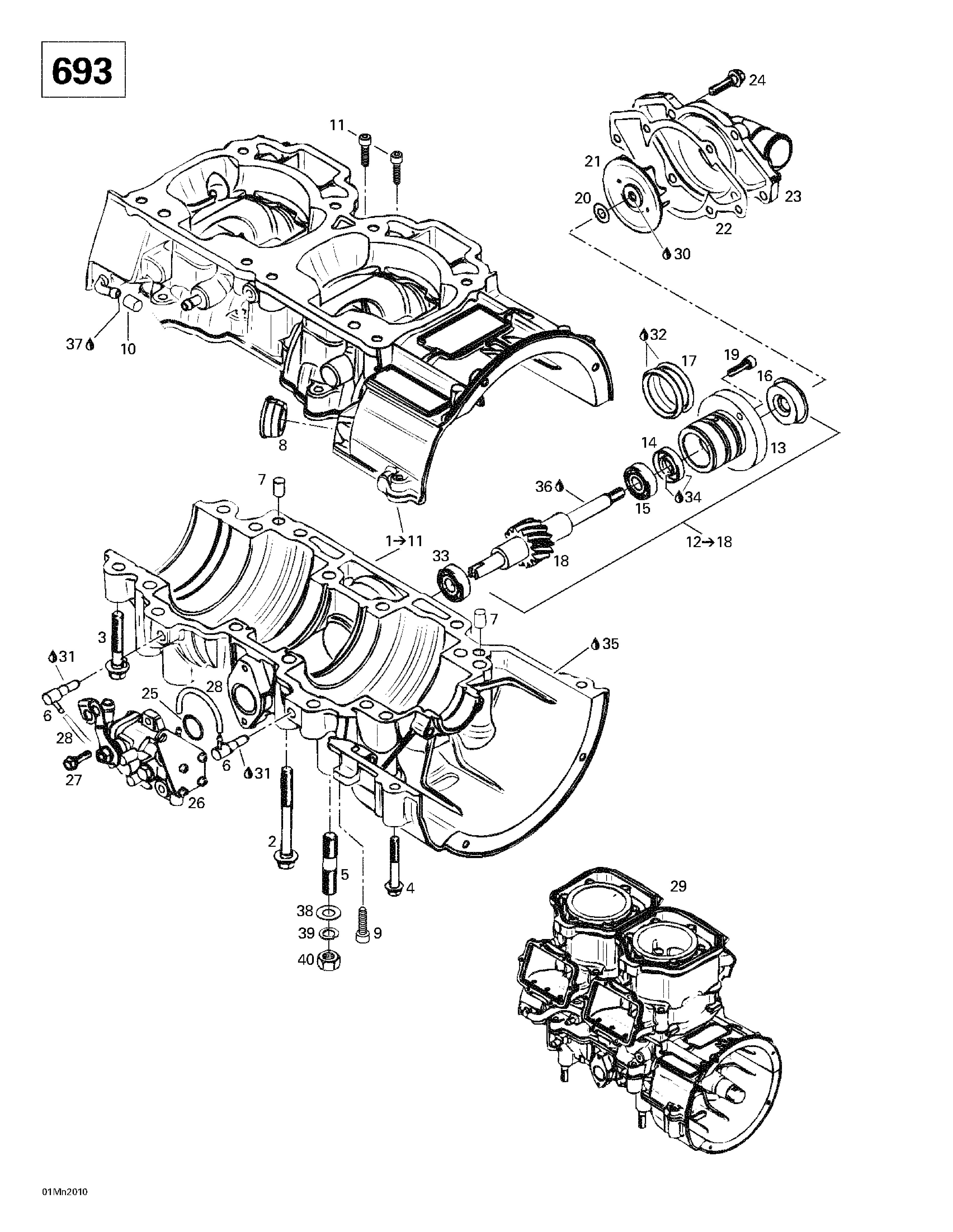

01- Crankcase, Water Pump And Oil Pump 2 для BRP Ski-Doo Formula Deluxe 600/700 - 2000

  • №
    Артикул
    Название
  • 1
    420888274 Crankcase Ass'y. Includes 1 - 11. Formula Deluxe 700.
    Crankcase Ass'y. Includes 1 - 11. Formula Deluxe 700.
  • 2
    420640831 Hex. Collar Screw M8 x 75. Formula Deluxe 700.
    Hex. Collar Screw M8 x 75. Formula Deluxe 700.
  • 3
    420640436 Hex. Collar Screw M8 x 45. Formula Deluxe 700.
    Hex. Collar Screw M8 x 45. Formula Deluxe 700.
  • 4
    420640311 Hex. Collar Screw M6 x 45. Formula Deluxe 700.
    Hex. Collar Screw M6 x 45. Formula Deluxe 700.
  • 5
    420941644 Stud M10 x 23. Formula Deluxe 700.
    Stud M10 x 23. Formula Deluxe 700.
  • 6
    420956510 Check Valve. Formula Deluxe 700.
    Check Valve. Formula Deluxe 700.
  • 7
    420632010 Dowel Pin. Formula Deluxe 700.
    Dowel Pin. Formula Deluxe 700.
  • 8
    420860965 Cable Grommet. Formula Deluxe 700.
    Cable Grommet. Formula Deluxe 700.
  • 9
    205063044 Screw Socket M6 x 30. Formula Deluxe 700.
    Screw Socket M6 x 30. Formula Deluxe 700.
  • 10
    420960770 Cap. Formula Deluxe 700.
    Cap. Formula Deluxe 700.
  • 11
    205062044 Screw Socket M6 x 20. Formula Deluxe 700.
    Screw Socket M6 x 20. Formula Deluxe 700.
  • 12
    420837420 Water Pump/Oil Pump Ass'y. Includes 12 - 18. Formula Deluxe 700.
    Water Pump/Oil Pump Ass'y. Includes 12 - 18. Formula Deluxe 700.
  • 14
    420230195 Oil Seal. Formula Deluxe 700.
    Oil Seal. Formula Deluxe 700.
  • 15
    420232100 Ball Bearing. Formula Deluxe 700.
    Ball Bearing. Formula Deluxe 700.
  • 16
    420650370 Rotary Seal. Formula Deluxe 700.
    Rotary Seal. Formula Deluxe 700.
  • 17
    420950890 O-Ring. Formula Deluxe 700.
    O-Ring. Formula Deluxe 700.
  • 19
    420840511 Allen Screw M5 x 16. Formula Deluxe 700.
    Allen Screw M5 x 16. Formula Deluxe 700.
  • 20
    420227945 Washer. Formula Deluxe 700.
    Washer. Formula Deluxe 700.
  • 21
    420222505 Water Impeller. Formula Deluxe 700.
    Water Impeller. Formula Deluxe 700.
  • 22
    420931810 Gasket. Formula Deluxe 700.
    Gasket. Formula Deluxe 700.
  • 23
    420922630 Water Pump Housing. Formula Deluxe 700.
    Water Pump Housing. Formula Deluxe 700.
  • 24
    420240031 Hex. Screw M6 x 25. Formula Deluxe 700.
    Hex. Screw M6 x 25. Formula Deluxe 700.
  • 25
    420230400 O-Ring. Formula Deluxe 700.
    O-Ring. Formula Deluxe 700.
  • 26
    420888265 Oil Pump Ass'y. Formula Deluxe 700.
    Oil Pump Ass'y. Formula Deluxe 700.
  • 27
    420941925 Screw M5 x 16. Formula Deluxe 700.
    Screw M5 x 16. Formula Deluxe 700.
  • 28
    414413800 Oil Line. Formula Deluxe 700.
    Oil Line. Formula Deluxe 700.
  • 29
    420069303 Short Block Ass'y. Formula Deluxe 700.
    Short Block Ass'y. Formula Deluxe 700.
  • 30
    293800060 Loctite 243, 10 ml. Formula Deluxe 700.
    Loctite 243, 10 ml. Formula Deluxe 700.
  • 31
    413711400 Loctite 648, 10 ml. Formula Deluxe 700.
    Loctite 648, 10 ml. Formula Deluxe 700.
  • 32
    413707000 Molykote 111. Formula Deluxe 700.
    Molykote 111. Formula Deluxe 700.
  • 33
    420232100 Ball Bearing. Formula Deluxe 700.
    Ball Bearing. Formula Deluxe 700.
  • 34
    420899271 Petamo Grease, GHY133N, 400 g. Formula Deluxe 700.
    Petamo Grease, GHY133N, 400 g. Formula Deluxe 700.
  • 35
    420297905 Sealing Compound 2290, 310 ml. Formula Deluxe 700.
    Sealing Compound 2290, 310 ml. Formula Deluxe 700.
  • 36
    413802900 Injection Oil (12 x 1 liter). Formula Deluxe 700.
    Injection Oil (12 x 1 liter). Formula Deluxe 700.
  • 37
    293550021 Isoflex Grease, 45 g. Formula Deluxe 700.
    Isoflex Grease, 45 g. Formula Deluxe 700.
  • 38
    234001410 Flat Washer 10 mm. Formula Deluxe 700.
    Flat Washer 10 mm. Formula Deluxe 700.
  • 39
    234100602 Lock Spring Washer 10 mm. Formula Deluxe 700.
    Lock Spring Washer 10 mm. Formula Deluxe 700.
  • 40
    232006414 Hex. Nut M10. Formula Deluxe 700.
    Hex. Nut M10. Formula Deluxe 700.
