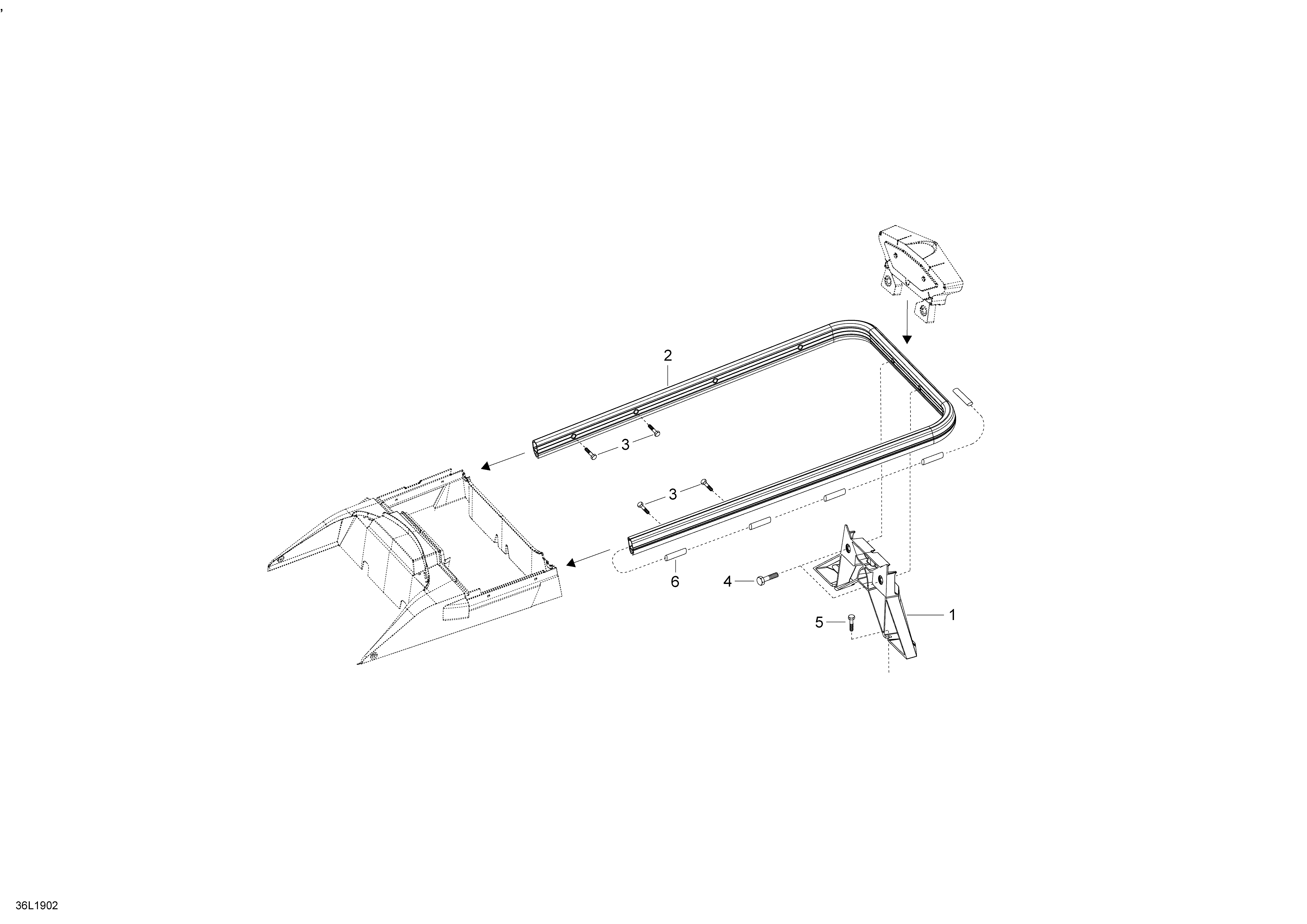

09- Luggage Rack 59 Yeti - 600 ACE для BRP Lynx 001 - 59 YETI 600 ACE - 2019
-
№АртикулНазвание
-
1511000559 Rear Light SupportRear Light Support
-
2511000709 Black Rear BumperBlack Rear Bumper
-
3207561644 Hex.Fla. Screw M6 X 16, Scotch GripHex.Fla. Screw M6 X 16, Scotch Grip
-
4207663054 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
5207662056 Screw Hex. Flange M6 x 20Screw Hex. Flange M6 x 20
-
6511000657 Support HoseSupport Hose
