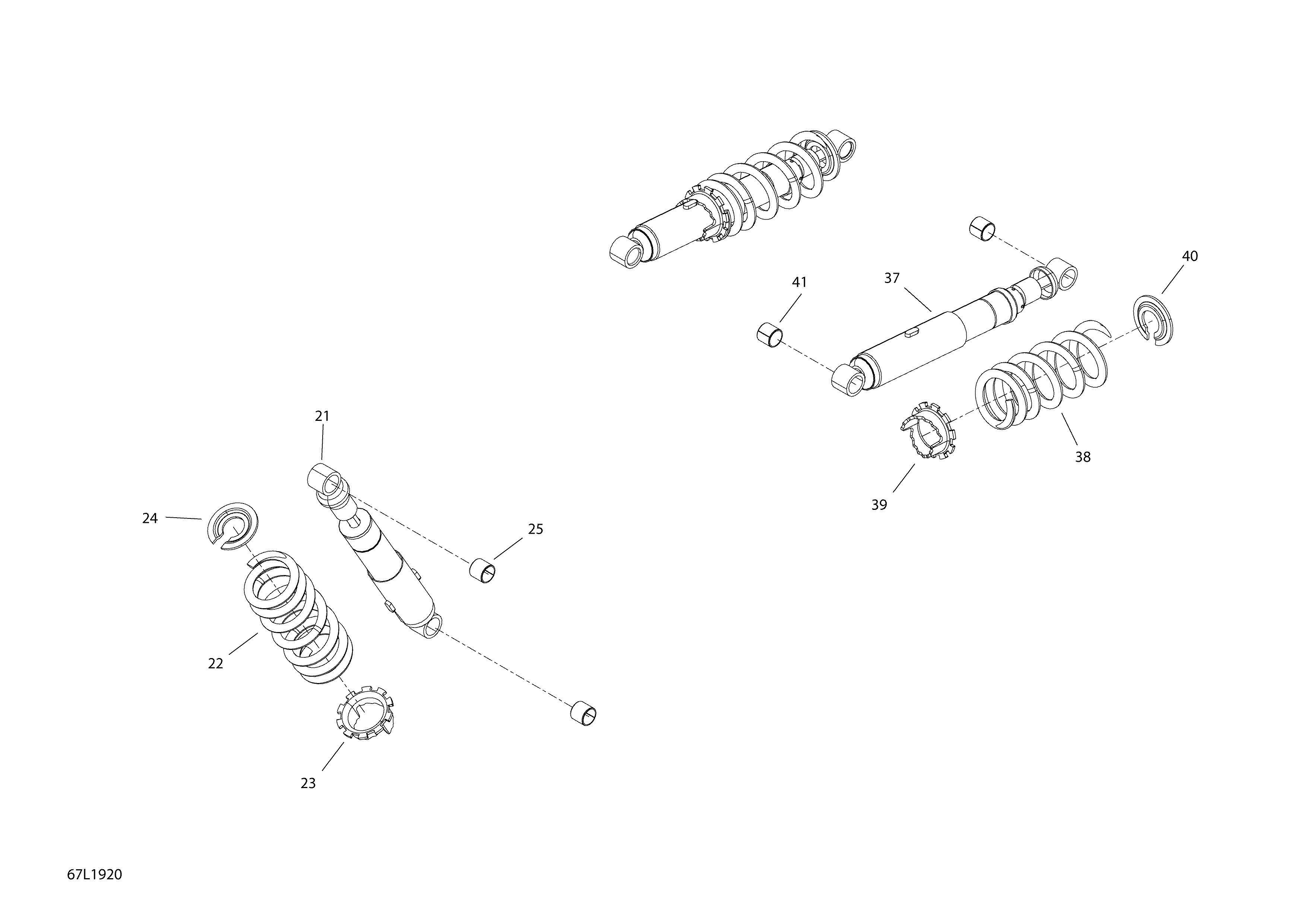

08- Rear Shocks 59 Yeti - 600 ACE - Package STD для BRP Lynx 001 - 59 YETI 600 ACE - 2019
-
№АртикулНазвание
-
21503192369 ShockShock
-
22503192788 SpringSpring
-
23230078 Adjusting CamAdjusting Cam
-
24230076 Spring SeatSpring Seat
-
2531094 CushionCushion
-
37503192371 Shock, RearShock, Rear
-
38503192428 SpringSpring
-
39230078 Adjusting CamAdjusting Cam
-
40230076 Spring SeatSpring Seat
-
4131094 CushionCushion
