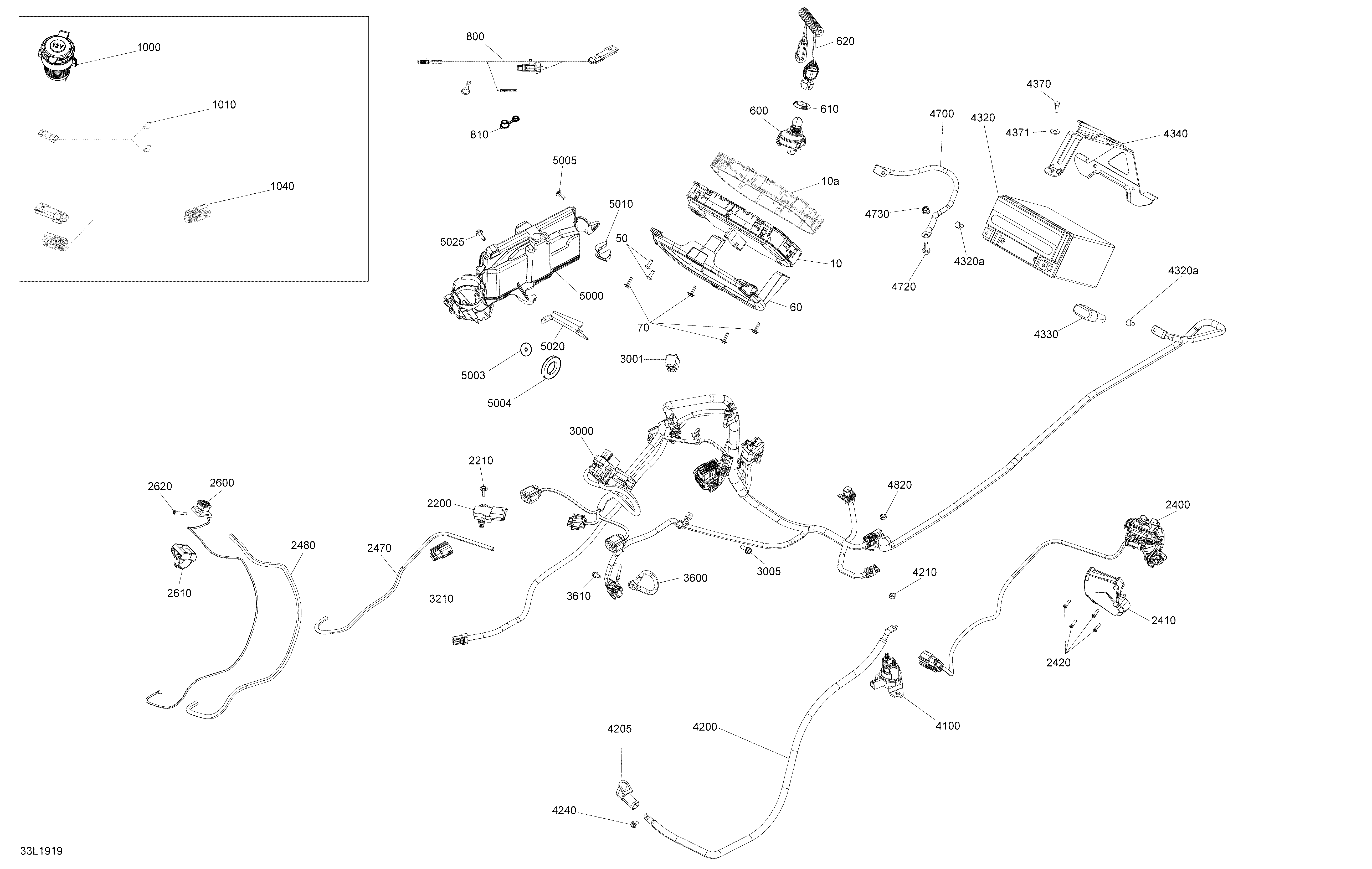

10- Electrical Xterrain - 600R E-TEC для BRP Lynx 001 - XTerrain 600R E-TEC - 2019

  • №
    Артикул
    Название
  • 10
    515178456 Indicator
    Indicator
  • 50
    250000577 Torx Truss K40 X 12
    Torx Truss K40 X 12
  • 600
    515178225 DESS Switch, RFID
    DESS Switch, RFID
  • 610
    278002963 Safety Nut (DESS Switch)
    Safety Nut (DESS Switch)
  • 620
    515178288 Key
    Key
  • 800
    515178493 Heated Visor Wiring Harness
    Heated Visor Wiring Harness
  • 810
    572103300 Cap
    Cap
  • 1000
    710001248 Outlet DC
    Outlet DC
  • 1010
    515178190 Harness
    Harness
  • 1040
    515178153 Extension Harness
    Extension Harness
  • 2200
    707000995 Pressure And Temperature Sensor
    Pressure And Temperature Sensor
  • 2210
    250000725 Screw M4 X 16
    Screw M4 X 16
  • 2400
    515178381 Start Button
    Start Button
  • 2401
    515177952 Clamp
    Clamp
  • 2420
    250000671 Torx Screw
    Torx Screw
  • 2470
    415130141 Sleeve
    Sleeve
  • 2480
    415130141 Sleeve
    Sleeve
  • 2600
    515177931 Kill Switch
    Kill Switch
  • 2610
    515177310 Kill Switch Support
    Kill Switch Support
  • 2620
    250000263 Torx Screw #8-18
    Torx Screw #8-18
  • 3000
    515178550 Chassis Wiring Harness. Manuel Start
    Chassis Wiring Harness. Manuel Start
  • 3000
    515178624 Wiring Harness Chassis. Electric Start
    Wiring Harness Chassis. Electric Start
  • 3001
    515178435 Diagnostic Cap
    Diagnostic Cap
  • 3005
    250000936 Hex. Flanged Screw M6 X 16
    Hex. Flanged Screw M6 X 16
  • 3010
    515178537 Wiring Harness. Front Radiator
    Wiring Harness. Front Radiator
  • 3210
    515178177 4 Circuits Female Housing
    4 Circuits Female Housing
  • 3250
    515178462 Switch Rocker
    Switch Rocker
  • 3255
    515178463 Switch Rocker
    Switch Rocker
  • 3600
    515178248 Ground Wire
    Ground Wire
  • 3610
    250000911 Hex. Flanged Screw M5 X 16
    Hex. Flanged Screw M5 X 16
  • 4100
    278003012 Starter Relay. Electric Start
    Starter Relay. Electric Start
  • 4200
    515178110 Positive Wire. Electric Start
    Positive Wire. Electric Start
  • 4205
    710000495 Protector Cap. Electric Start
    Protector Cap. Electric Start
  • 4210
    232561414 Elastic Stop Nut M6. Electric Start
    Elastic Stop Nut M6. Electric Start
  • 4240
    207551044 Flanged Hex. Screw M5 X 10. Electric Start
    Flanged Hex. Screw M5 X 10. Electric Start
  • 4320
    415129898 Lead Battery 18 Amperes. Electric Start. Includes 4320 to 4320a
    Lead Battery 18 Amperes. Electric Start. Includes 4320 to 4320a
  • 4320a
    250000282 Battery Bolt Kit. Electric Start
    Battery Bolt Kit. Electric Start
  • 4330
    710001817 Protector Cap. Electric Start
    Protector Cap. Electric Start
  • 4340
    515177870 Battery Strip. Electric Start
    Battery Strip. Electric Start
  • 4340
    515177870 Battery Strip. Manuel Start
    Battery Strip. Manuel Start
  • 4370
    207151244 Hex. Screw M5 X 12. Electric Start
    Hex. Screw M5 X 12. Electric Start
  • 4370
    207151244 Hex. Screw M5 X 12. Manuel Start
    Hex. Screw M5 X 12. Manuel Start
  • 4371
    391301600 Washer. Manuel Start
    Washer. Manuel Start
  • 4371
    391301600 Washer. Electric Start
    Washer. Electric Start
  • 4700
    515178155 Ground Wire. Electric Start
    Ground Wire. Electric Start
  • 4720
    207661644 Hex. Flanged Screw M6 X 16. Electric Start
    Hex. Flanged Screw M6 X 16. Electric Start
  • 4730
    233261416 Elastic Flanged Nut M6 X 1.0. Electric Start
    Elastic Flanged Nut M6 X 1.0. Electric Start
  • 4820
    232561414 Elastic Stop Nut M6. Electric Start
    Elastic Stop Nut M6. Electric Start
  • 5000
    512061191 Ignition Module
    Ignition Module
  • 5003
    250200140 Washer
    Washer
  • 5004
    250200024 Rubber Washer 5 mm
    Rubber Washer 5 mm
  • 5005
    250000792 Torx Screw M5 X 20
    Torx Screw M5 X 20
  • 5010
    515178430 Rubber Stopper
    Rubber Stopper
  • 5020
    515178159 Module Support
    Module Support
  • 5025
    207651646 Hex. Flanged Screw M5 X 16
    Hex. Flanged Screw M5 X 16
