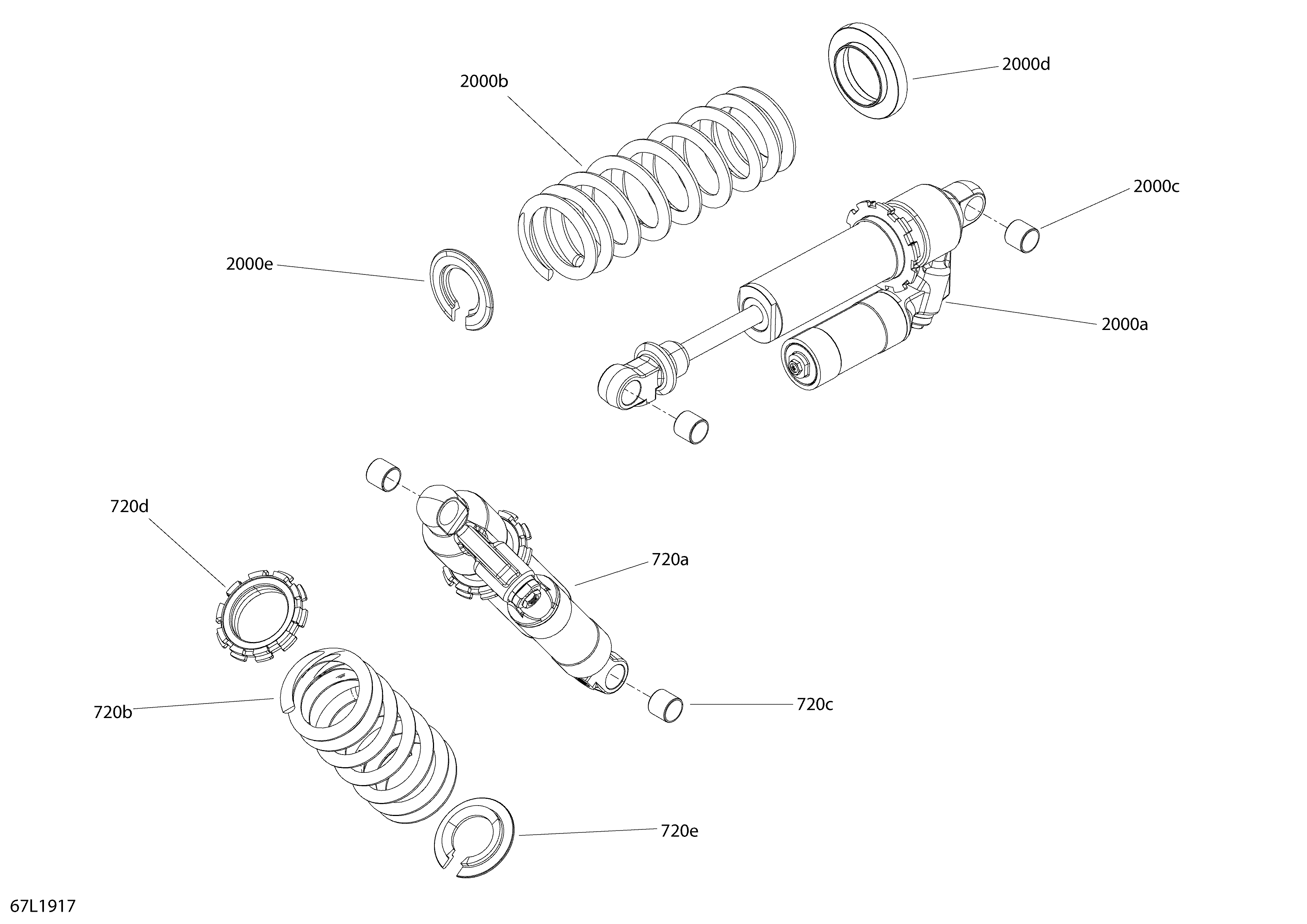

08- Rear Shocks - STD для BRP Lynx 001 - XTerrain 600R E-TEC - 2019
-
№АртикулНазвание
-
720a503195095 ShockShock
-
720b503194784 Spring 239 MM-50 N/MMSpring 239 MM-50 N/MM
-
720c503195134 Glide BearingGlide Bearing
-
720d230078 Adjusting CamAdjusting Cam
-
720e230076 Spring SeatSpring Seat
-
2000a503195097 ShockShock
-
2000b503194558 Spring 280 MM-50 N/MMSpring 280 MM-50 N/MM
-
2000c503195134 Glide BearingGlide Bearing
-
2000d230078 Adjusting CamAdjusting Cam
-
2000e230076 Spring SeatSpring Seat
